Connector Terminal Identification

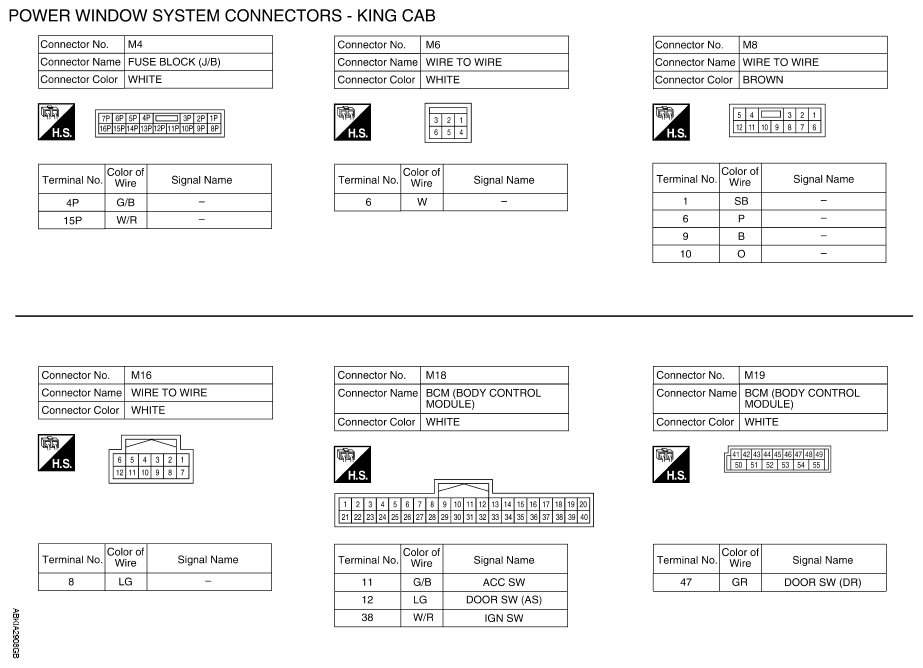

Fig 1: Power Window System Connector Terminal Identification (King Cab) (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

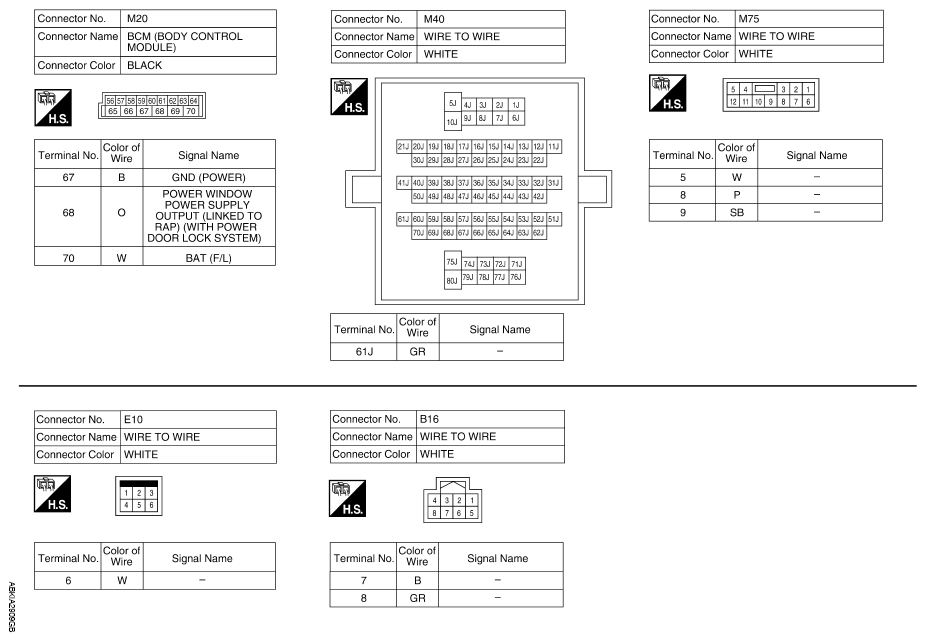

Fig 2: Power Window System Connector Terminal Identification (King Cab) (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Power Window System Connector Terminal Identification (King Cab) (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Power Window System Connector Terminal Identification (King Cab) (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Power Window System Connector Terminal Identification (King Cab) (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Power Window System Connector Terminal Identification (King Cab) (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

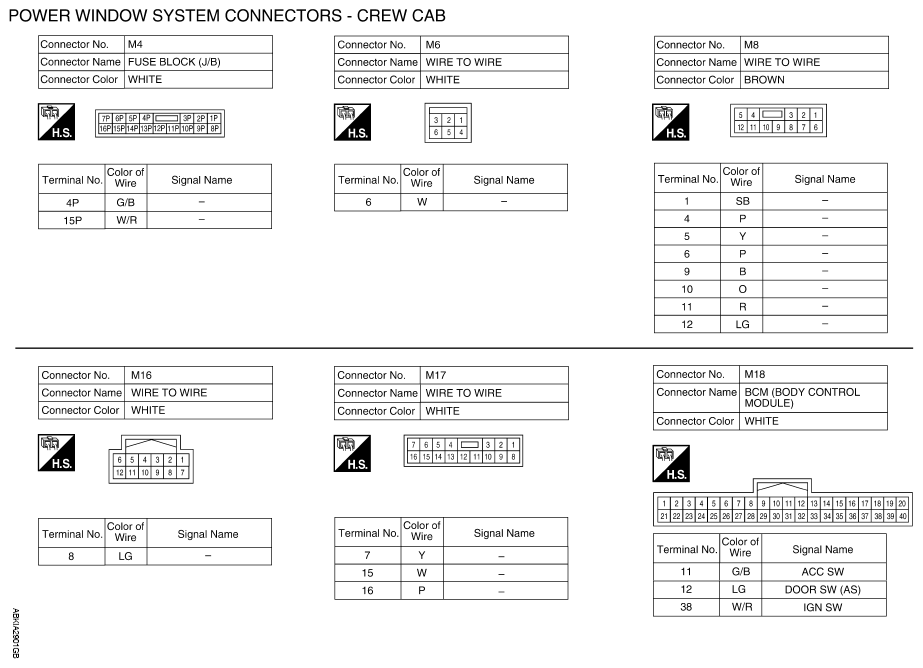

Fig 1: Power Window System Connector Terminal Identification (Crew Cab) (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Power Window System Connector Terminal Identification (Crew Cab) (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

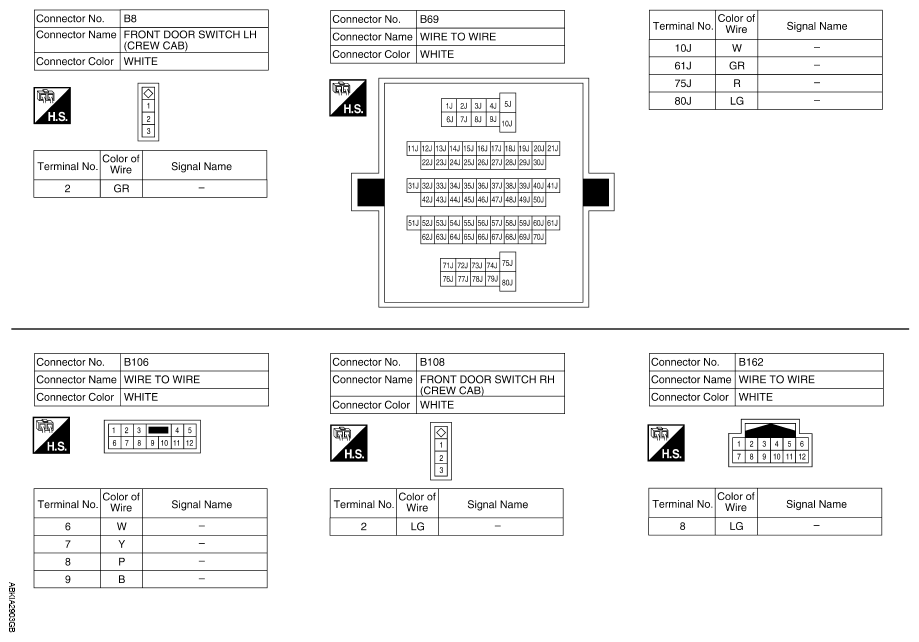

Fig 3: Power Window System Connector Terminal Identification (Crew Cab) (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

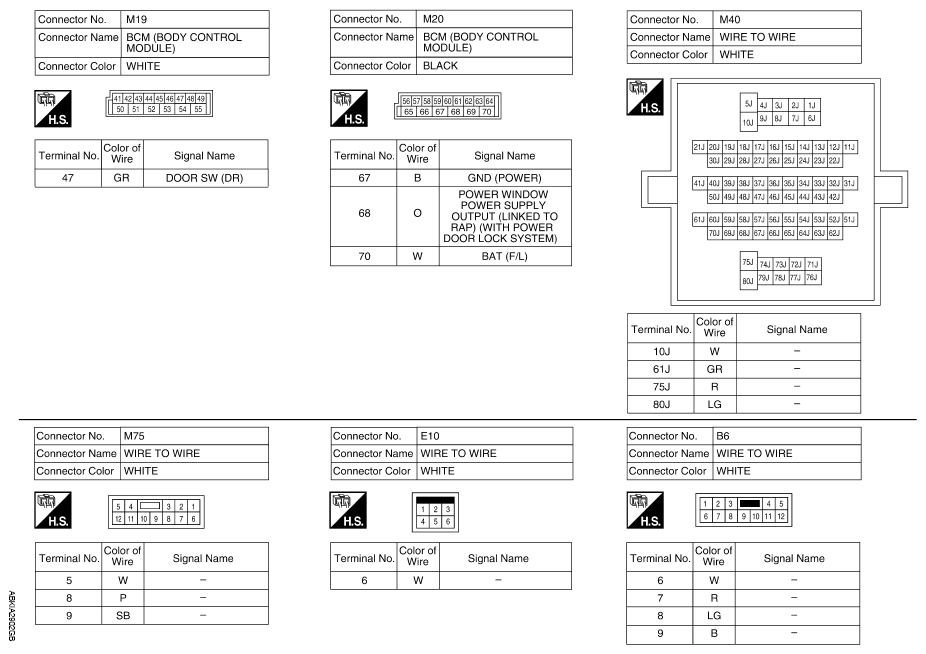

Fig 4: Power Window System Connector Terminal Identification (Crew Cab) (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

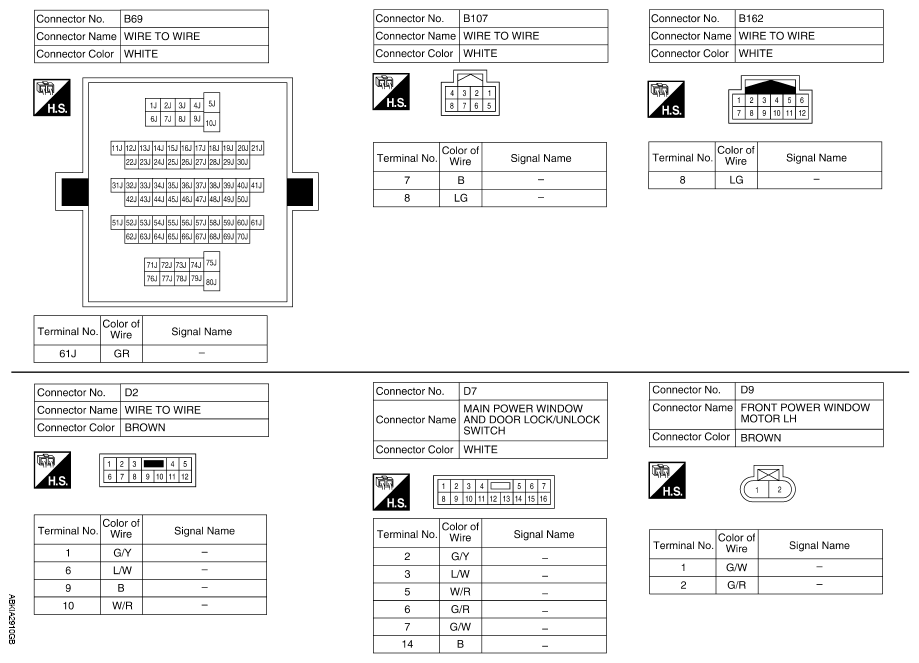

Fig 5: Power Window System Connector Terminal Identification (Crew Cab) (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Power Window System Connector Terminal Identification (Crew Cab) (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Power Window System Connector Terminal Identification (Crew Cab) (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
