ASCD Clutch Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD clutch switch harness connector.
  3. Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.
    Condition Continuity
    Clutch pedal: Fully released Should exist
    Clutch pedal: Slightly depressed Should not exist

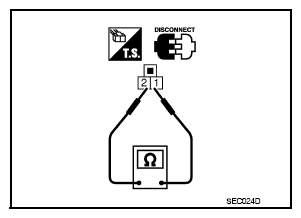

    Fig 1: Checking ASCD Clutch Switch
    G08134270Courtesy of NISSAN NORTH AMERICA, INC.

    If NG, adjust ASCD clutch switch installation, refer to "ON-VEHICLE INSPECTION AND ADJUSTMENT ", and perform step  3 again.
