Connector Terminal Identification

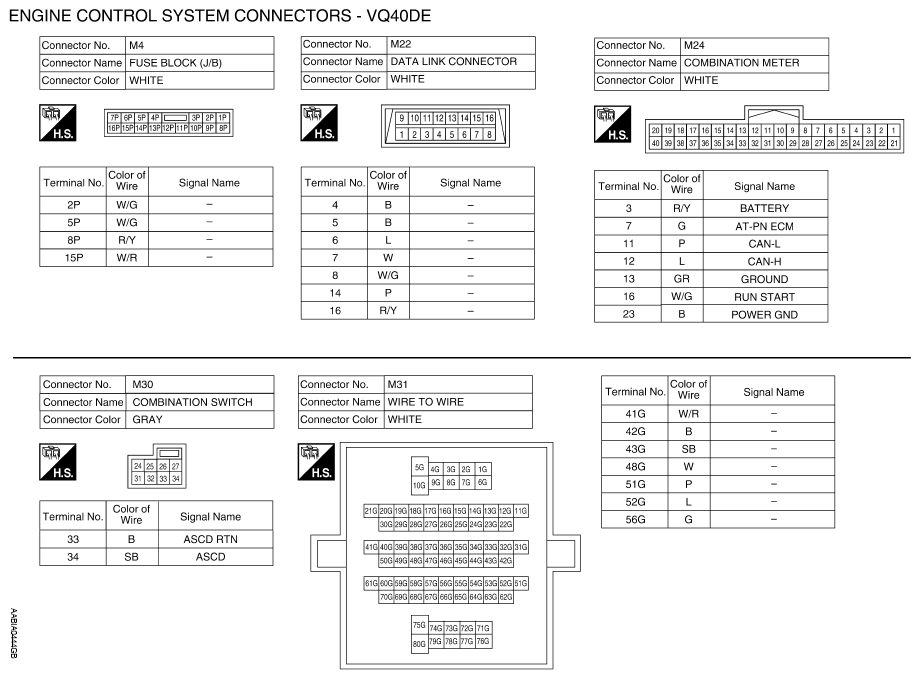

Fig 1: Engine Control System Connector Terminal Identification (VQ40DE) (1 Of 15)
G08133821Courtesy of NISSAN NORTH AMERICA, INC.

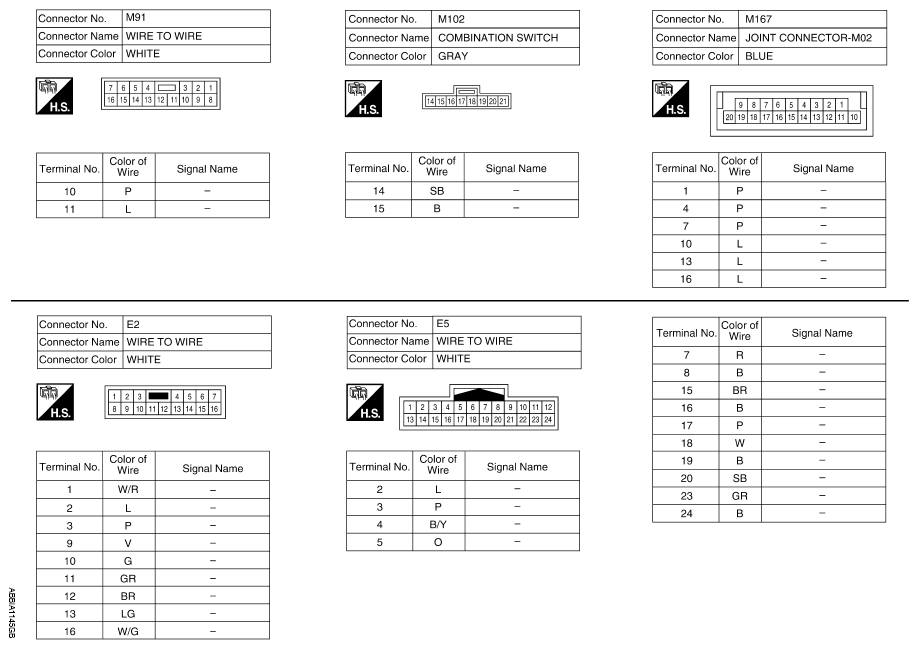

Fig 2: Engine Control System Connector Terminal Identification (VQ40DE) (2 Of 15)
G08133822Courtesy of NISSAN NORTH AMERICA, INC.

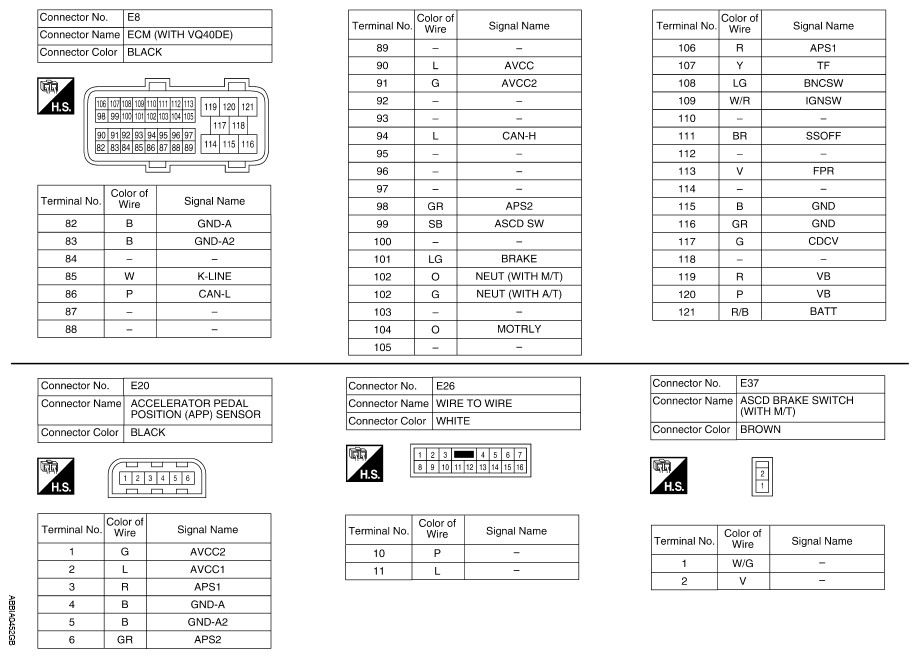

Fig 3: Engine Control System Connector Terminal Identification (VQ40DE) (3 Of 15)
G08133823Courtesy of NISSAN NORTH AMERICA, INC.

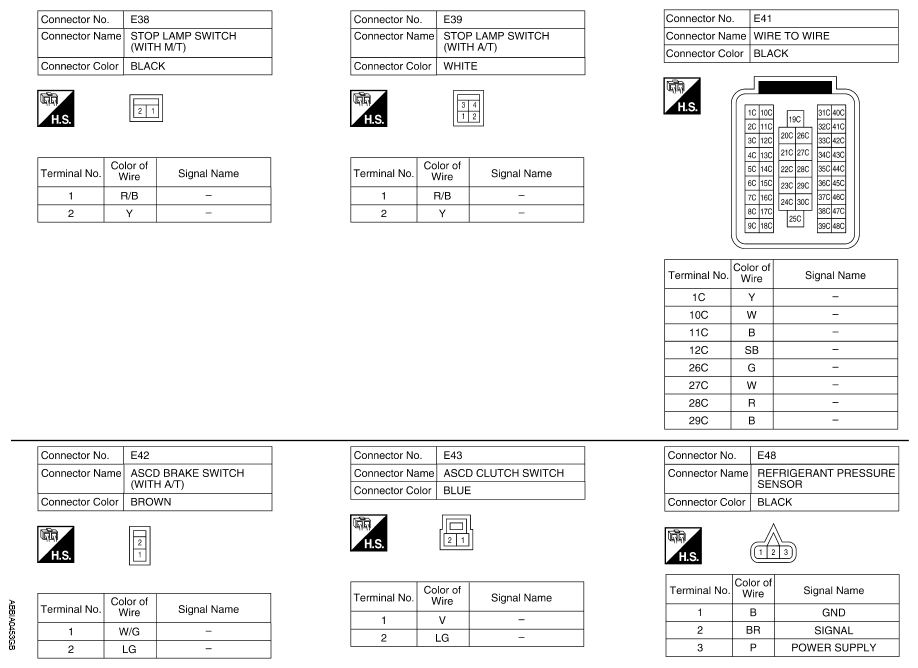

Fig 4: Engine Control System Connector Terminal Identification (VQ40DE) (4 Of 15)
G08133824Courtesy of NISSAN NORTH AMERICA, INC.

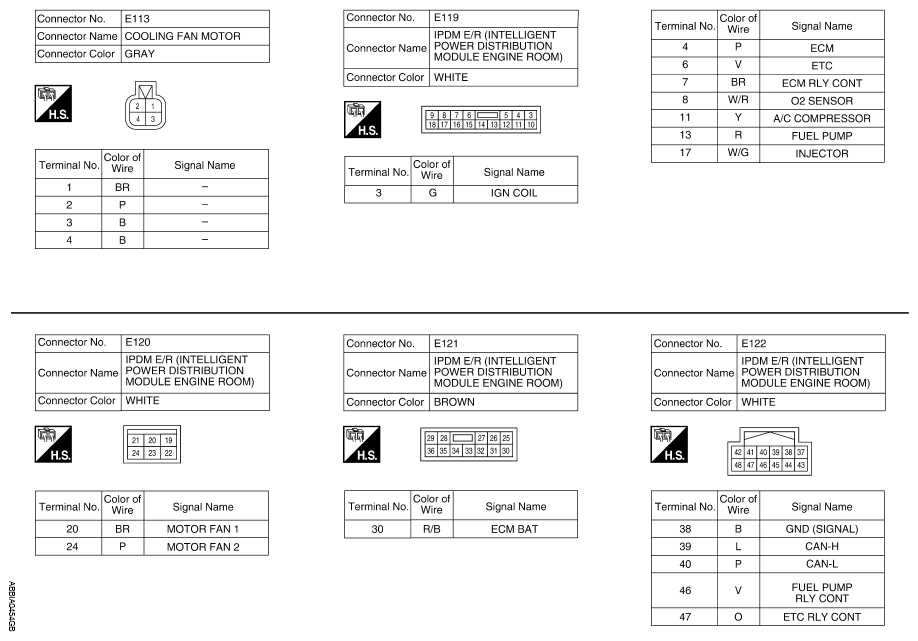

Fig 5: Engine Control System Connector Terminal Identification (VQ40DE) (5 Of 15)
G08133825Courtesy of NISSAN NORTH AMERICA, INC.

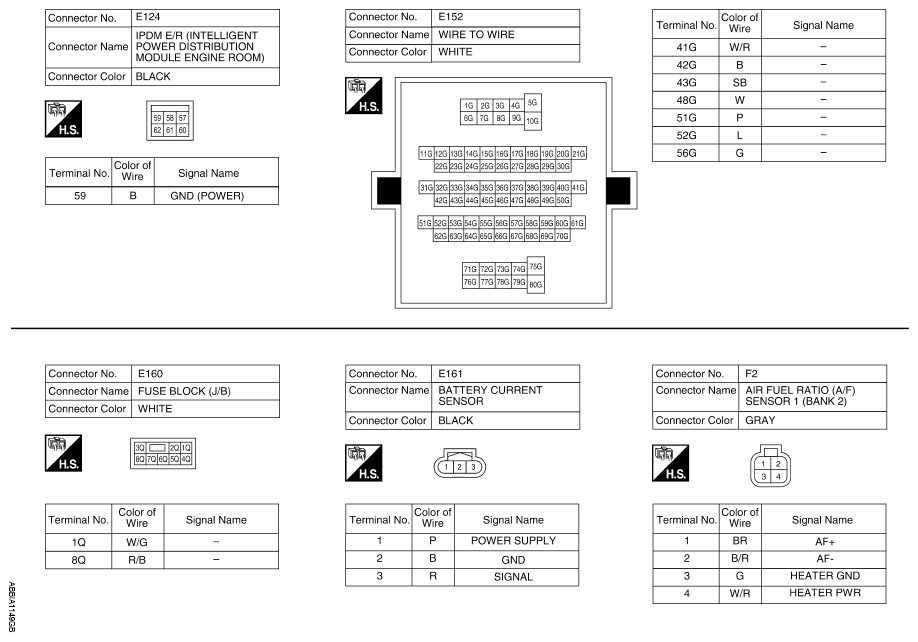

Fig 6: Engine Control System Connector Terminal Identification (VQ40DE) (6 Of 15)
G08133826Courtesy of NISSAN NORTH AMERICA, INC.

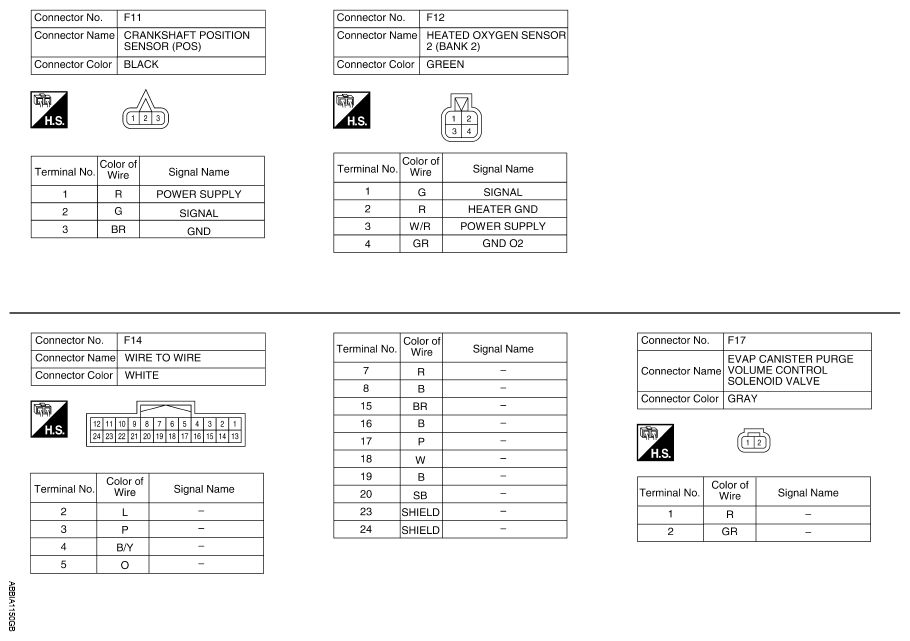

Fig 7: Engine Control System Connector Terminal Identification (VQ40DE) (7 Of 15)
G08133827Courtesy of NISSAN NORTH AMERICA, INC.

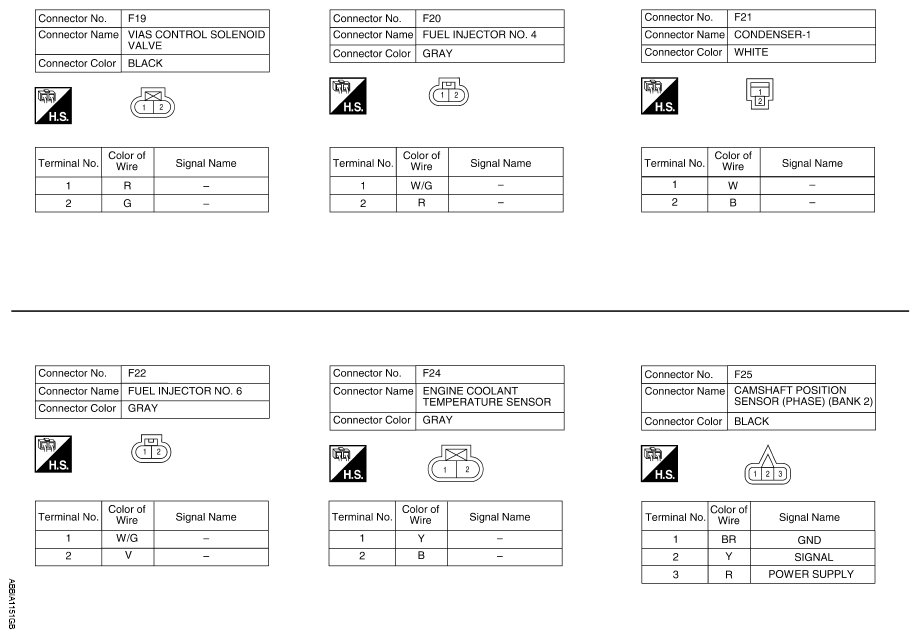

Fig 8: Engine Control System Connector Terminal Identification (VQ40DE) (8 Of 15)
G08133828Courtesy of NISSAN NORTH AMERICA, INC.

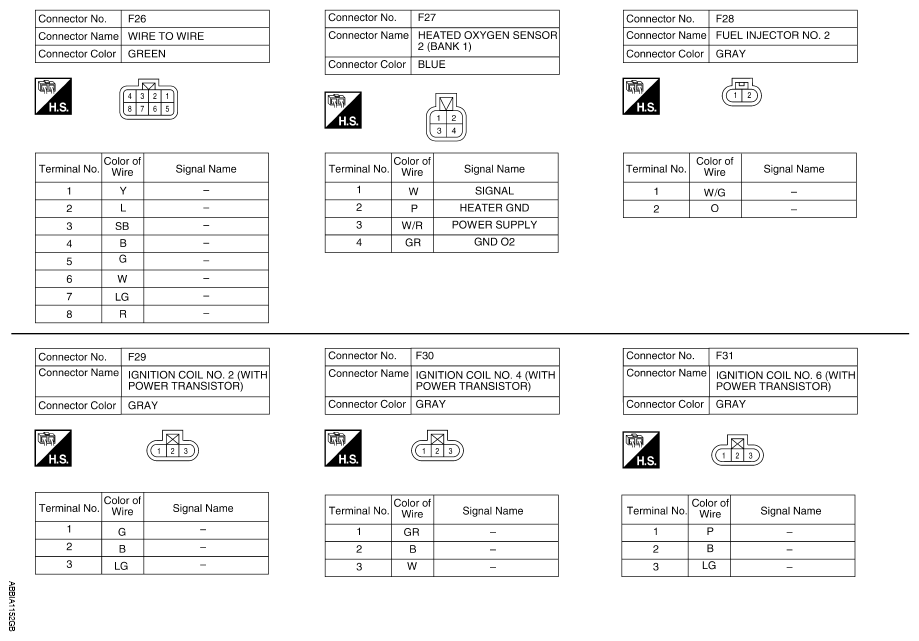

Fig 9: Engine Control System Connector Terminal Identification (VQ40DE) (9 Of 15)
G08133829Courtesy of NISSAN NORTH AMERICA, INC.

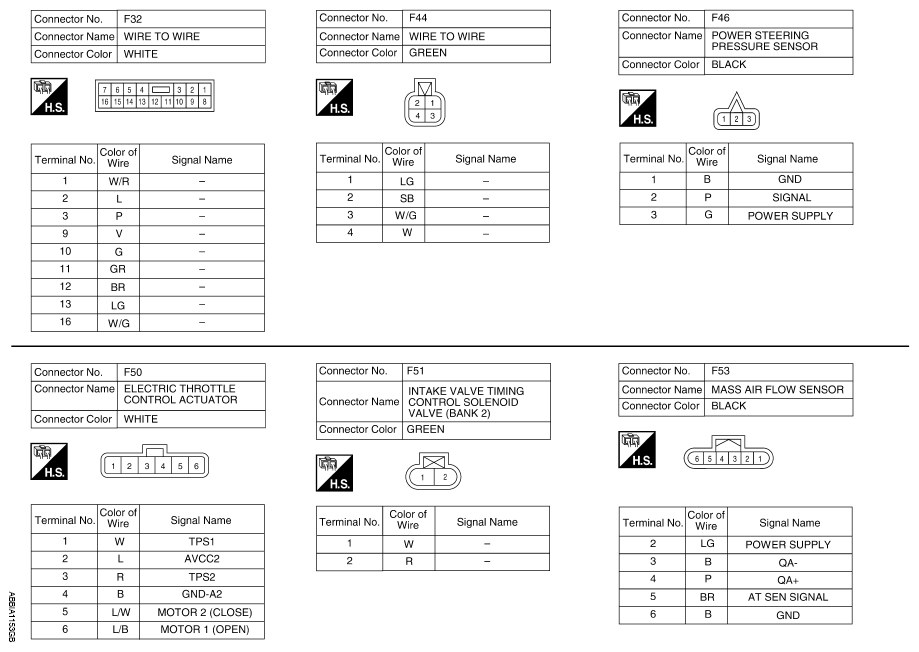

Fig 10: Engine Control System Connector Terminal Identification (VQ40DE) (10 Of 15)
G08133830Courtesy of NISSAN NORTH AMERICA, INC.

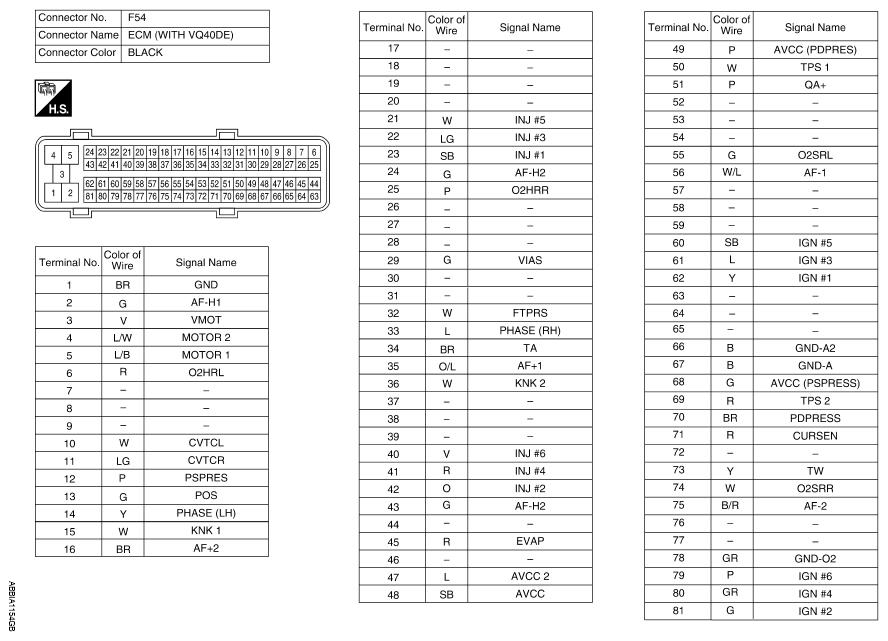

Fig 11: Engine Control System Connector Terminal Identification (VQ40DE) (11 Of 15)
G08133831Courtesy of NISSAN NORTH AMERICA, INC.

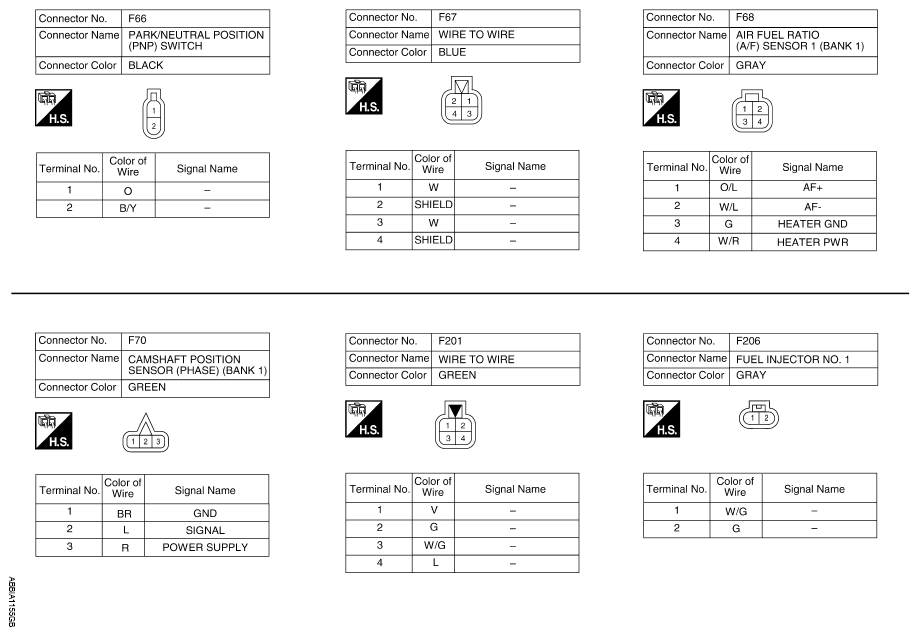

Fig 12: Engine Control System Connector Terminal Identification (VQ40DE) (12 Of 15)
G08133832Courtesy of NISSAN NORTH AMERICA, INC.

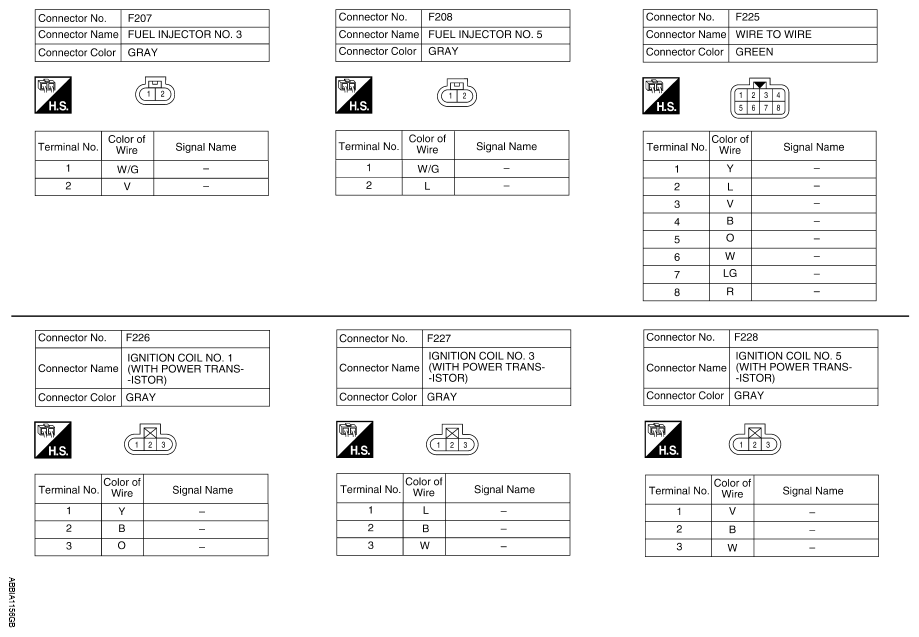

Fig 13: Engine Control System Connector Terminal Identification (VQ40DE) (13 Of 15)
G08133833Courtesy of NISSAN NORTH AMERICA, INC.

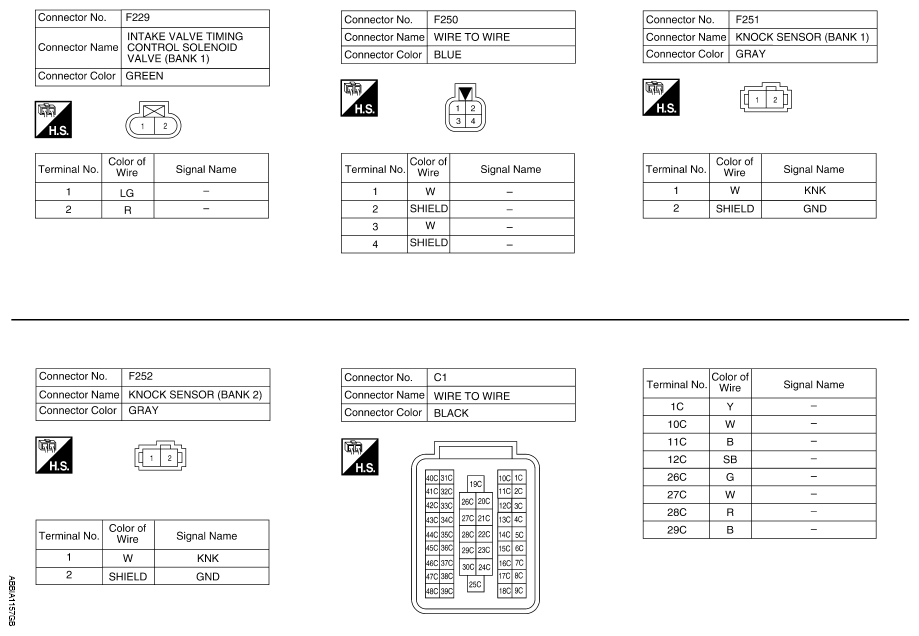

Fig 14: Engine Control System Connector Terminal Identification (VQ40DE) (14 Of 15)
G08133834Courtesy of NISSAN NORTH AMERICA, INC.

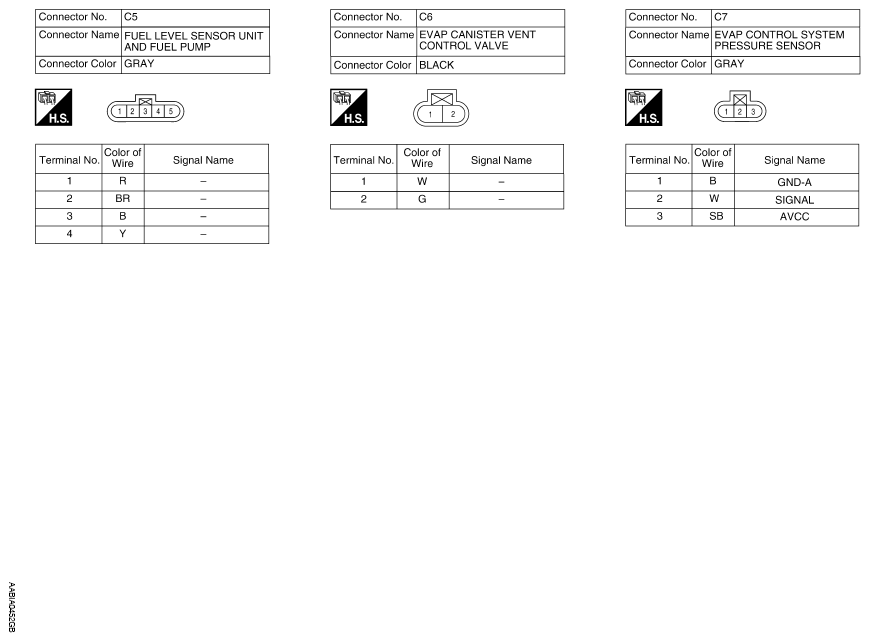

Fig 15: Engine Control System Connector Terminal Identification (VQ40DE) (15 Of 15)
G08133835Courtesy of NISSAN NORTH AMERICA, INC.
