Wiring Diagram-ENGINE CONTROL SYSTEM-

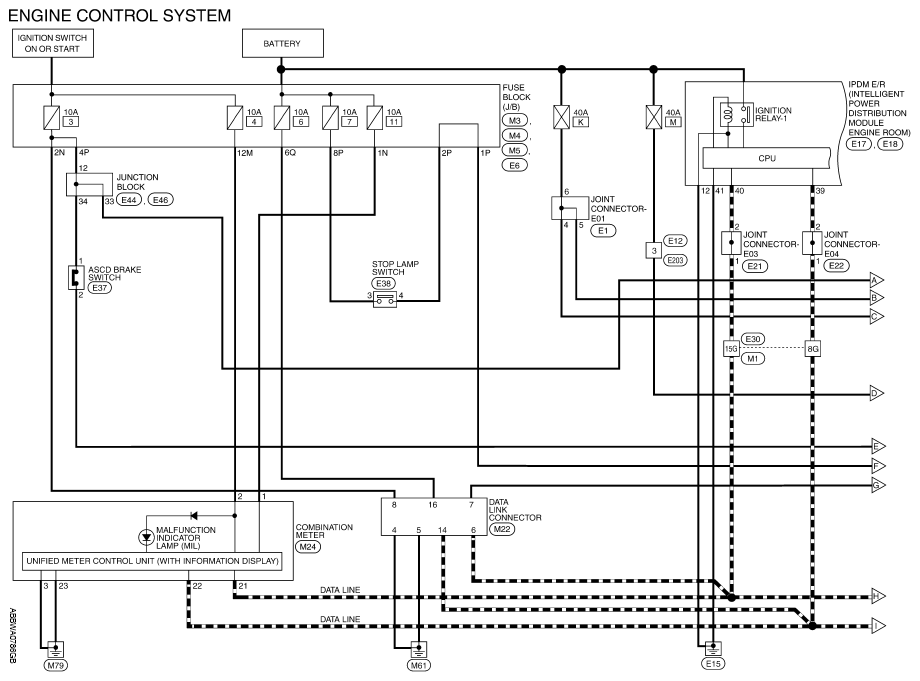

Fig 1: Engine Control System Wiring Diagram (1 Of 8)
G08146089Courtesy of NISSAN NORTH AMERICA, INC.

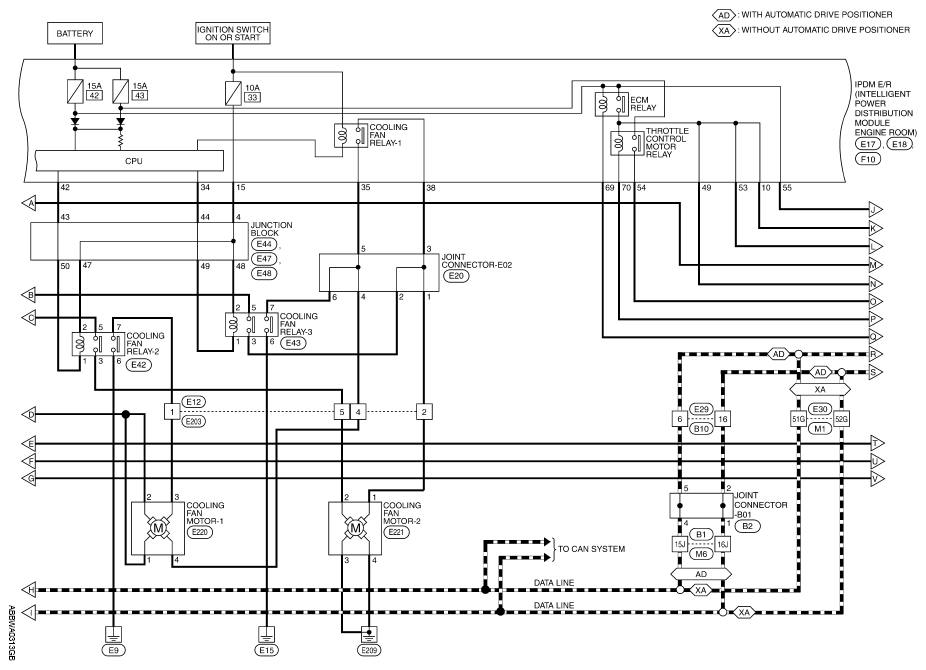

Fig 2: Engine Control System Wiring Diagram (2 Of 8)
G08146090Courtesy of NISSAN NORTH AMERICA, INC.

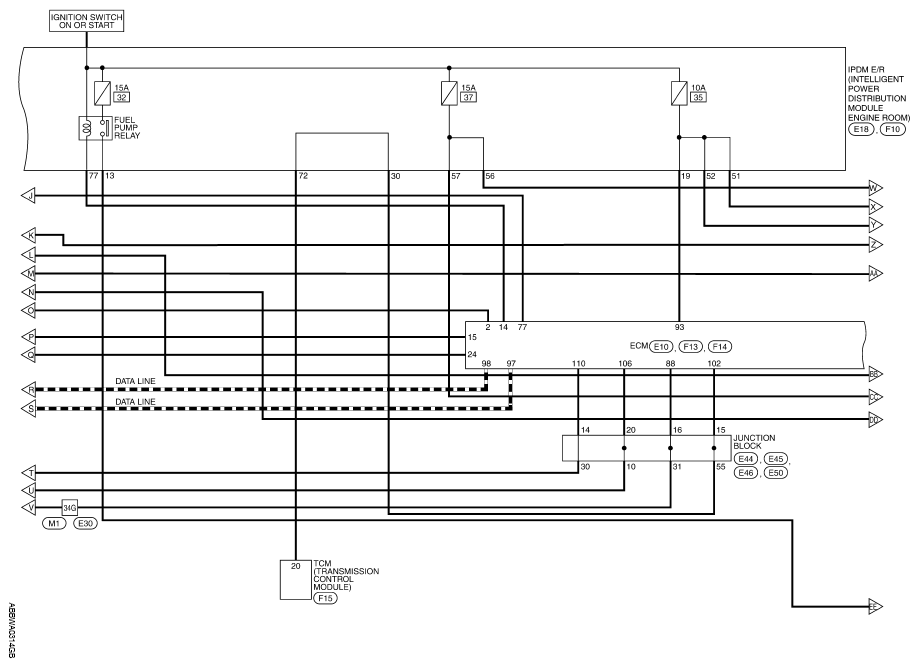

Fig 3: Engine Control System Wiring Diagram (3 Of 8)
G08146091Courtesy of NISSAN NORTH AMERICA, INC.

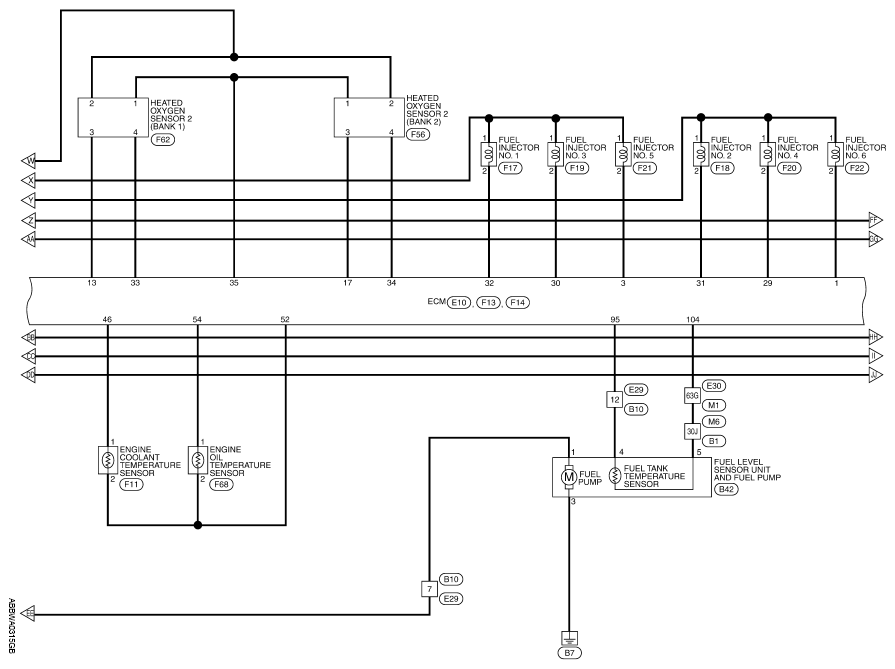

Fig 4: Engine Control System Wiring Diagram (4 Of 8)
G08146092Courtesy of NISSAN NORTH AMERICA, INC.

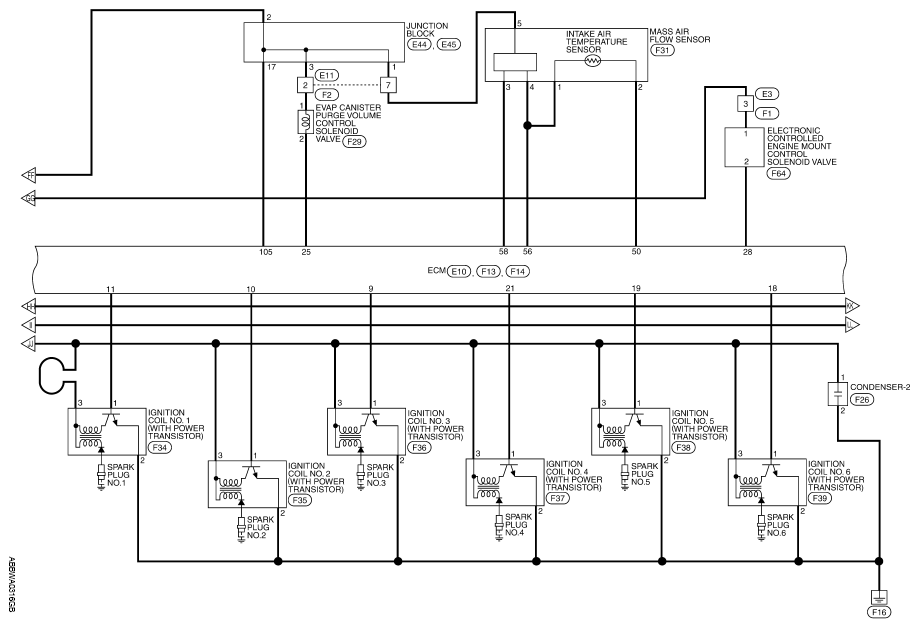

Fig 5: Engine Control System Wiring Diagram (5 Of 8)
G08146093Courtesy of NISSAN NORTH AMERICA, INC.

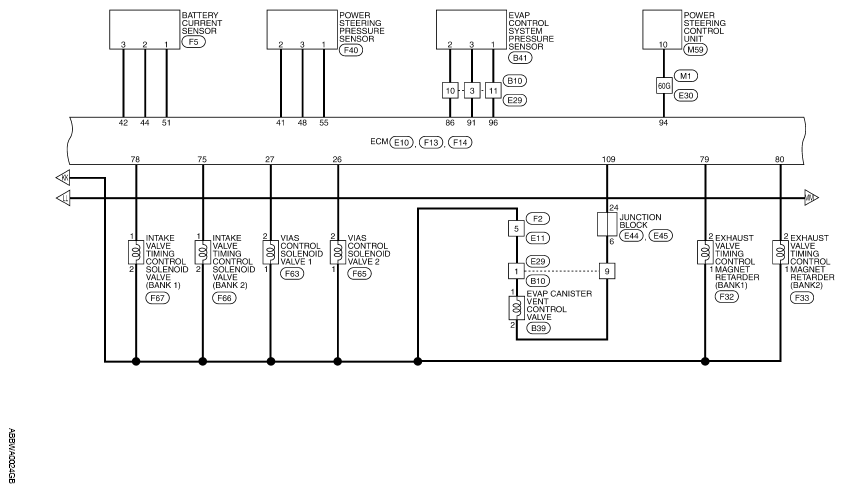

Fig 6: Engine Control System Wiring Diagram (6 Of 8)
G08146094Courtesy of NISSAN NORTH AMERICA, INC.

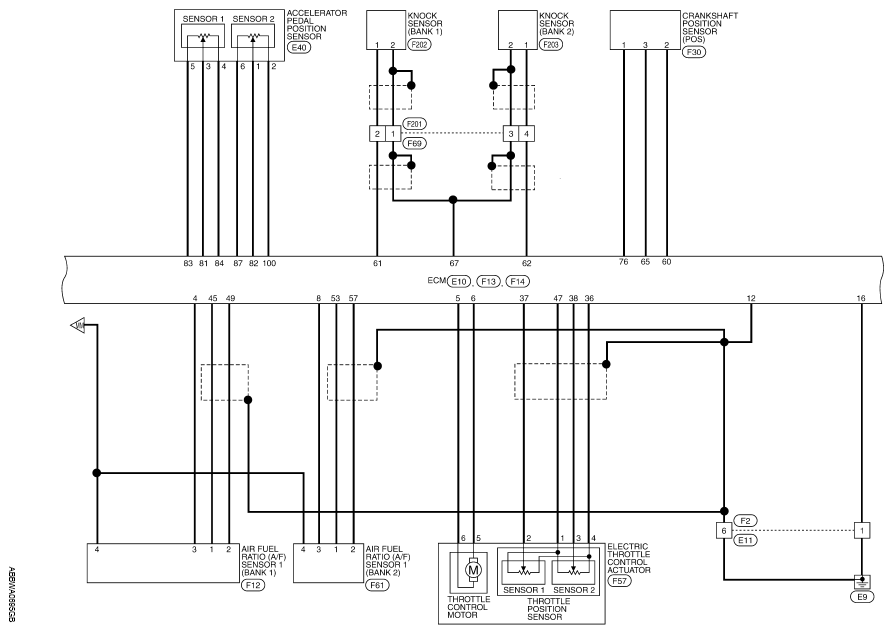

Fig 7: Engine Control System Wiring Diagram (7 Of 8)
G08146095Courtesy of NISSAN NORTH AMERICA, INC.

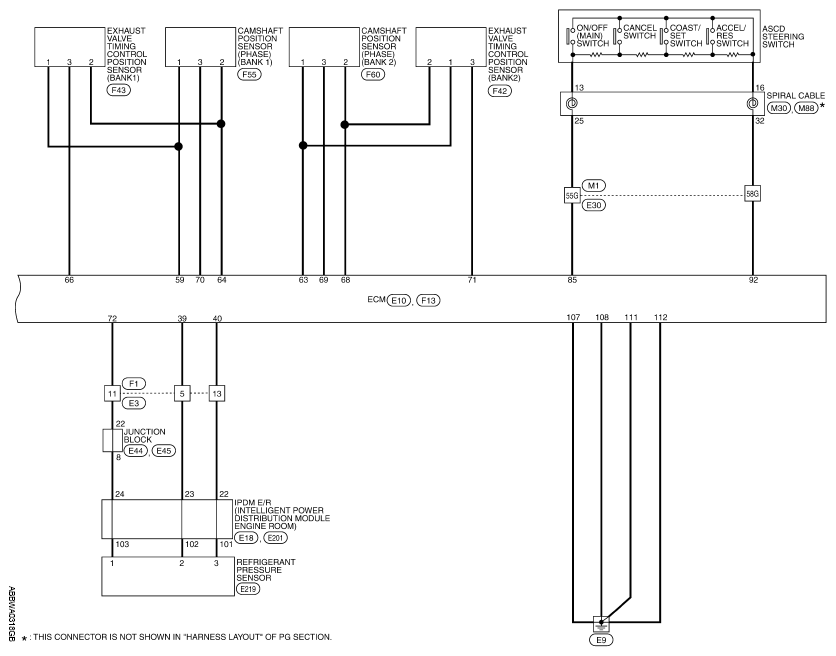

Fig 8: Engine Control System Wiring Diagram (8 Of 8)
G08146096Courtesy of NISSAN NORTH AMERICA, INC.
