Component Inspection

CHECK THROTTLE CONTROL MOTOR

Check resistance between electric throttle control actuator terminals as per the following.

Terminals	Resistance
5 and 6	Approx. 1 - 15 Ω [at 25°C (77°F)]

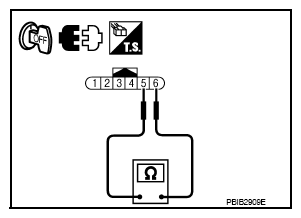

Fig 1: Checking Resistance Between Electric Throttle Control Actuator Terminals 5 And 6

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: INSPECTION END

NO: GO TO 2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator. Refer to INTAKE MANIFOLD COLLECTOR .
2. Go to "SPECIAL REPAIR REQUIREMENT ".
  : INSPECTION END
