IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to loop wires as shown.

  Fig 1: Identifying Timing Light
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

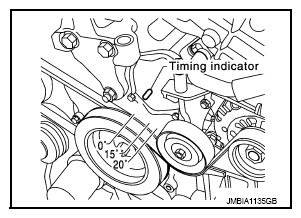

  Fig 2: Identifying Timing Indicator And Marks On Crankshaft Pulley
  Courtesy of NISSAN NORTH AMERICA, INC.

  : INSPECTION END
