Component Parts Location

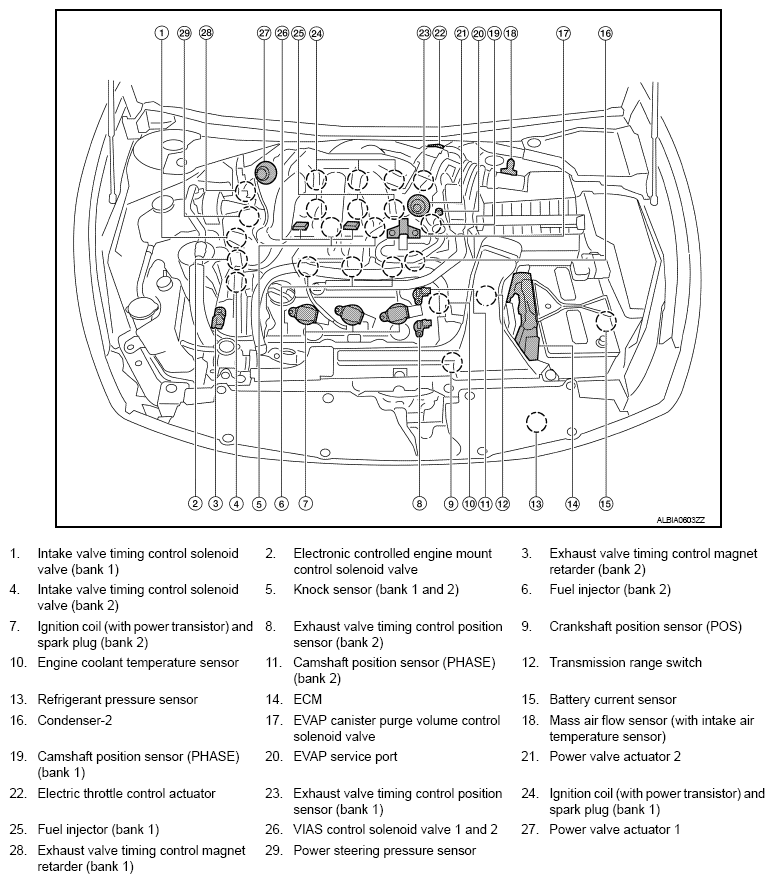

Fig 1: Intake Valve Timing Control System Component Parts Location (1 Of 7)
G08145719Courtesy of NISSAN NORTH AMERICA, INC.

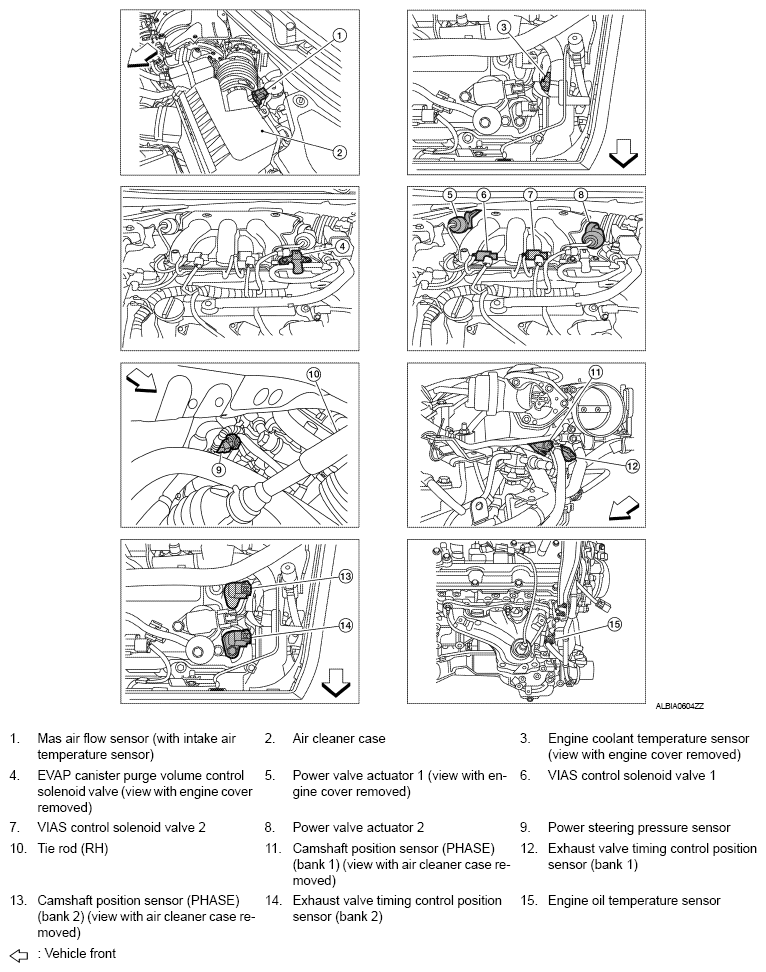

Fig 2: Intake Valve Timing Control System Component Parts Location (2 Of 7)
G08145720Courtesy of NISSAN NORTH AMERICA, INC.

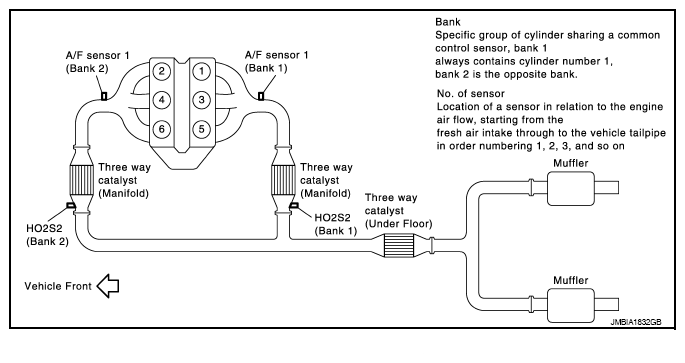

Fig 3: Intake Valve Timing Control System Component Parts Location (3 Of 7)
G08145721Courtesy of NISSAN NORTH AMERICA, INC.

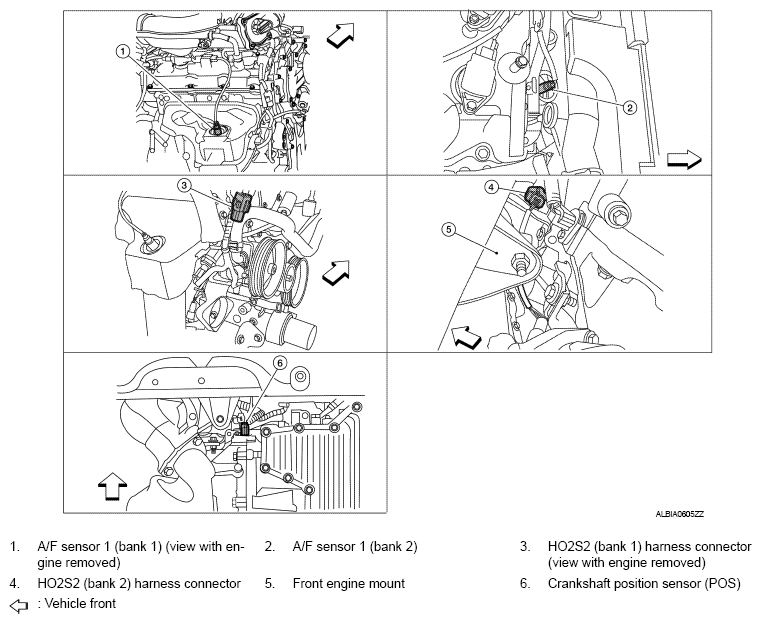

Fig 4: Intake Valve Timing Control System Component Parts Location (4 Of 7)
G08145722Courtesy of NISSAN NORTH AMERICA, INC.

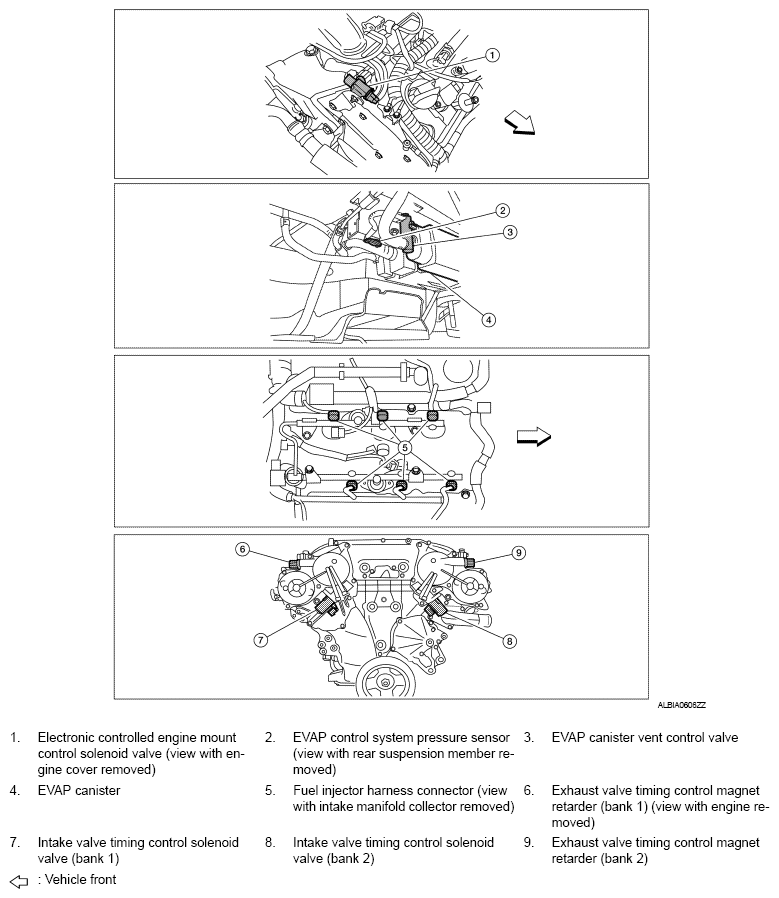

Fig 5: Intake Valve Timing Control System Component Parts Location (5 Of 7)
G08145723Courtesy of NISSAN NORTH AMERICA, INC.

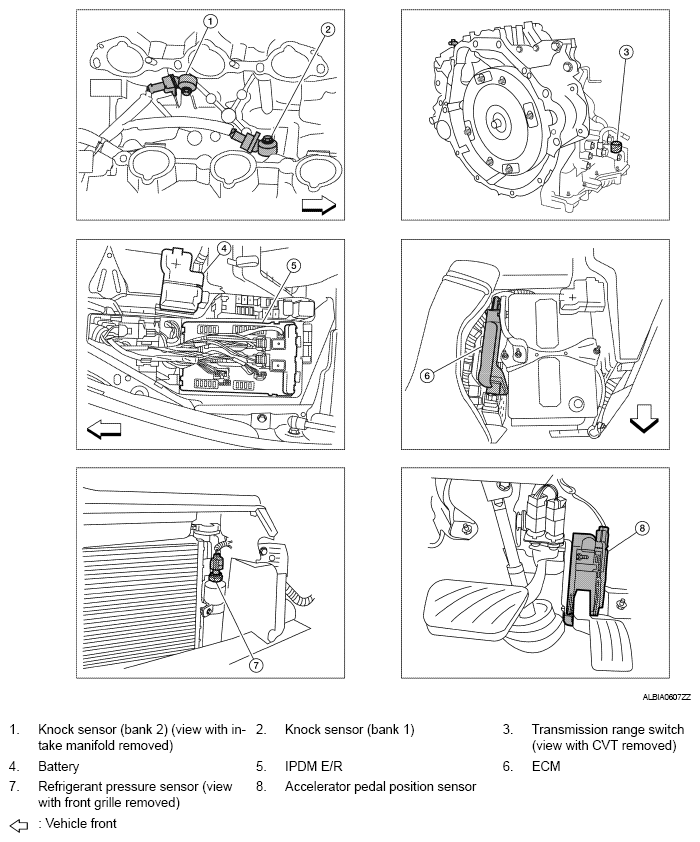

Fig 6: Intake Valve Timing Control System Component Parts Location (6 Of 7)
G08145724Courtesy of NISSAN NORTH AMERICA, INC.

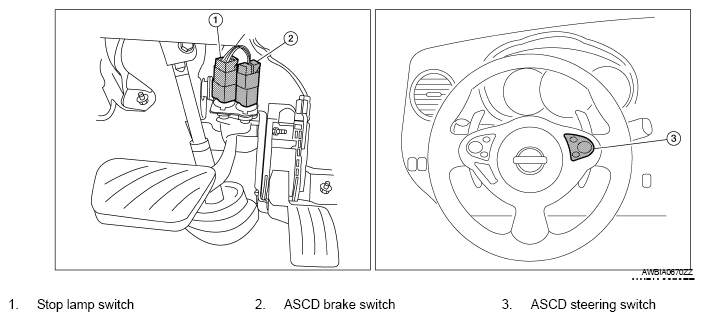

Fig 7: Intake Valve Timing Control System Component Parts Location (7 Of 7)
G08145725Courtesy of NISSAN NORTH AMERICA, INC.
