Component Parts Location

Fig 1: Variable Induction Air System Component Parts Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

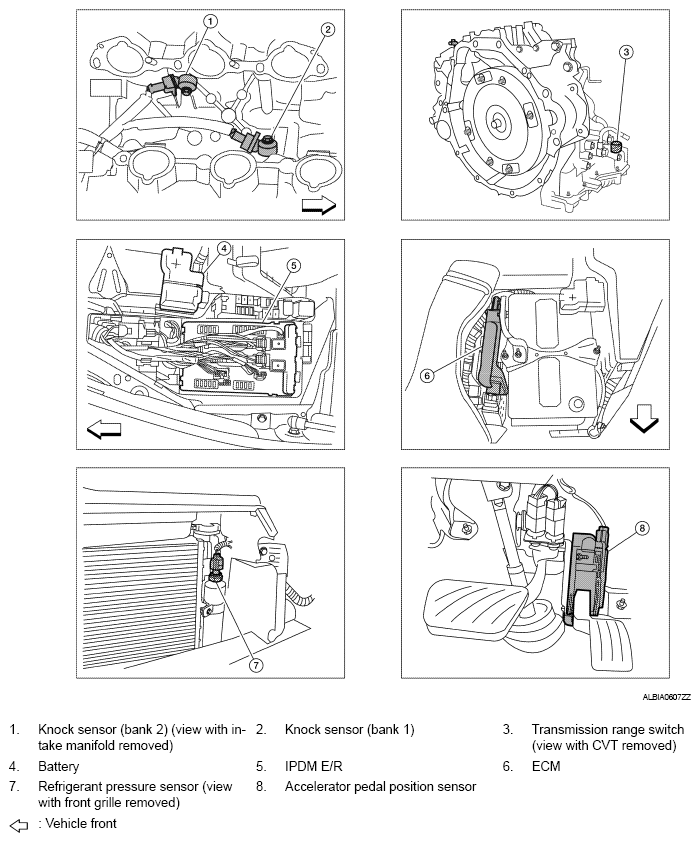

Fig 2: Variable Induction Air System Component Parts Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

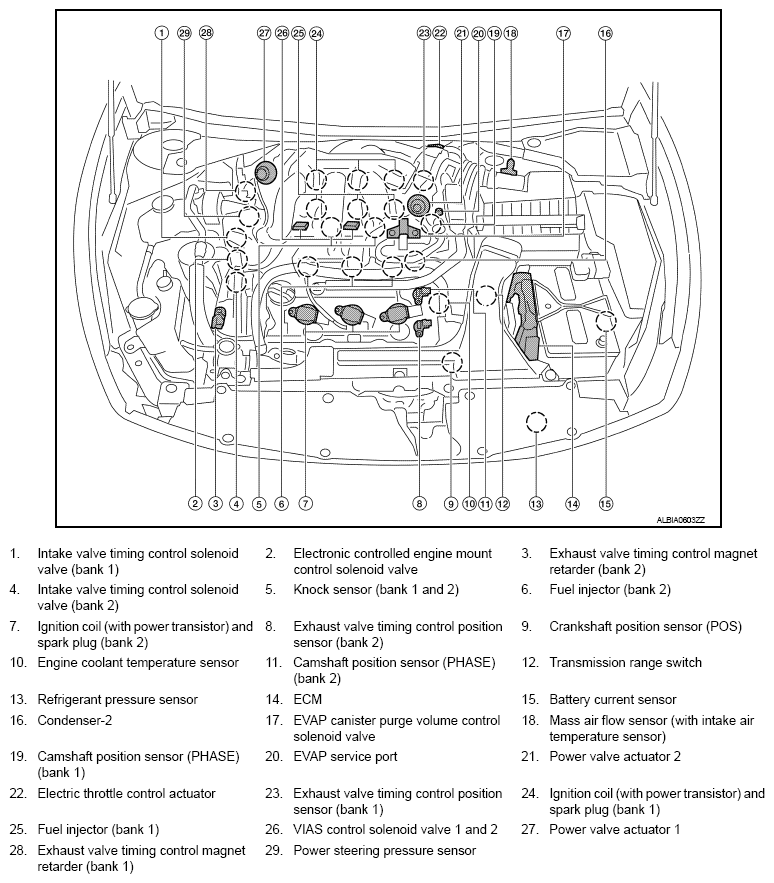

Fig 3: Variable Induction Air System Component Parts Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

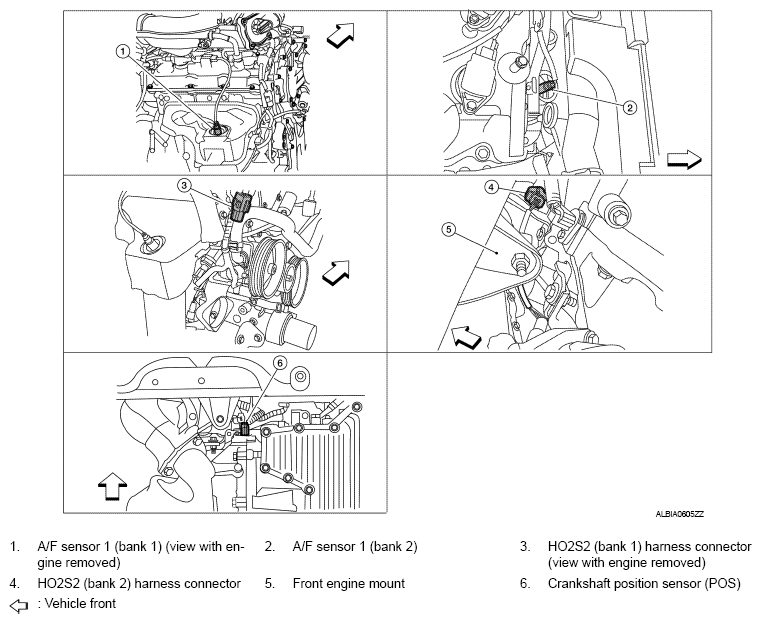

Fig 4: Variable Induction Air System Component Parts Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

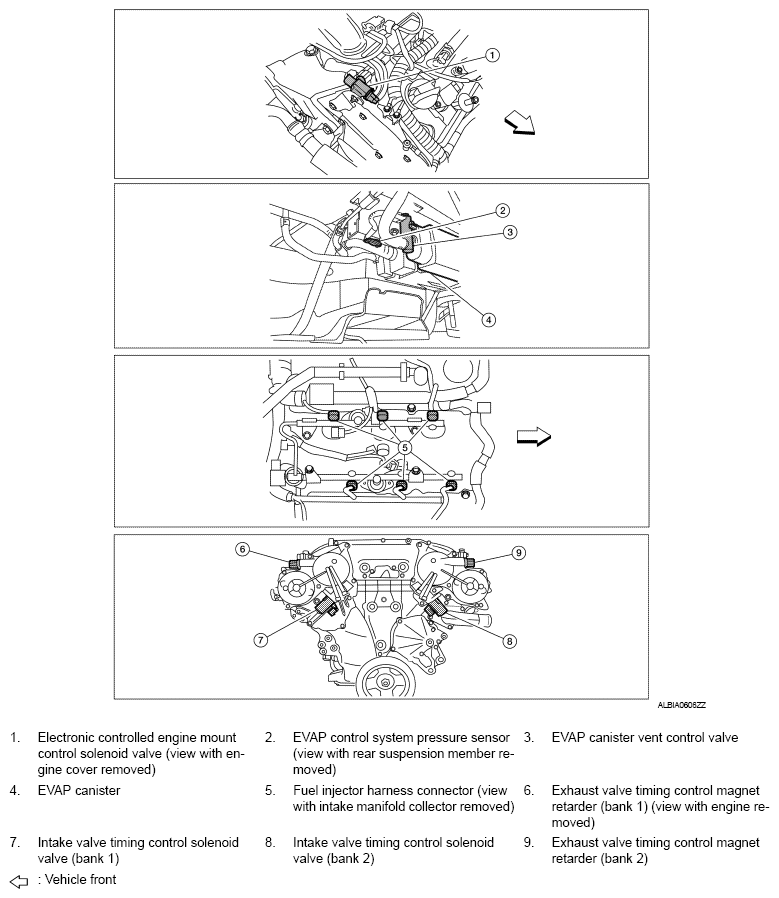

Fig 5: Variable Induction Air System Component Parts Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Variable Induction Air System Component Parts Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

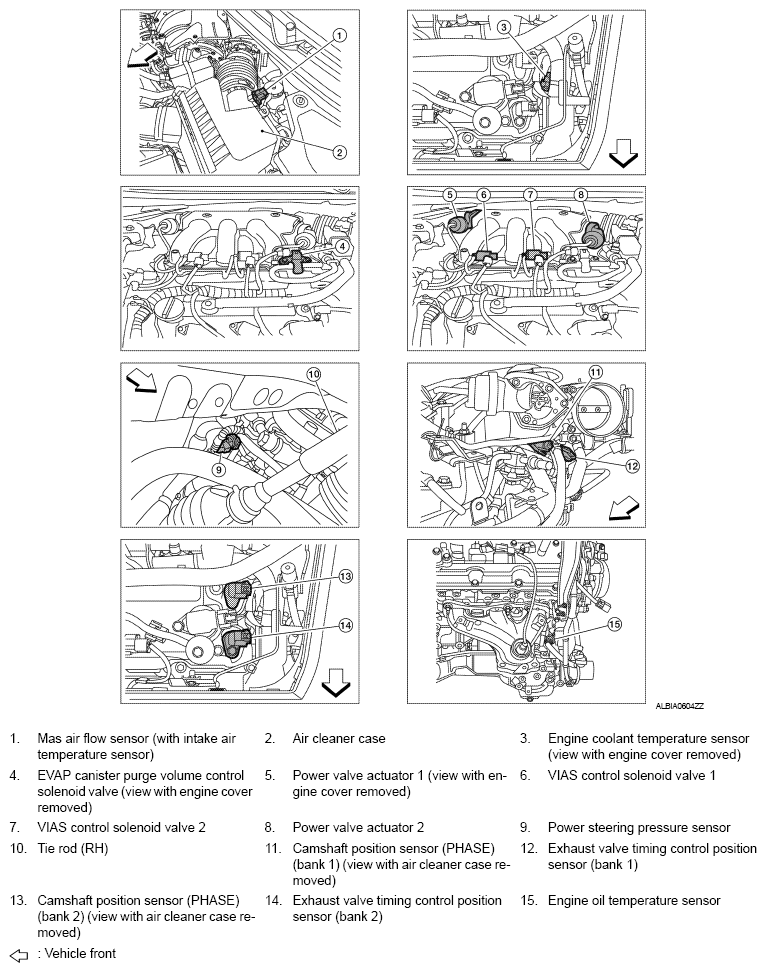

Fig 7: Variable Induction Air System Component Parts Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
