Control System Connector Terminal Identification

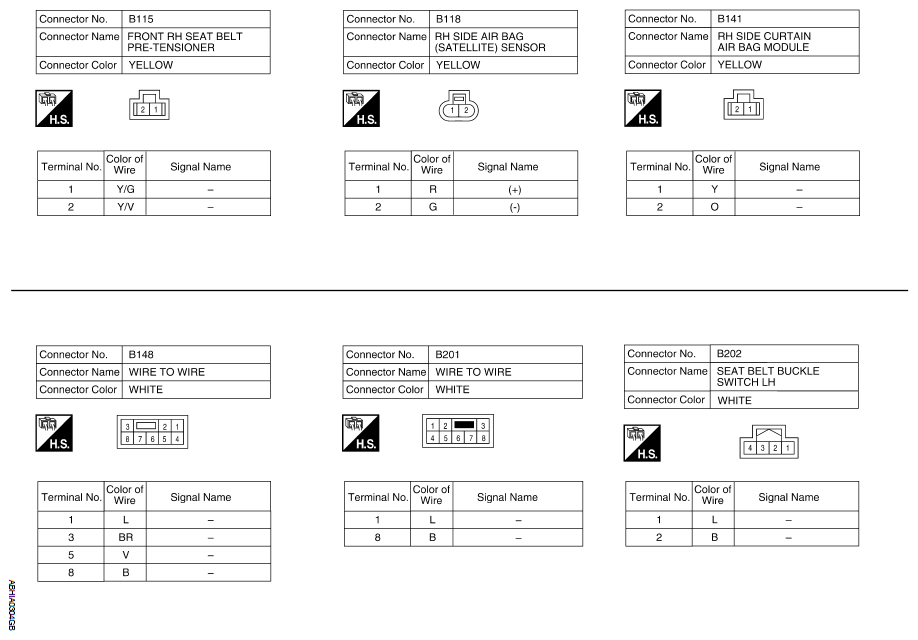

Fig 1: Identifying SRS Air Bag Control System Connectors (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

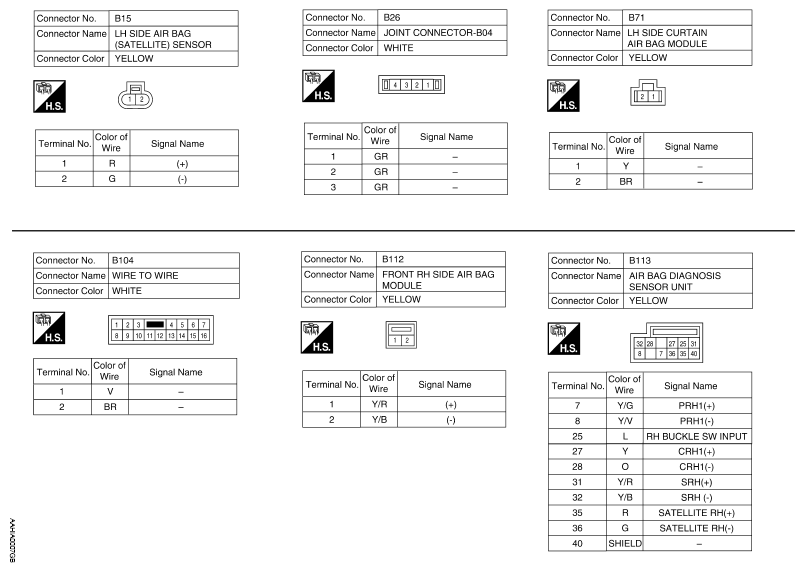

Fig 2: Identifying SRS Air Bag Control System Connectors (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

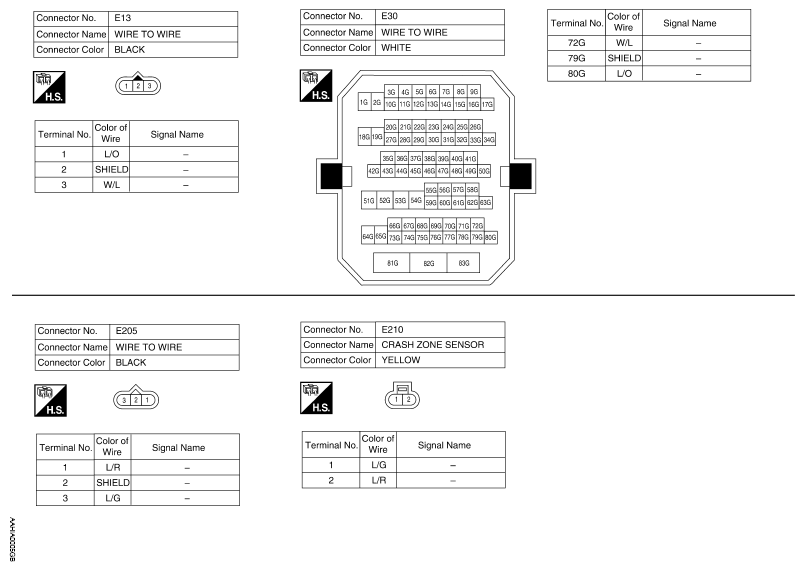

Fig 3: Identifying SRS Air Bag Control System Connectors (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

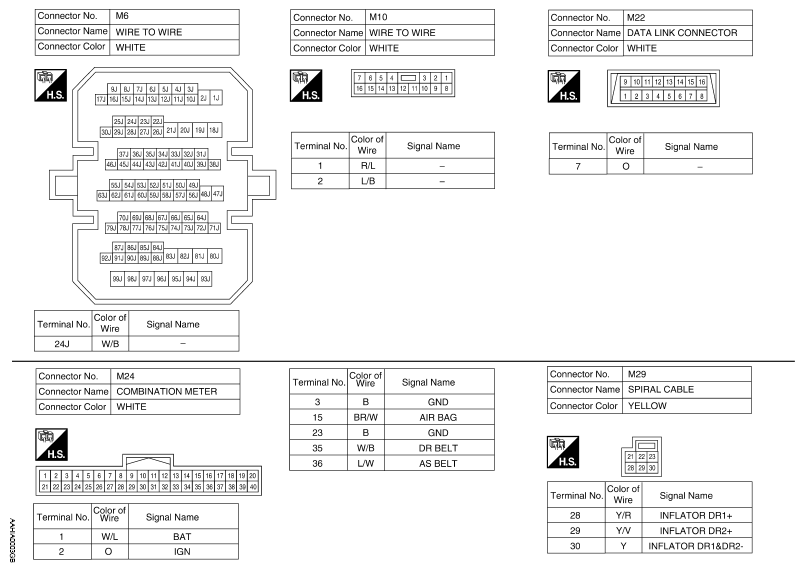

Fig 4: Identifying SRS Air Bag Control System Connectors (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

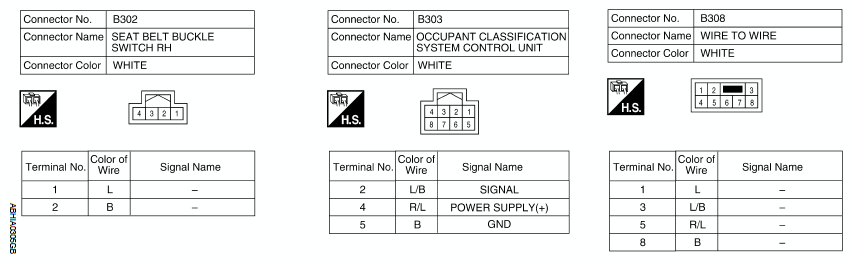

Fig 5: Identifying SRS Air Bag Control System Connectors (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

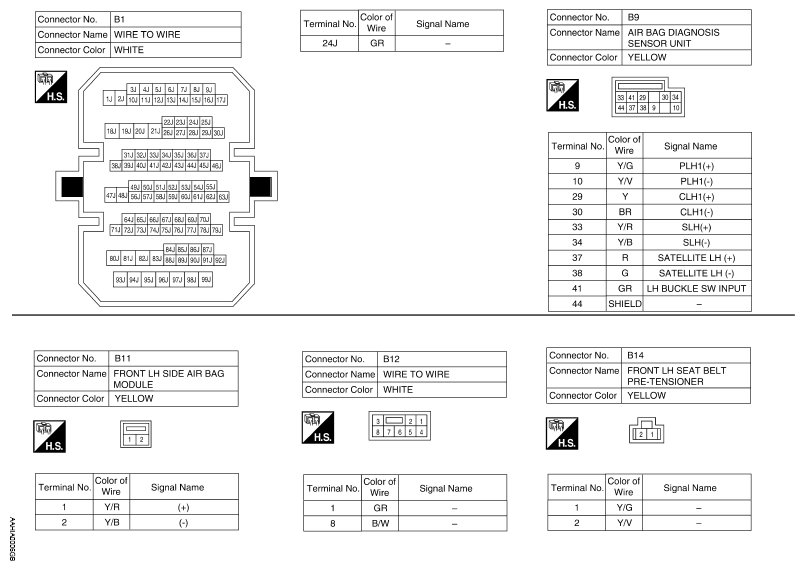

Fig 6: Identifying SRS Air Bag Control System Connectors (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

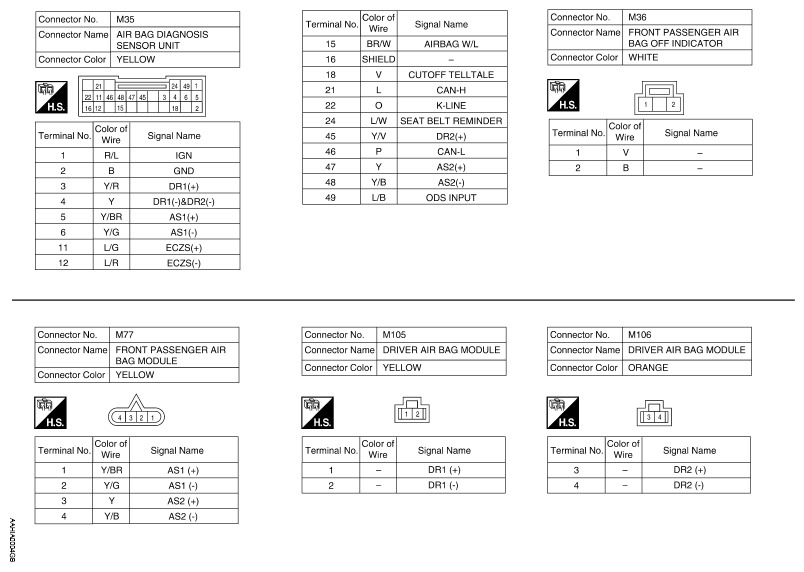

Fig 7: Identifying SRS Air Bag Control System Connectors (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying SRS Air Bag Control System Connectors (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
