Control System Connector Terminal Identification

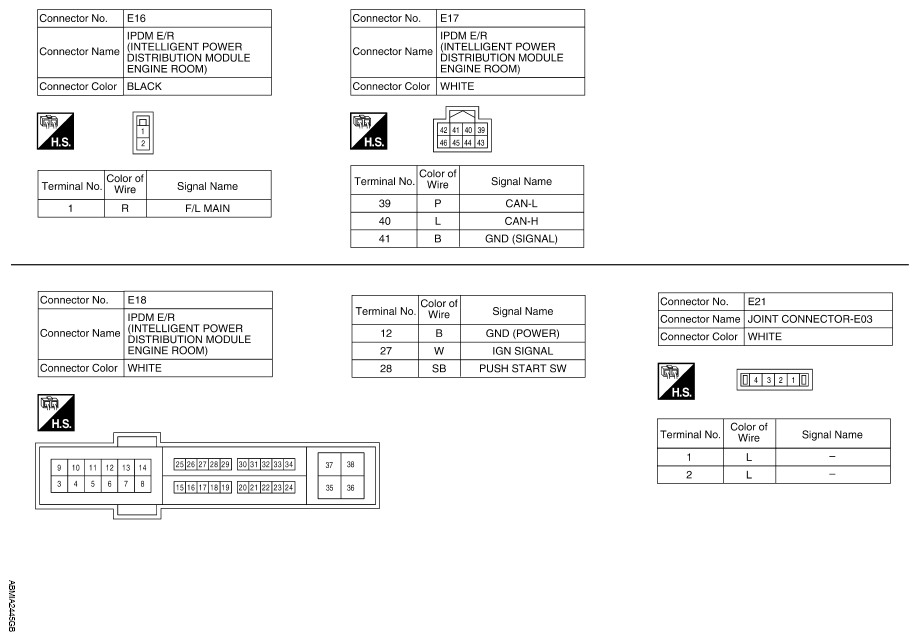

Fig 1: Identifying Power Distribution System Connectors (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

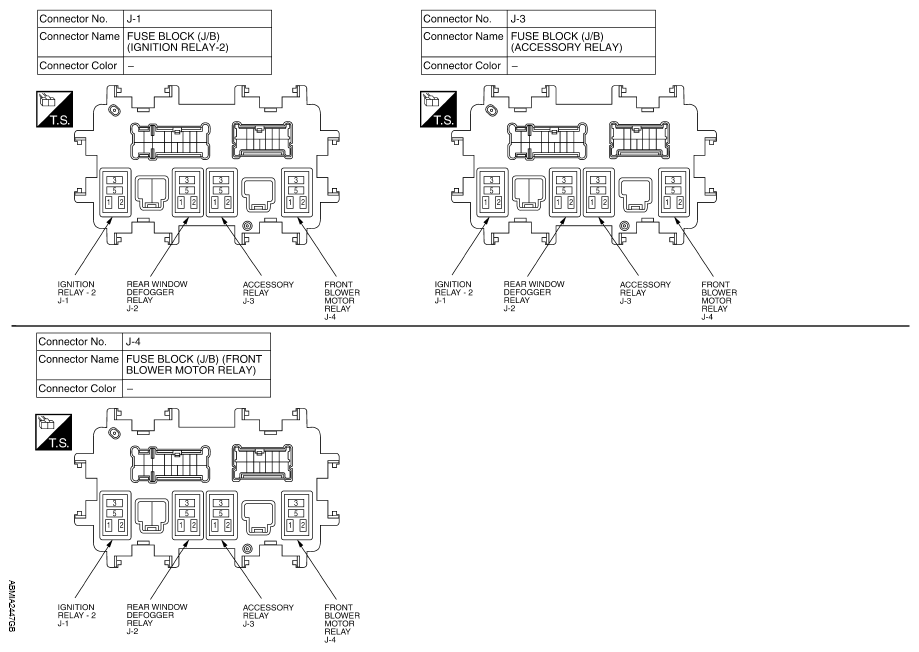

Fig 2: Identifying Power Distribution System Connectors (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

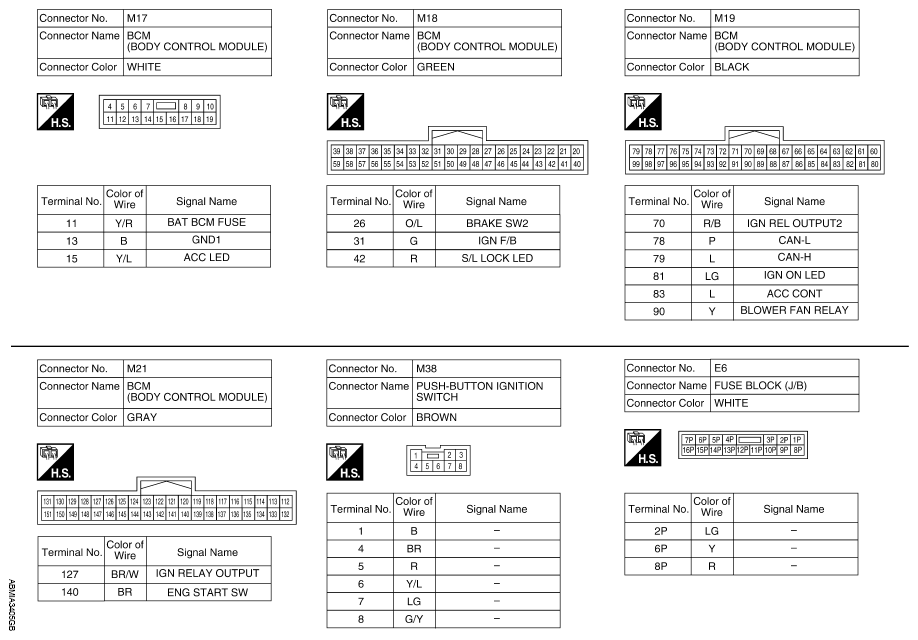

Fig 3: Identifying Power Distribution System Connectors (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

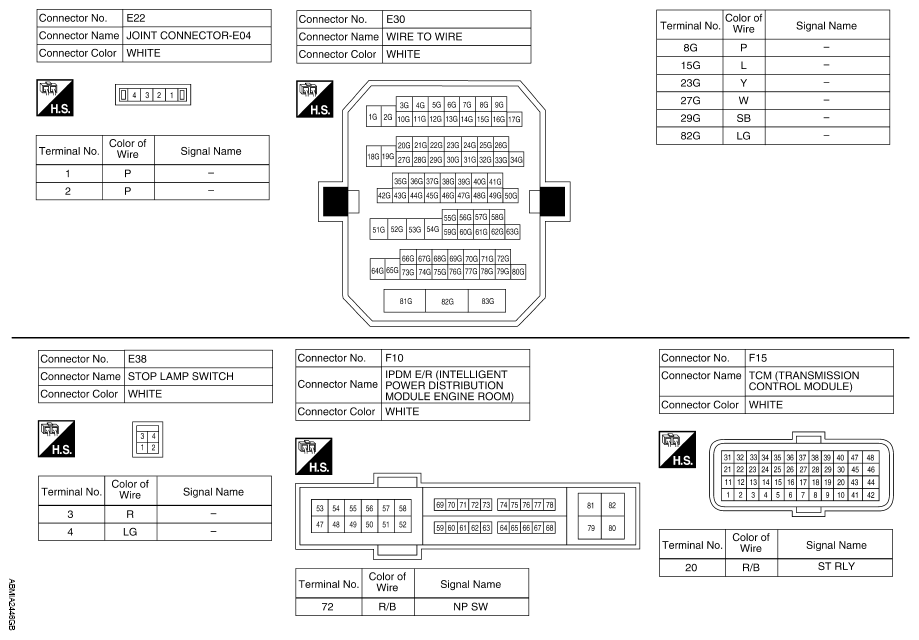

Fig 4: Identifying Power Distribution System Connectors (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

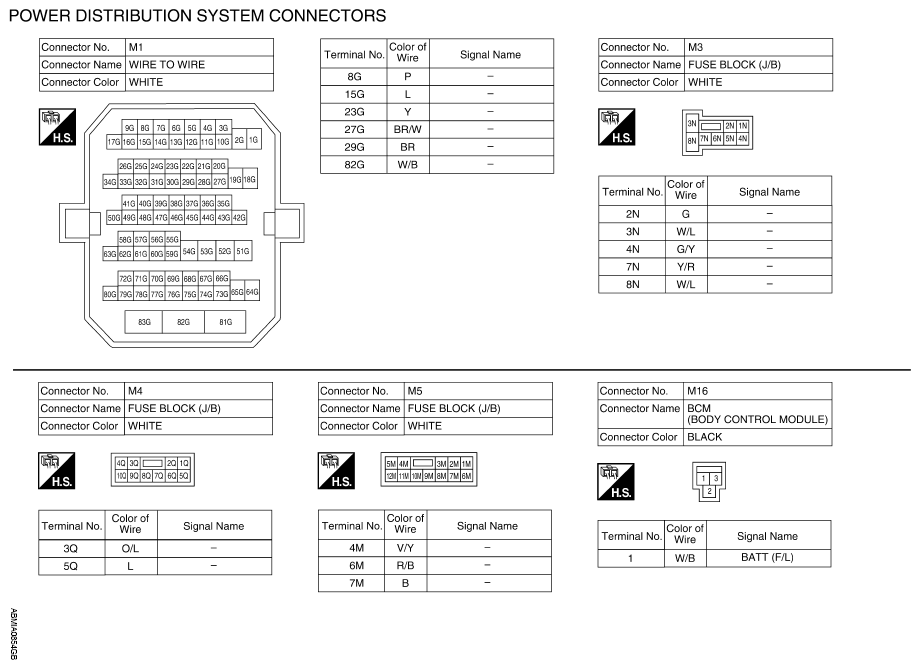

Fig 5: Identifying Power Distribution System Connectors (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
