Connector Terminal Identification

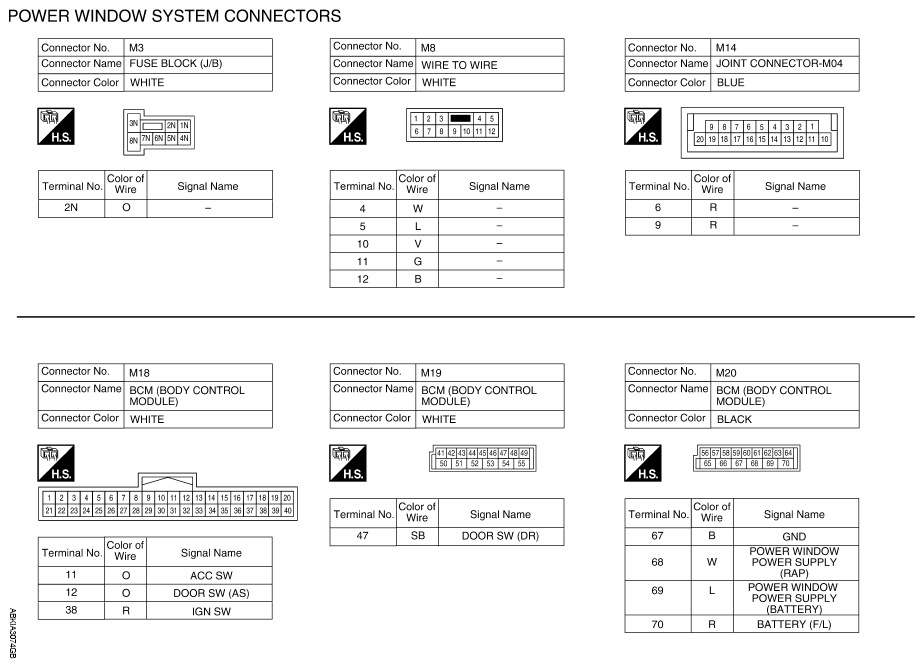

Fig 1: Identifying Power Window System Connectors (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

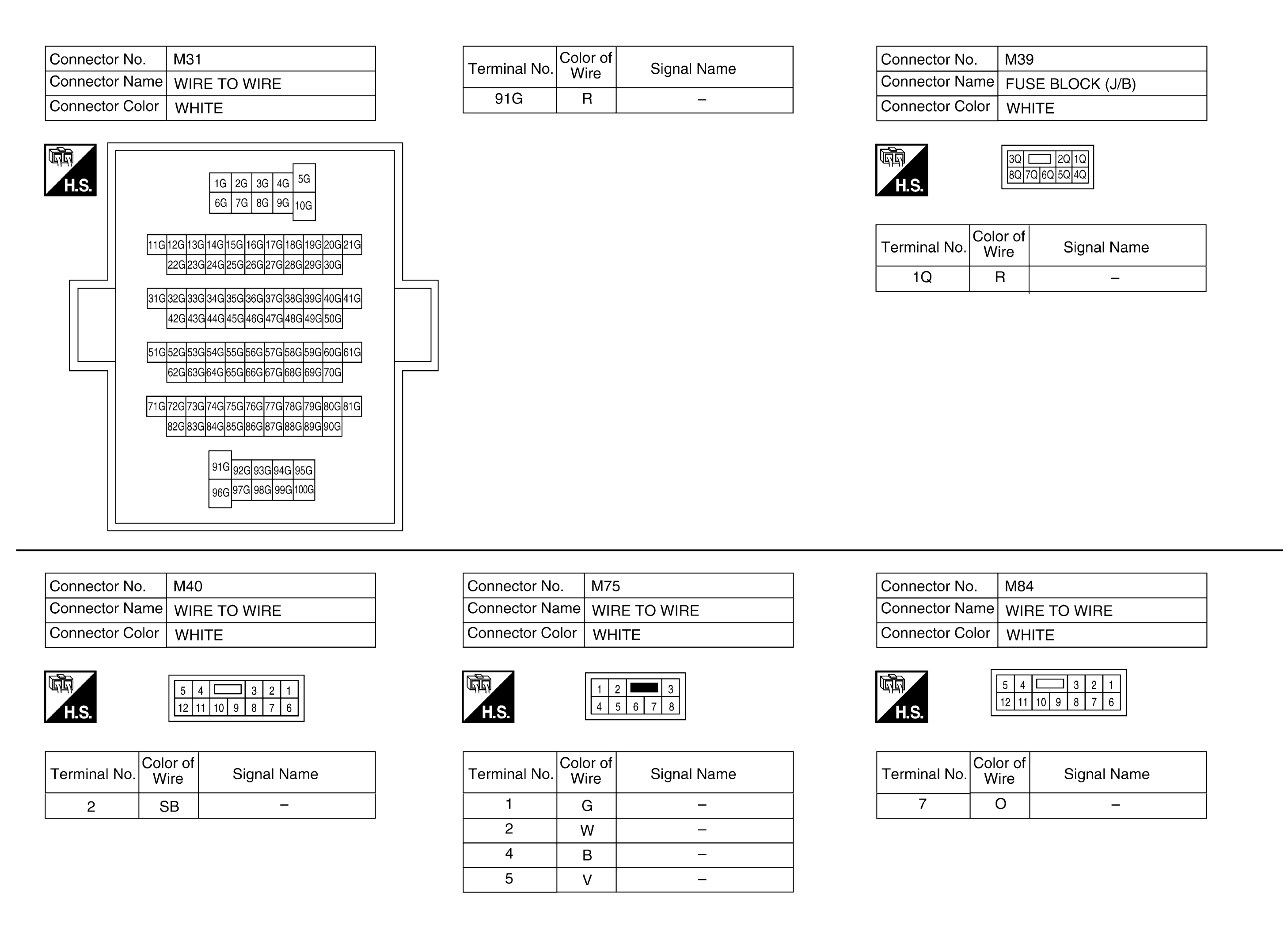

Fig 2: Identifying Power Window System Connectors (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

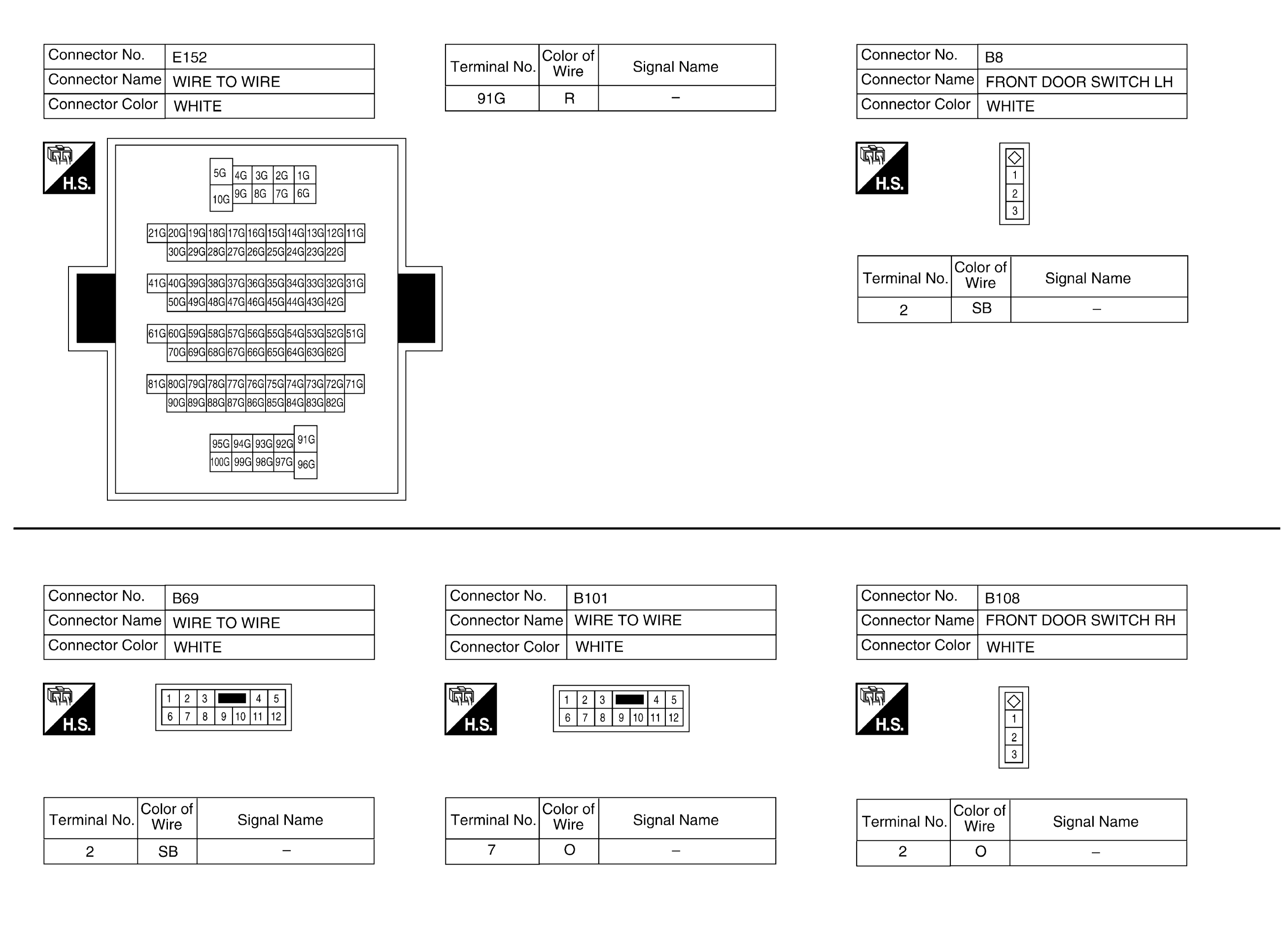

Fig 3: Identifying Power Window System Connectors (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

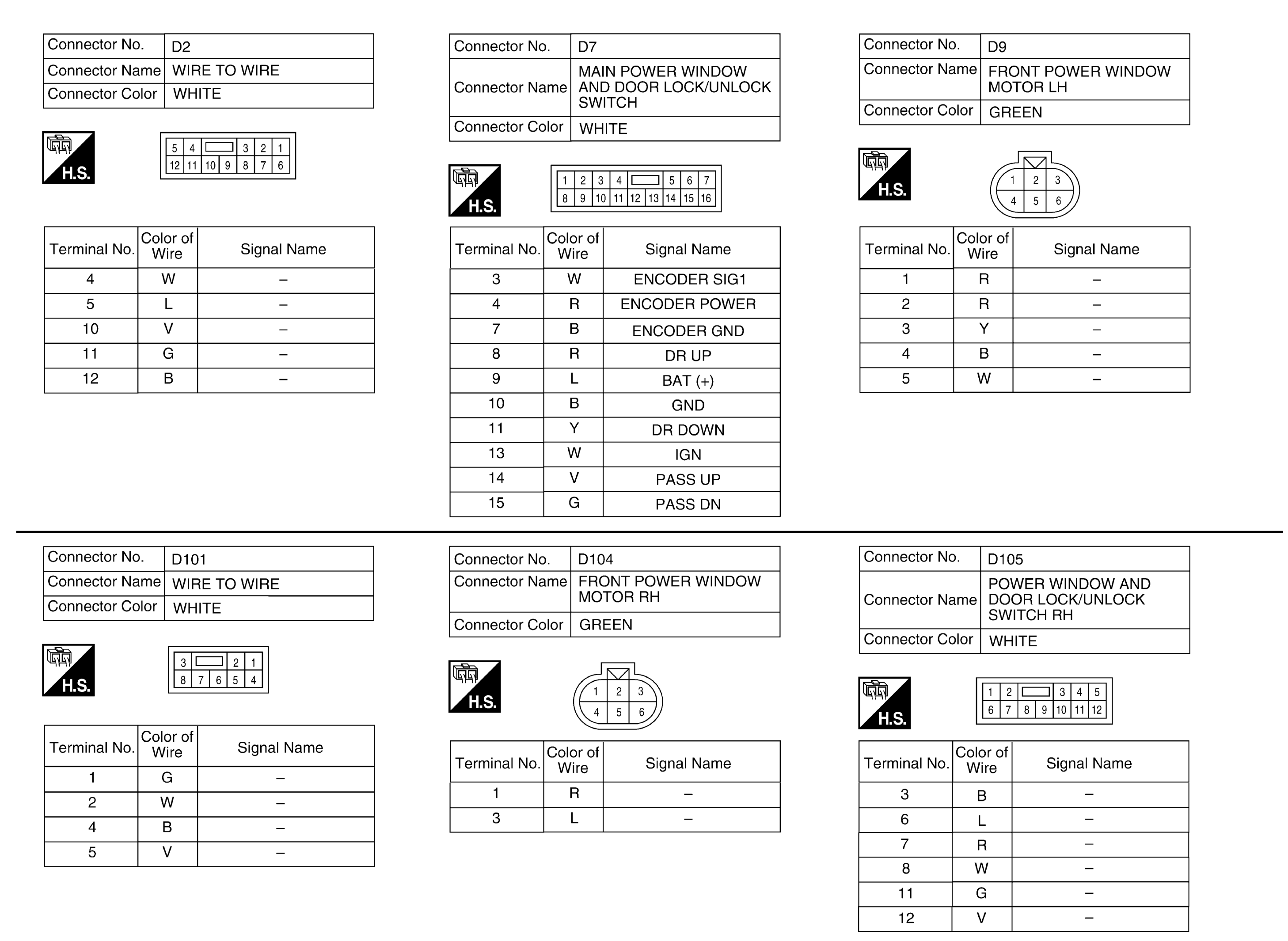

Fig 4: Identifying Power Window System Connectors (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.
