IPDM E/R Relays

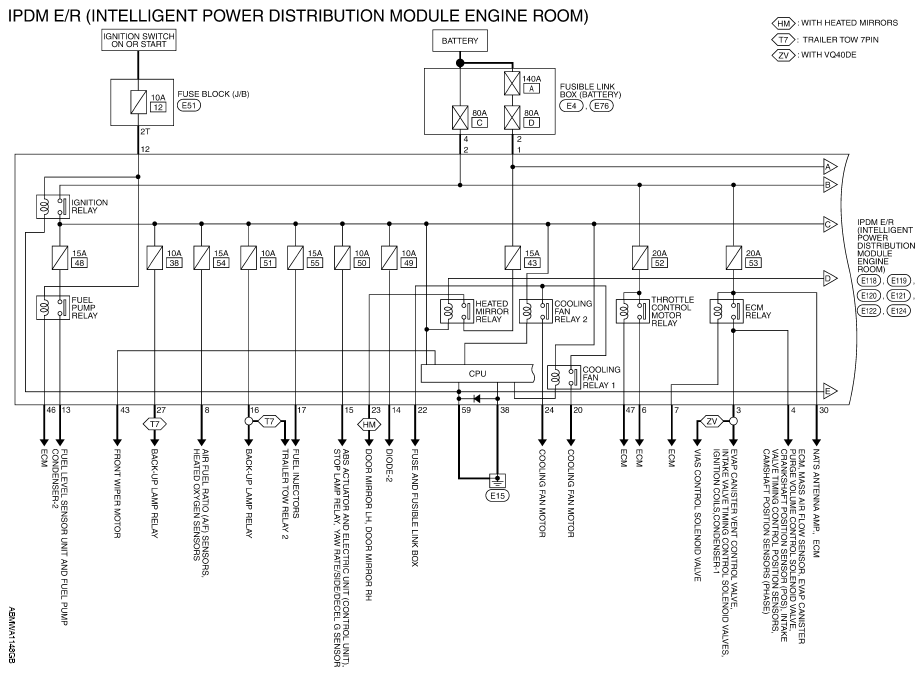

Fig 1: IPDM E/R Relays (1 Of 2)
G08160727Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay
Fuel Pump Relay
Heated Mirror Relay
Cooling Fan Relay 2
Throttle Control Motor Relay
ECM Relay
Cooling Fan Relay 1
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

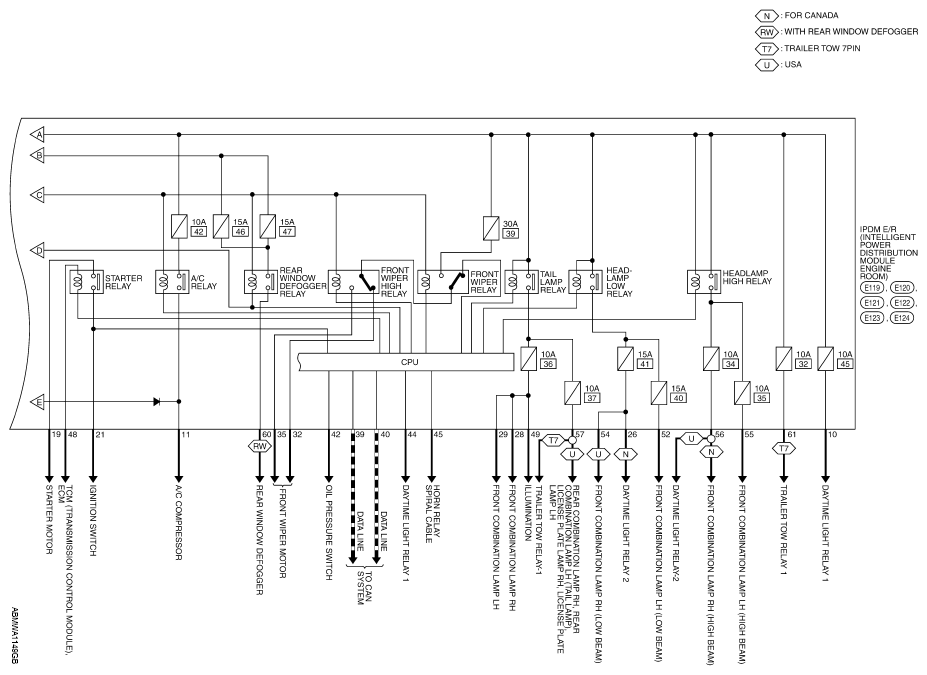

Fig 2: IPDM E/R Relays (2 Of 2)
G08160728Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Starter Relay
A/C Relay
Rear Window Defogger Relay
Front Wiper High Relay
Front Wiper Relay
Tail Lamp Relay
Headlamp Low Relay
Headlamp High Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

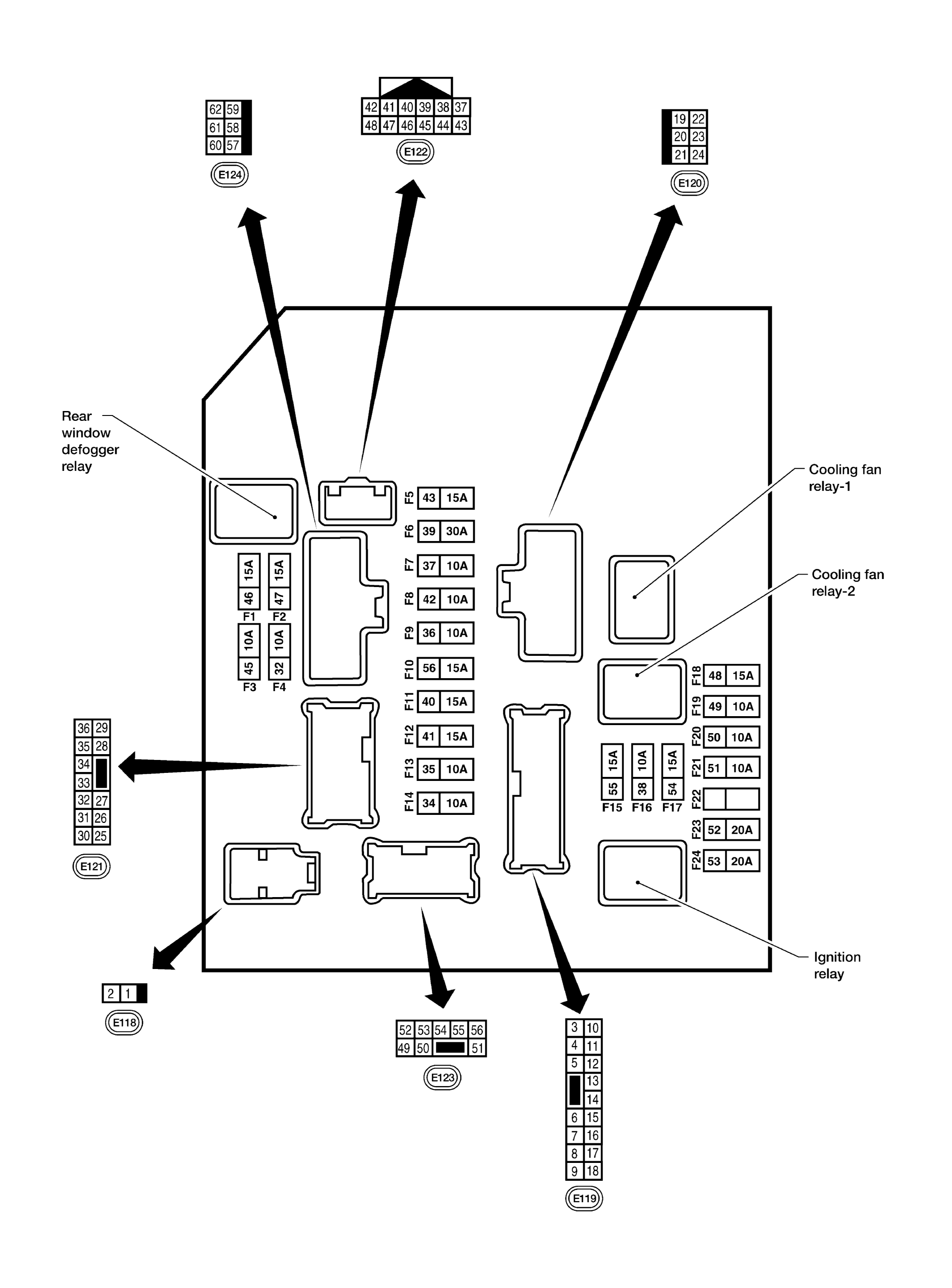

Fig 3: IPDM E/R Terminals And Relays
G06607847Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Window Defogger Relay
Cooling Fan Relay - 1
Cooling Fan Relay - 2
Ignition Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
