Wiring Diagram-ENGINE CONTROL SYSTEM-

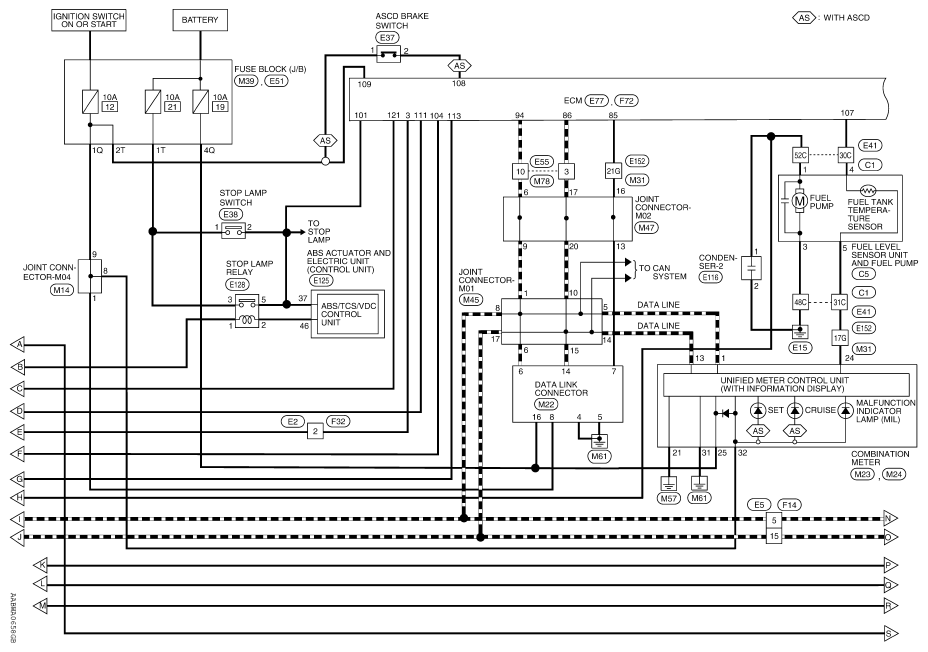

Fig 1: Engine Control System - Wiring Diagram (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

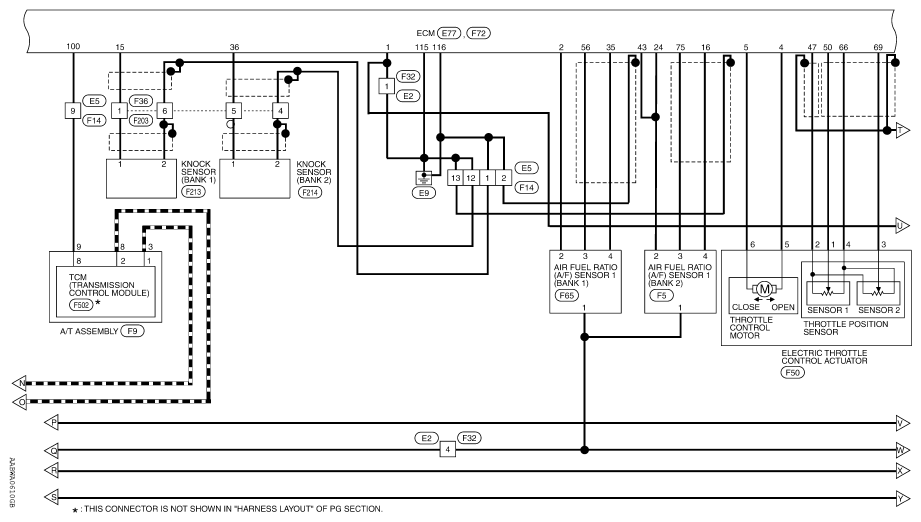

Fig 2: Engine Control System - Wiring Diagram (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

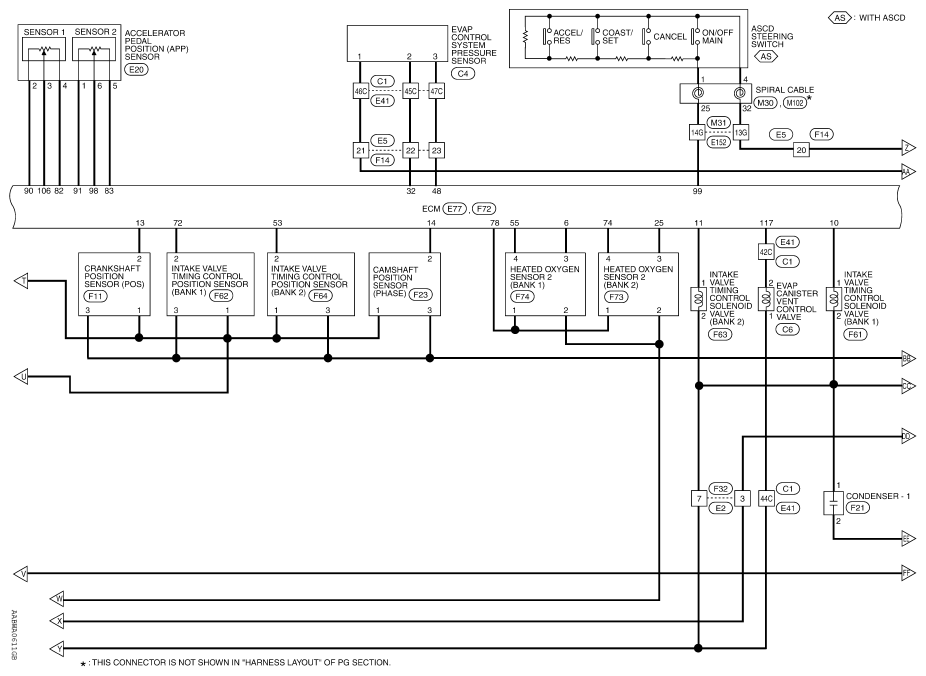

Fig 3: Engine Control System - Wiring Diagram (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

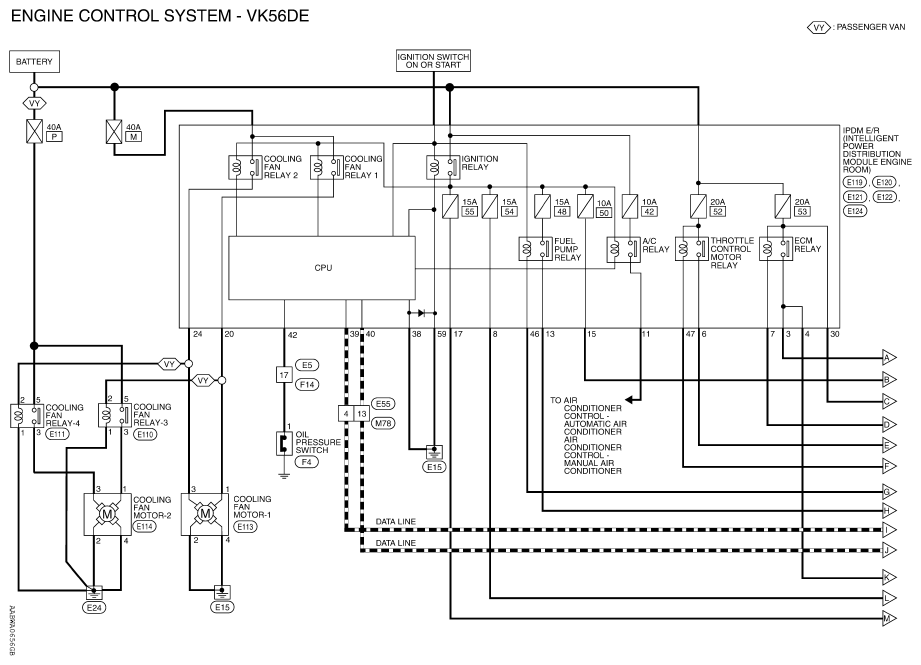

Fig 4: Engine Control System - Wiring Diagram (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

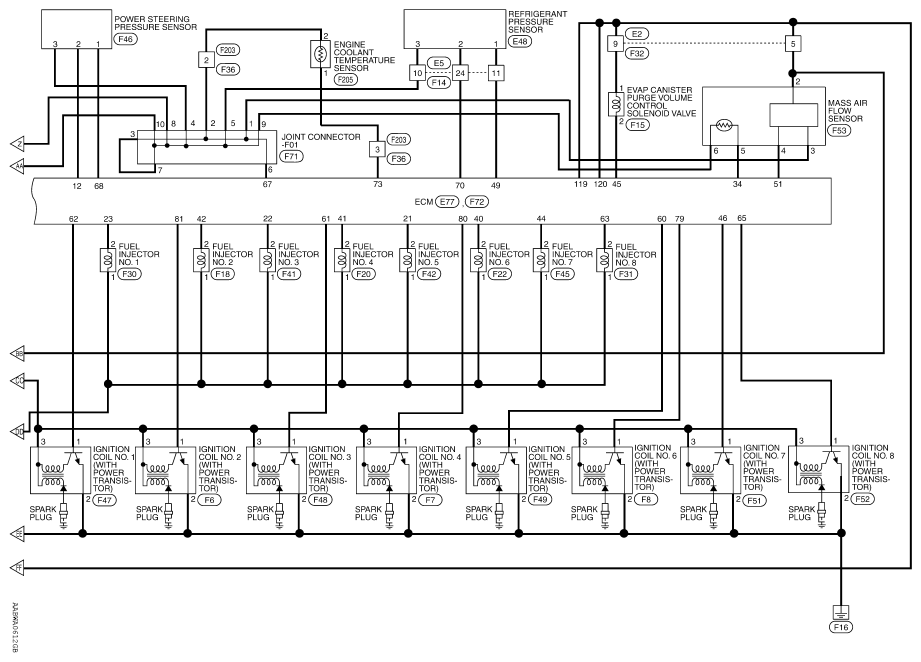

Fig 5: Engine Control System - Wiring Diagram (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
