Work Procedure

  1. CHECK PCV VALVE

    With engine running at idle, remove PCV valve from rocker cover. A properly working valve makes a hissing noise as air passes through it. A strong vacuum should be felt immediately when a finger is placed over valve inlet.

    Is the inspection result normal?

    YES: INSPECTION END

    NO: Replace PCV valve. Refer to "EXPLODED VIEW "

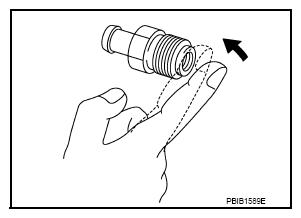

    Fig 1: Checking PCV Valve
    G08171612Courtesy of NISSAN NORTH AMERICA, INC.
