Component Inspection

With CONSULT

1. Turn ignition switch OFF.
2. Reconnect electronic controlled engine mount control solenoid valve harness connector.
3. Disconnect vacuum hoses connected to electronic controlled engine mount control solenoid valve.
4. Turn ignition switch ON.
5. Select "ENGINE MOUNTING" in "ACTIVE TEST" mode with CONSULT.
6. Check air passage continuity and operation delay time under the following conditions.

   Condition (ENGINE MOUNTING)	Air passage continuity between (A) and (B)	Air passage continuity between (A) and (C)
   TRVL	Existed	Not existed
   IDLE	Not existed	Existed

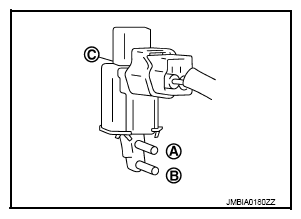

   Fig 1: Identifying VIAS Control Solenoid Valve 2 Ports

   Courtesy of NISSAN NORTH AMERICA, INC.

Without CONSULT

1. Turn ignition switch OFF.
2. Disconnect electronic controlled engine mount control solenoid valve harness connector.
3. Disconnect vacuum hoses connected to electronic controlled engine mount control solenoid valve.
4. Check air passage continuity and operation delay time under the following conditions.

   Condition	Air passage continuity between (A) and (B)	Air passage continuity between (A) and (C)
   12 V direct current supply between terminals 1 and 2	Existed	Not existed
   No supply	Not existed	Existed

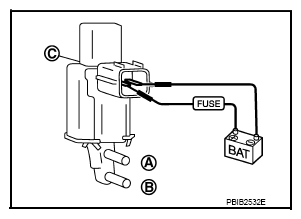

   Fig 2: Checking VIAS Control Solenoid Valve 2

   Courtesy of NISSAN NORTH AMERICA, INC.

   Is the inspection result normal?

   YES: INSPECTION END

   NO: Replace electronic controlled engine mount control solenoid valve. Refer to "EXPLODED VIEW ".
