Component Inspection

CHECK FUEL TANK TEMPERATURE SENSOR

Check resistance between "fuel level sensor unit and fuel pump" terminals by heating with hot water as shown in the figure below.

Terminals	Condition		Resistance
4 and 5	Temperature [°C (°F)]	20 (68)	2.3 - 2.7 kΩ
4 and 5	Temperature [°C (°F)]	50 (122)	0.79 - 0.90 kΩ

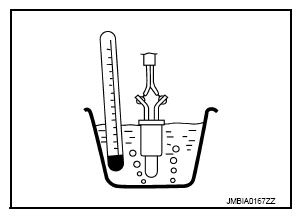

Fig 1: Checking Fuel Tank Temperature Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace fuel level sensor unit and fuel pump. Refer to "EXPLODED VIEW ".
