Mil And Data Link Connector: Wiring Diagram

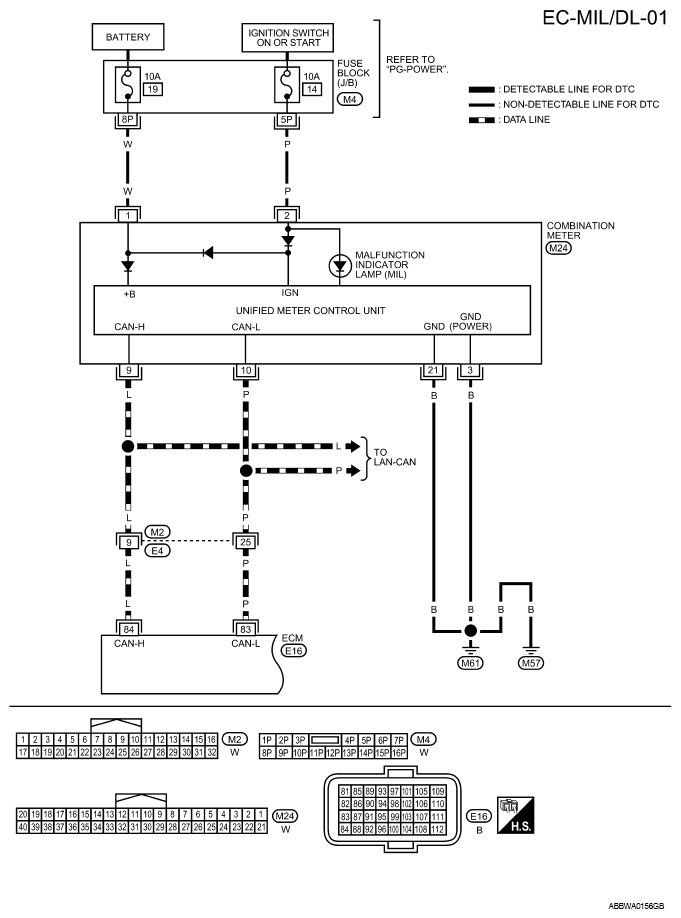

Fig 1: Identifying Wiring Diagram With Connector End View (EC-MIL/DL-01)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Identifying Wiring Diagram With Connector End View (EC-MIL/DL-02)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
