Wiring Diagram - Intelligent Key -

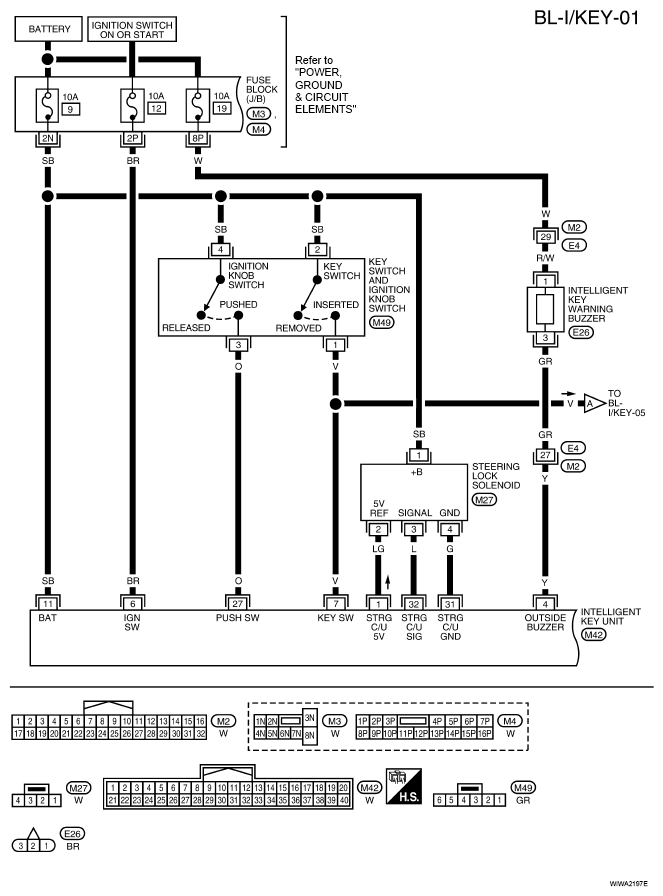

Fig 1: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-01)
G04927625Courtesy of NISSAN NORTH AMERICA, INC.

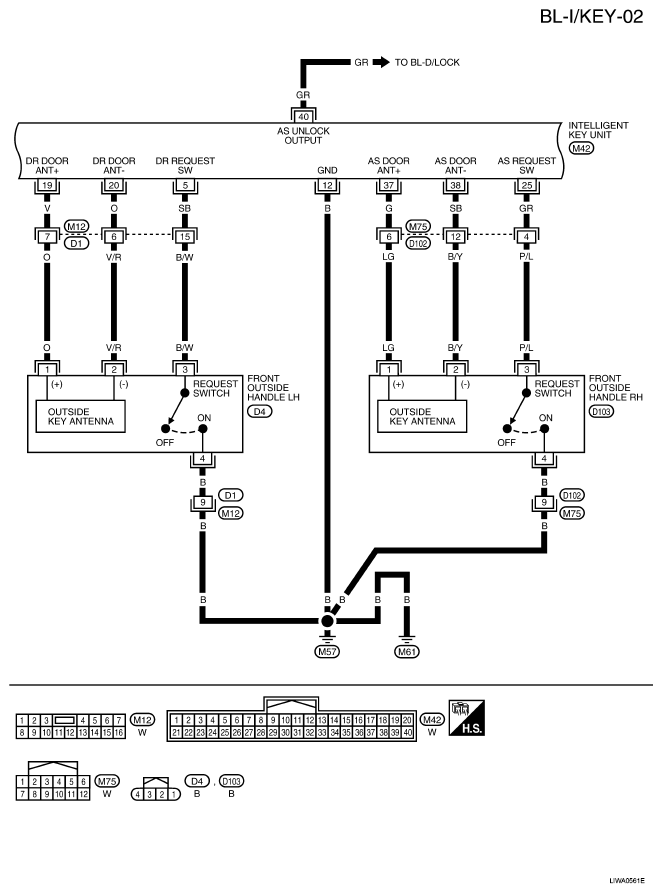

Fig 2: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-02)
G04927626Courtesy of NISSAN NORTH AMERICA, INC.

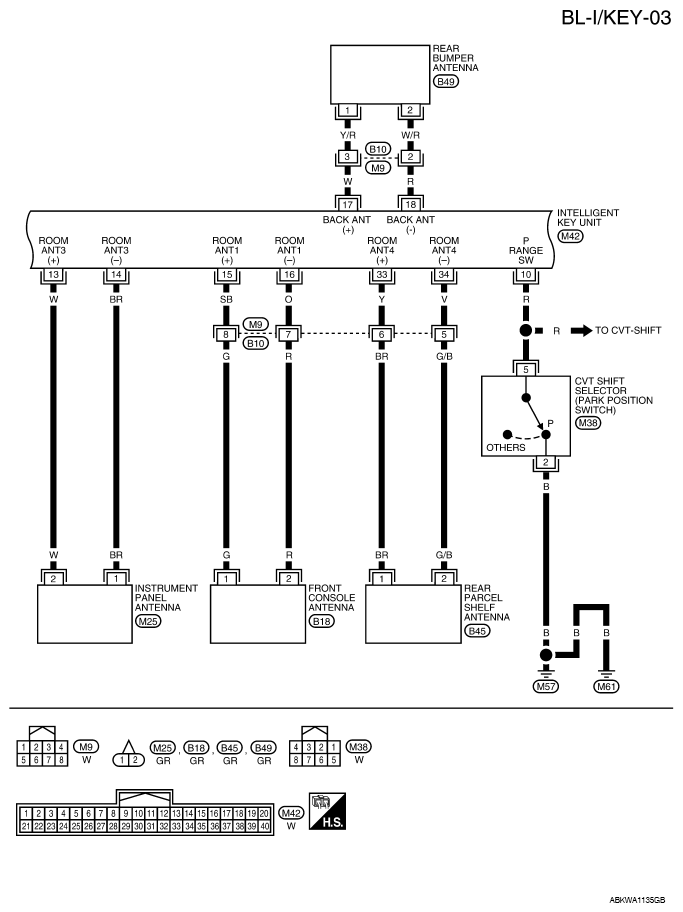

Fig 3: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-03)
G08181163Courtesy of NISSAN NORTH AMERICA, INC.

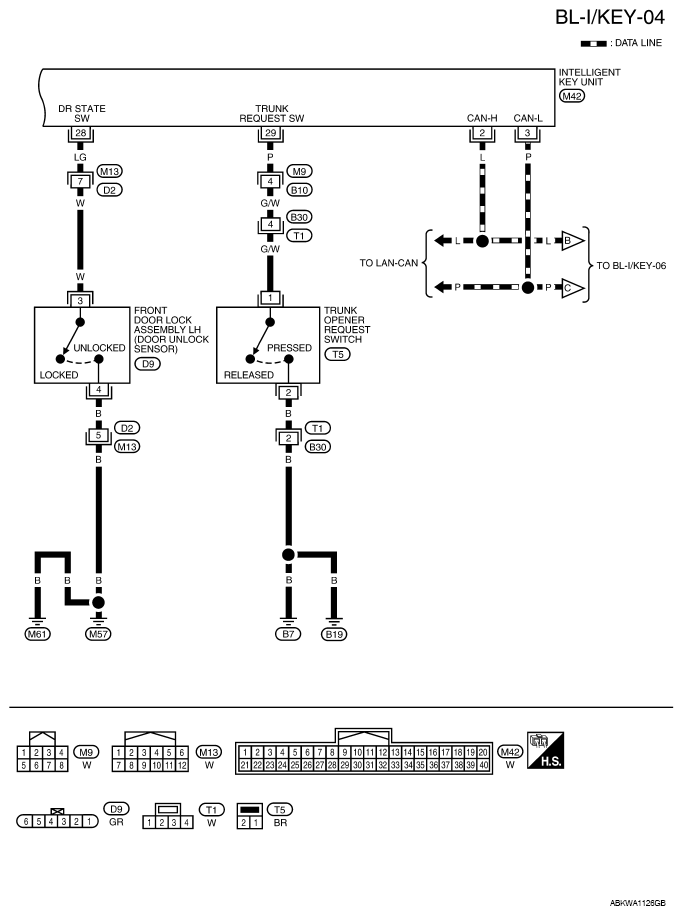

Fig 4: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-04)
G08181164Courtesy of NISSAN NORTH AMERICA, INC.

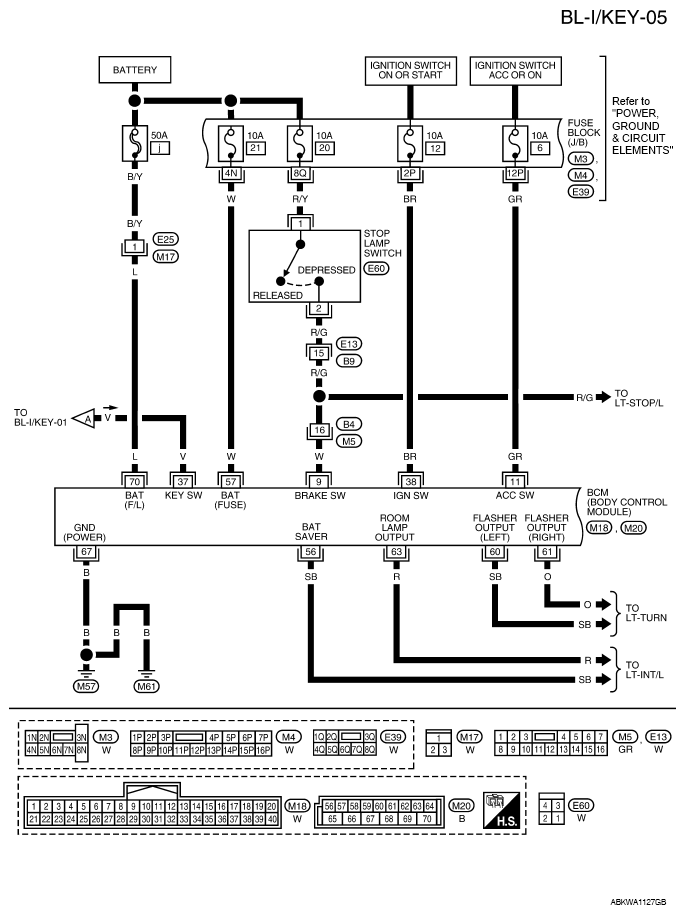

Fig 5: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-05)
G08181165Courtesy of NISSAN NORTH AMERICA, INC.

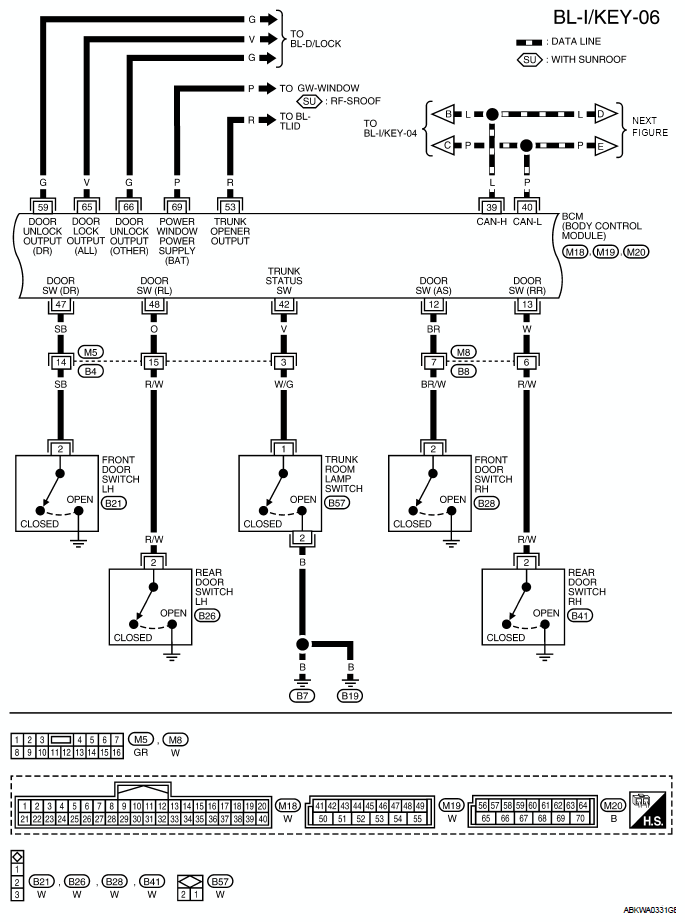

Fig 6: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-06)
G05924669Courtesy of NISSAN NORTH AMERICA, INC.

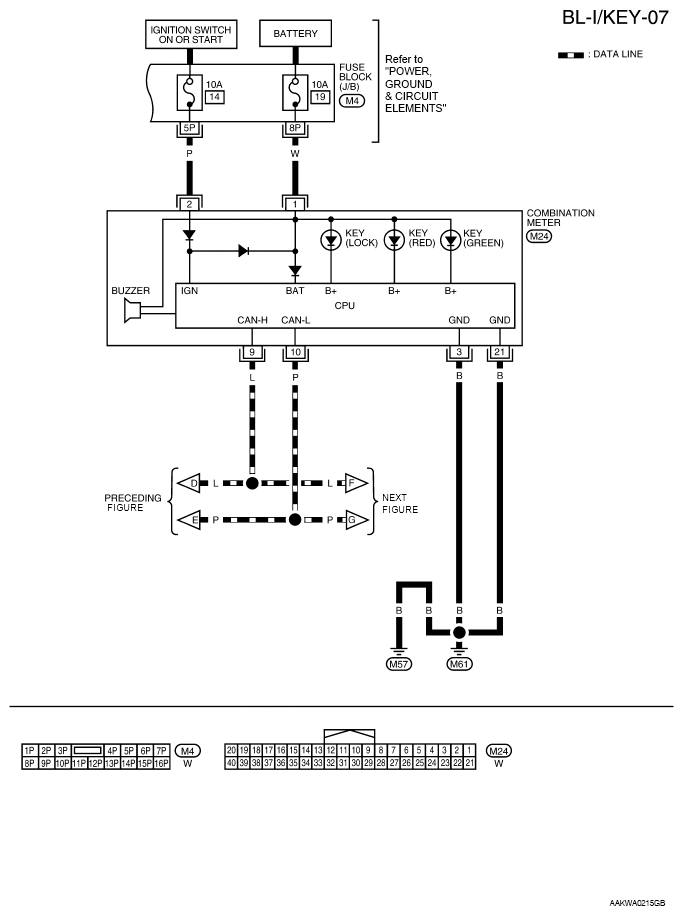

Fig 7: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-07)
G06552856Courtesy of NISSAN NORTH AMERICA, INC.

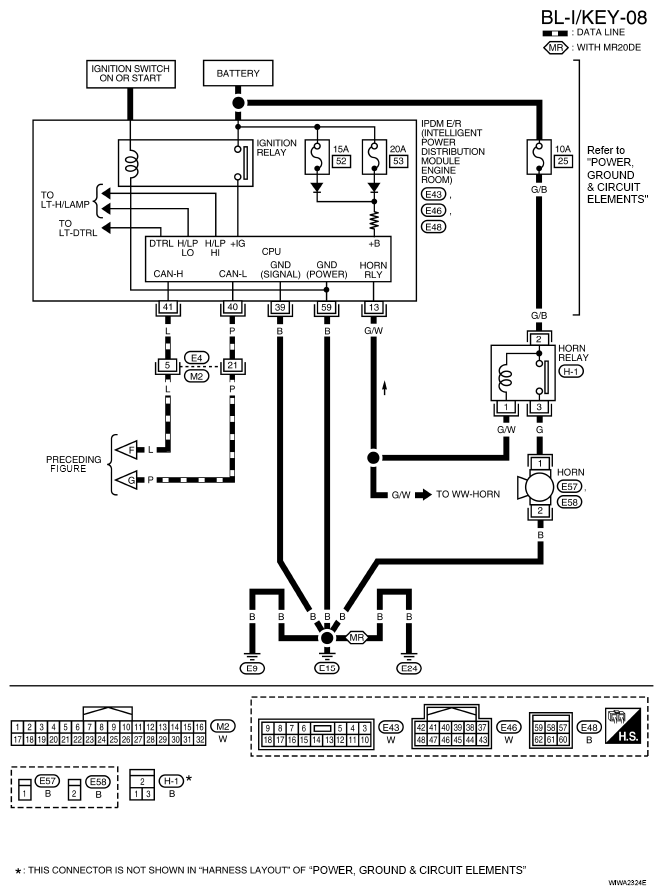

Fig 8: Identifying Intelligent Key Wiring Diagram With Connector End View (BL-I/KEY-08)
G04927632Courtesy of NISSAN NORTH AMERICA, INC.
