Trunk Lid Assembly: Removal

  1. Remove the trunk lid finisher. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER .
  2. Remove the trunk lid wire harness.
  3. Remove the nuts (a) and the trunk lid assembly (1).

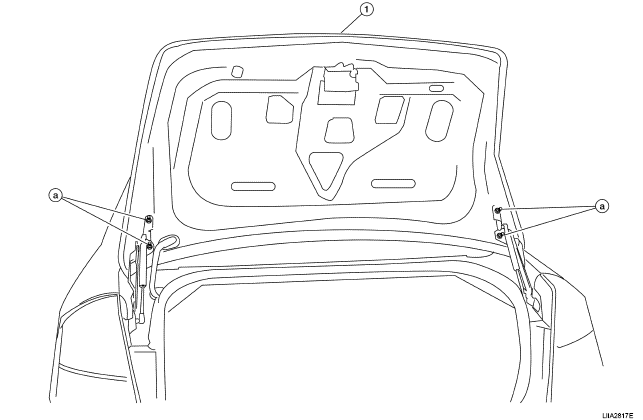

    Fig 1: Identifying Trunk Lid Assembly And Nuts
    G04927738Courtesy of NISSAN NORTH AMERICA, INC.
