Preliminary Check
- CHECK BCM CONFIGURATION
Confirm BCM configuration for "THEFT ALARM" is set to "WITH". Refer to , "CONFIGURATION ".
OK or NG
OK: Proceed with the preliminary check to verify system operation.
NG: Change BCM configuration for "THEFT ALARM" to "WITH". Refer to , "CONFIGURATION ".

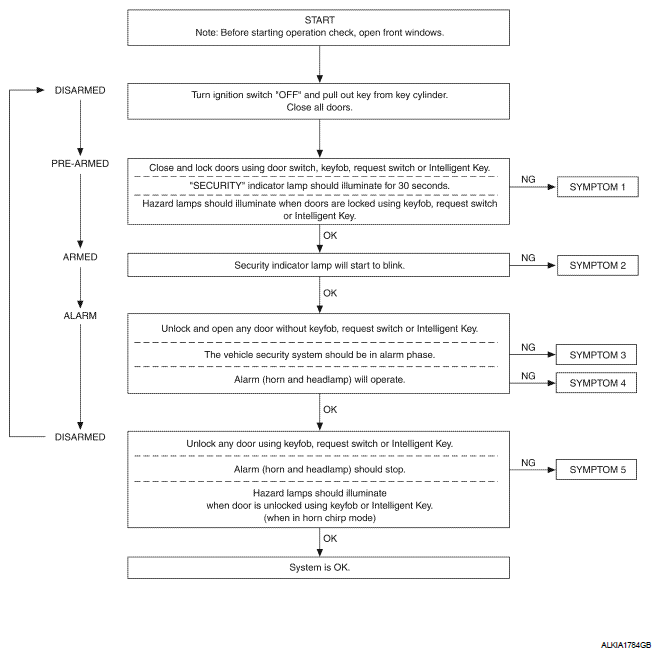

The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.
Courtesy of NISSAN NORTH AMERICA, INC.
After performing preliminary check, go to symptom chart. Refer to , "SYMPTOM CHART ".
