Drive Shaft

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

Joint type

Wheel side

Transaxle side

Grease quantity

105 - 125 g (3.70 - 4.40 oz)

153 - 166 g (5.39 - 5.85 oz)

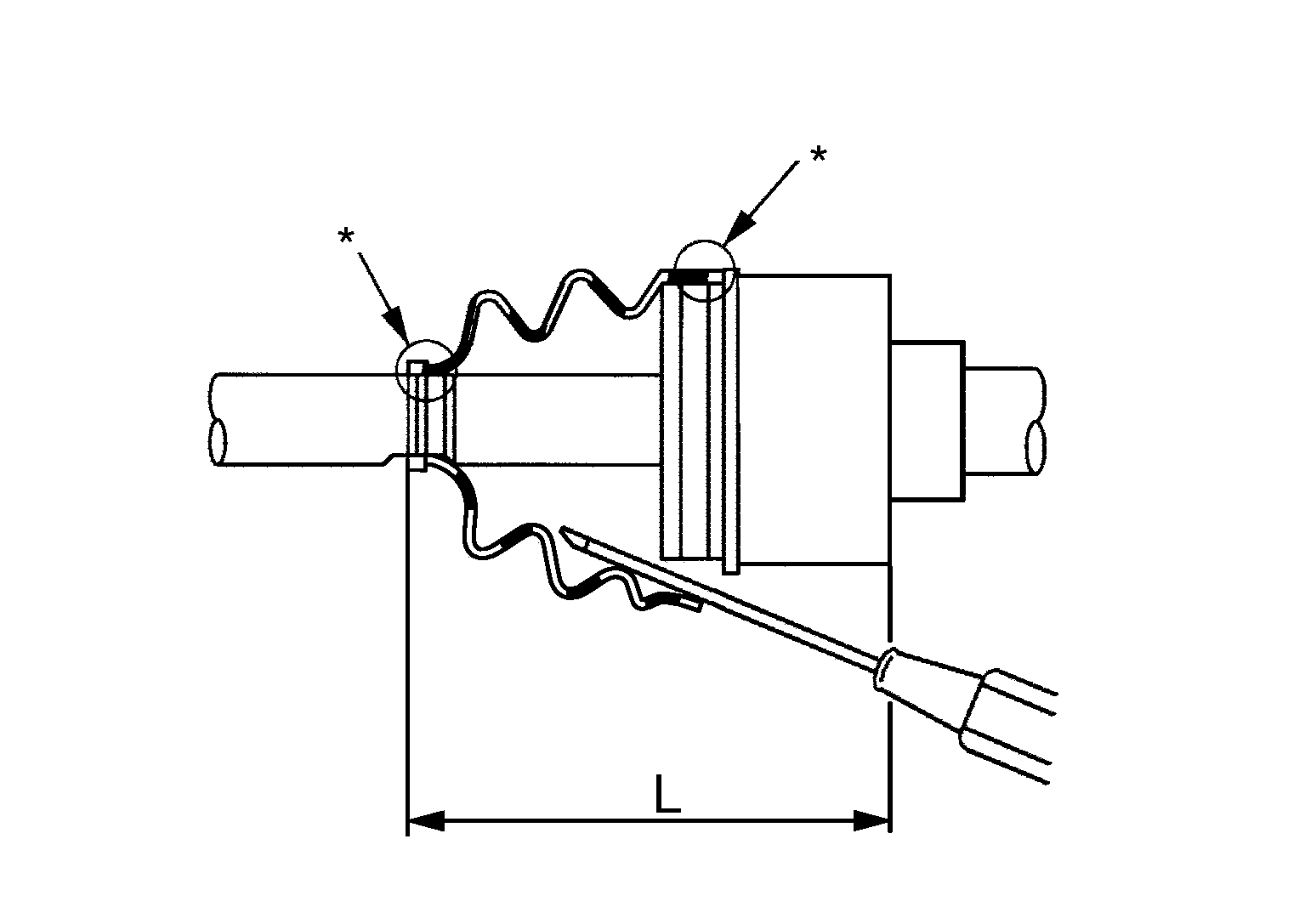

Boots installed length

Left side

141.2 - 143.2 mm (5.56 - 5.64 in)

180.8 - 182.8 mm (7.12 - 7.20 in) (M/T models)
175.7 - 177.7 mm (6.92 - 7.00 in) (CVT models)

Right side

167.7 - 169.7 mm (6.60 - 6.68 in)

⁽¹⁾	Boot mounting surface (grooves)
