Drive Cycle Pattern No. 12

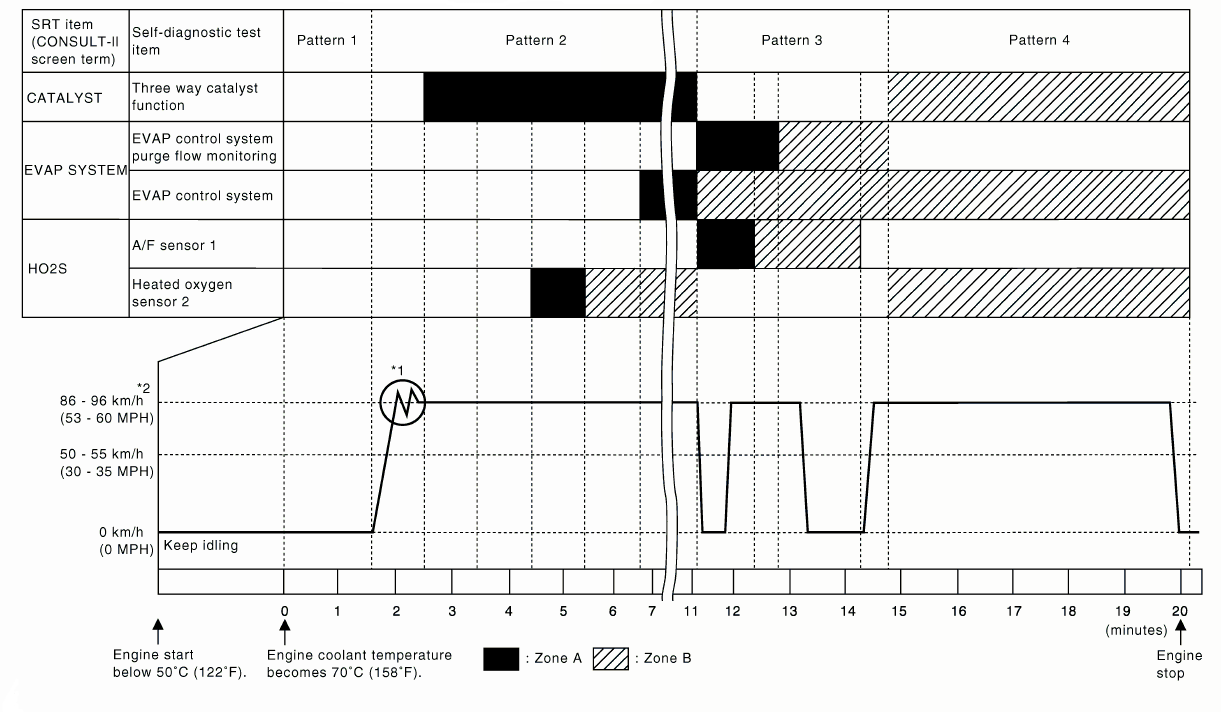

Fig 1: Drive Cycle Pattern No. 12

G00494865

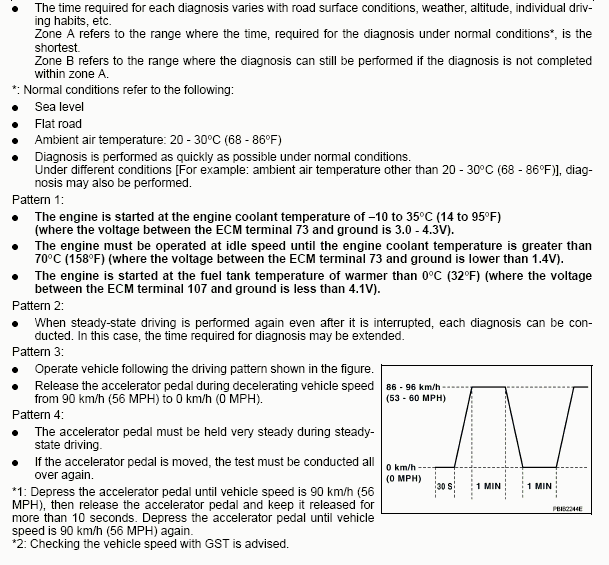

Fig 2: Drive Cycle Legend No. 12

G00494880
