Maintenance Service Reminder Reset - Procedure 03
NOTE:
This procedure is for the Vehicle Information Display (center of the instrument cluster).

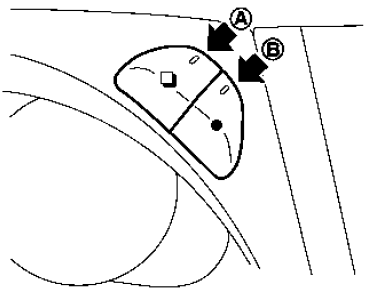

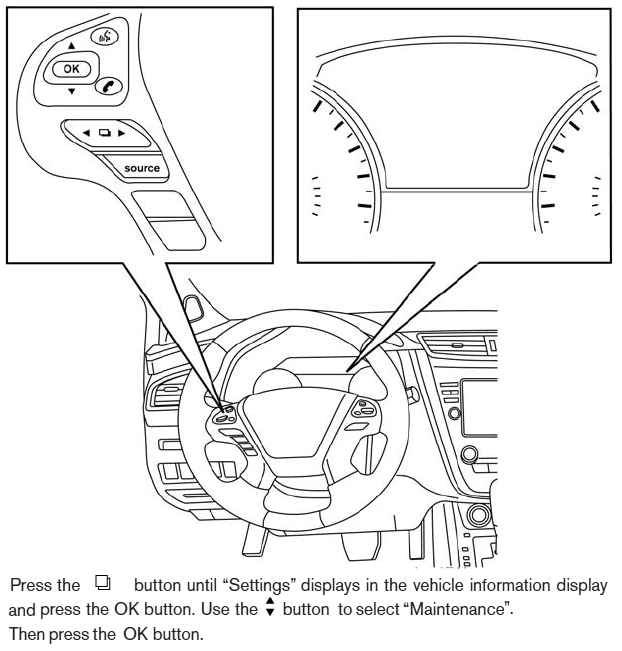

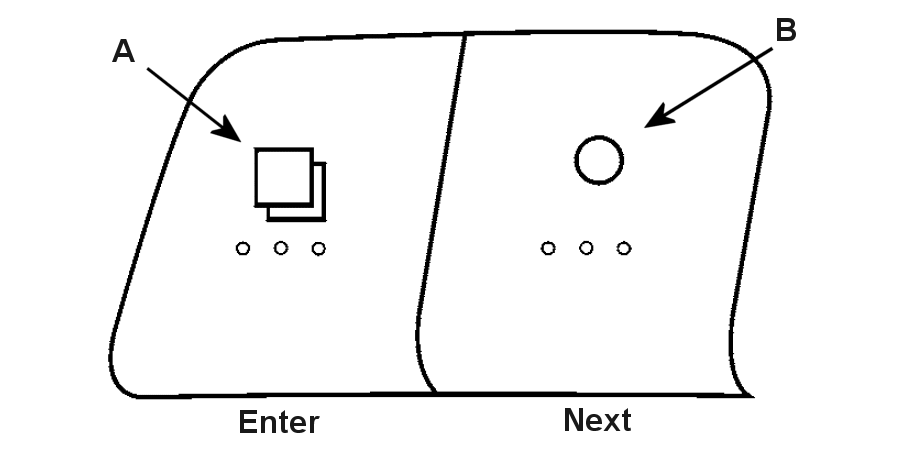

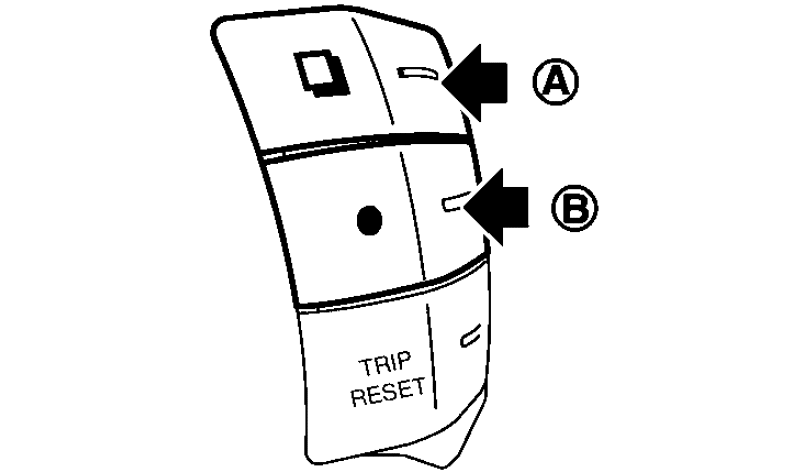

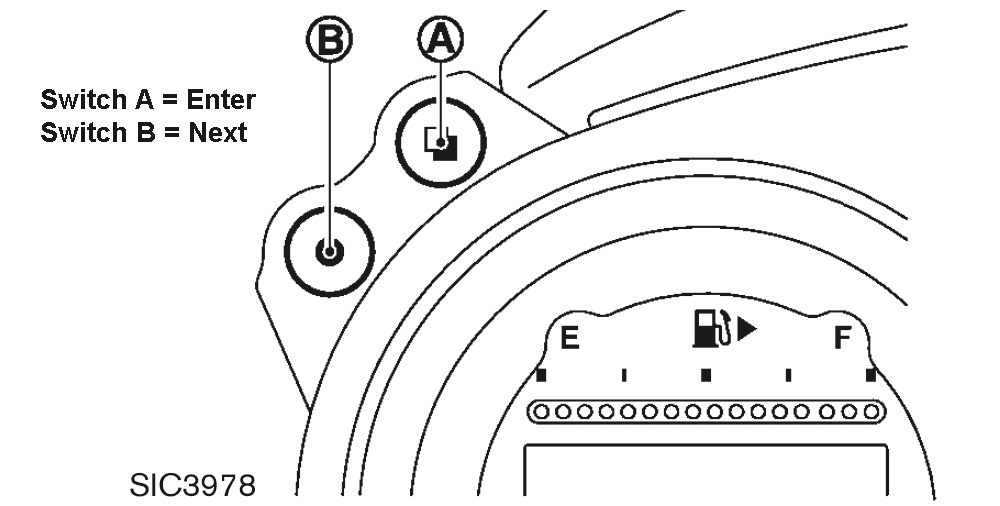

Maintenance intervals shown in the Vehicle Information Display are reset using the Trip Computer switches. See Fig 1, Fig 2, Fig 4, or Fig 5 . When the ignition switch is pushed to the ON position, modes of the trip computer can be selected by pushing the (A) switch. Each time the switch (A) switch is pushed, the display will change modes. Use mode "Setting" for this procedure. See Figure.
NOTE:
The "Setting" mode cannot be accessed while driving. A message "Setting can only be operated when stopped" is also displayed on the vehicle information display.

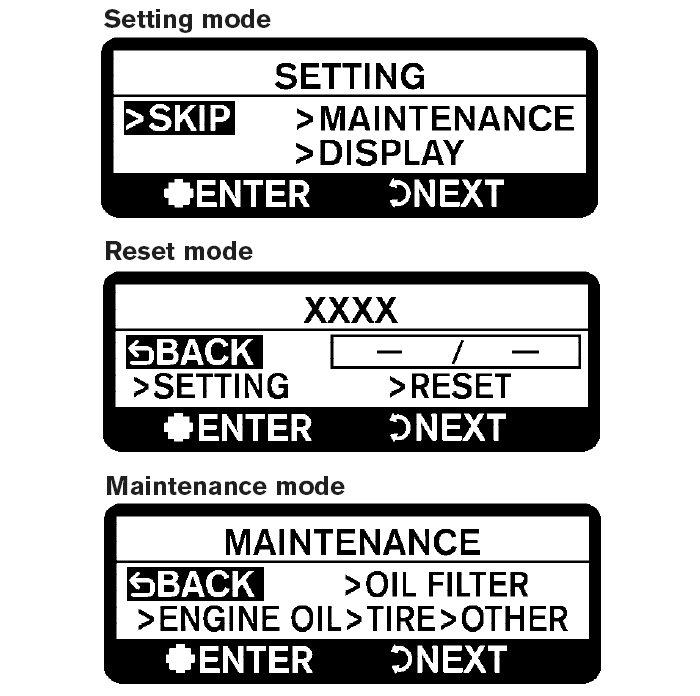

The (A) and (B) switch are used in the "Setting" mode to select and decide a menu.
Use switch (B) to select the MAINTENANCE menu. Use switch (A) to activate the MAINTENANCE item. The maintenance intervals of the following items can be set or reset for the reminders:
- Oil: Select this menu to adjust the distance until next engine oil change, or reset the automatic reminder.
- Filter: Select this menu to adjust the distance until next oil filter replacement, or reset the automatic reminder.
- Tire: Select this menu to adjust the distance until tires need replacing, or reset the automatic reminder.
- Other: Select this menu to adjust or reset items other than the engine oil, oil filter and tires.
To return to the top page of the "Setting" mode, select BACK.
