When Replacing Configurable BCM (NTB12-054)
WARNING: This page is about the Sentra Base, Automatic CVT Trans, which is a different variant/trim than selected.
Publication date: 2012-06-26Reference number: NTB12-054
WHEN REPLACING CONFIGURABLE BCM
TECHNICAL SERVICE BULLETIN
Reference Number(s): NTB12-054, Date of Issue:
June 26, 2012
| NISSAN: | All with configurable BCM |
| CLASSIFICATION: | EC12-015 |
| APPLIED VEHICLES: | All with configurable BCM |
SERVICE INFORMATION

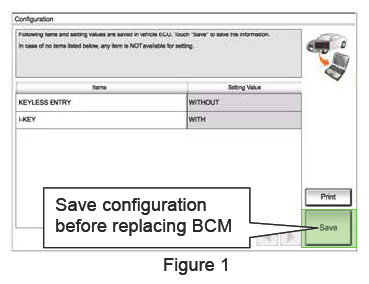

Before replacing a configurable BCM, always select Save Configuration whether or not it has any manually configurable options.

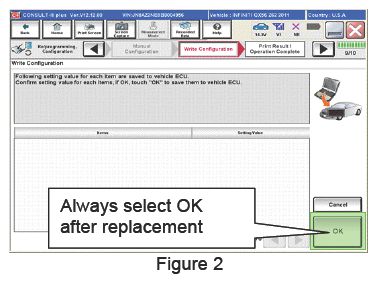

After replacement "Write Configuration" MUST then be performed and OK selected, even if there are not any options listed. (See Figure 2)
IMPORTANT:
- Auto settings are not visible in CONSULT III plus and it is not possible to confirm these settings.
- If original BCM is damaged and "Saving" configuration is not possible:
- Replace BCM, perform the "Write Configuration" and select OK to insure "auto" settings are correct. Even if manual settings are correct or there are no manual settings.
After configuration is completed:
- Register I-Keys
- Register Fob (If applicable)
- Complete TPMS registration
