Removal and Installation: Installation

Installation is in the reverse order of removal. For tightening specifications, refer to COMPONENT .

• When installing rear spring rubber seat, be sure that the flat areas (A) are aligned.

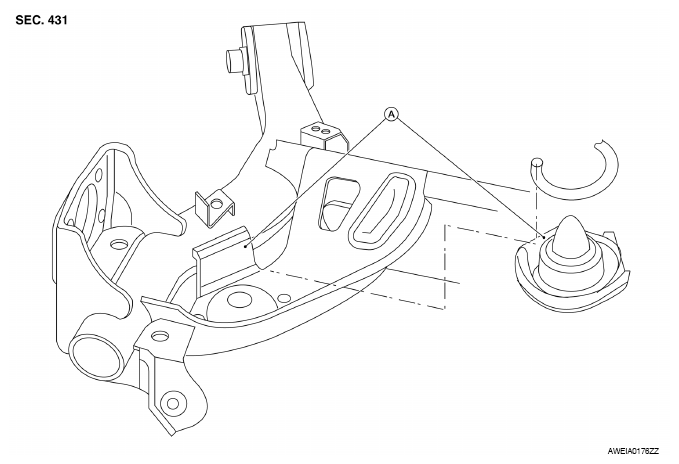

  Fig 1: Identifying Rear Spring Rubber Seat Flat Areas

  Courtesy of NISSAN NORTH AMERICA, INC.
• When installing rear spring, be sure that the gap (A) is less than 5 mm (0.20 in).

Fig 2: Identifying Rear Spring Gap

Courtesy of NISSAN NORTH AMERICA, INC.
