With Intelligent Key

SYMPTOM 1:

• Selector lever cannot be moved from "P" position with ignition knob switch in ON position and brake pedal depressed  .
• Selector lever can be moved from "P" position with ignition knob switch in ON position and brake pedal released  .
• Selector lever can be moved from "P" position when ignition knob switch is in OFF position  .

SYMPTOM 2:

• Ignition knob switch cannot be turned when selector lever is set to "P" position  .
• Ignition knob switch can be turned when selector lever is set to any position except "P" position  .

1. CHECK KEY INTERLOCK CABLE

   Check key interlock cable for damage.

   OK or NG

   OK: GO TO 2.

   NG: Repair key interlock cable. Refer to "REMOVAL AND INSTALLATION ".

2. CHECK CVT POSITION

   Check CVT position. Refer to "CHECKING OF CVT POSITION ".

   OK or NG

   OK: GO TO 3.

   NG: Adjust control cable. Refer to "ADJUSTMENT OF CVT POSITION ".

3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
   1. Turn ignition switch ON. (Do not start engine.)
   2. Selector lever is set in "P" position.
   3. Check operation sound.

   Condition	Brake pedal	Operation sound
   When ignition switch is turned to ON position and selector lever is set in "P" position.	Depressed	Yes
   	Released	No

   OK or NG

   OK: INSPECTION END

   NG: GO TO 4.

4. CHECK POWER SOURCE

   Check voltage between CVT shift selector harness connector M38 terminal 3 and ground.

   Fig 1: Checking Power Source

   Courtesy of NISSAN NORTH AMERICA, INC.

   OK or NG

   OK: GO TO  6.

   NG: GO TO 5.

5. DETECT MALFUNCTIONING ITEM

   Check the following. If any items are damaged, repair or replace damaged parts.

   • Harness for short or open between ignition switch and CVT shift selector harness connector
   • 10A fuse [No. 12, located in the fuse block (J/B)]
   • Ignition switch, Refer to POWER SUPPLY ROUTING CIRCUIT .

   OK or NG

   OK: INSPECTION END

   NG: Repair or replace damaged parts.

6. CHECK STOP LAMP SWITCH POWER SOURCE
   1. Turn ignition switch OFF.
   2. Disconnect stop lamp switch harness connector E60.
   3. Turn ignition switch ON.
   4. Check voltage between stop lamp switch harness connector E60 terminal 3 and ground.

      3 - ground: Battery voltage

      Fig 2: Checking Stop Lamp Switch Power Source

      Courtesy of NISSAN NORTH AMERICA, INC.

      OK or NG

      OK: GO TO  8.

      NG: GO TO 7.

7. CHECK STOP LAMP SWITCH SUPPLY CIRCUIT
   1. Turn ignition switch OFF.
   2. Disconnect CVT shift selector harness connector M38.
   3. Check continuity between stop lamp switch harness connector E60 (B) terminal 3 and CVT shift selector harness connector M38 (A) terminal 4.

      Continuity should exist  .

   4. Check continuity between stop lamp switch harness connector E60 (B) terminal 3 and ground.

      Continuity should not exist  .

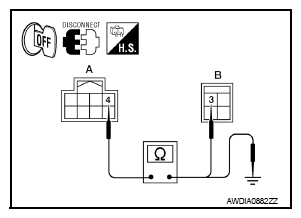

   Fig 3: Checking Stop Lamp Switch Supply Circuit

   Courtesy of NISSAN NORTH AMERICA, INC.

   OK or NG

   OK: Replace shift lock solenoid assembly.

   NG: Repair or replace harness as necessary.

8. CHECK GROUND CIRCUIT
   1. Turn ignition switch OFF.
   2. Check continuity between stop lamp switch harness connector E60 terminal 4 and ground.

   Continuity should exist  .

   Fig 4: Checking Ground Circuit

   Courtesy of NISSAN NORTH AMERICA, INC.

   OK or NG

   OK: GO TO 9.

   NG: Repair or replace harness as necessary.

9. CHECK STOP LAMP SWITCH

   Check continuity between stop lamp switch terminals 3 and 4.

   Condition	Continuity
   When brake pedal is depressed	Yes
   When brake pedal is released	No

   Check stop lamp switch after adjusting brake pedal.  Refer to BRAKE PEDAL .

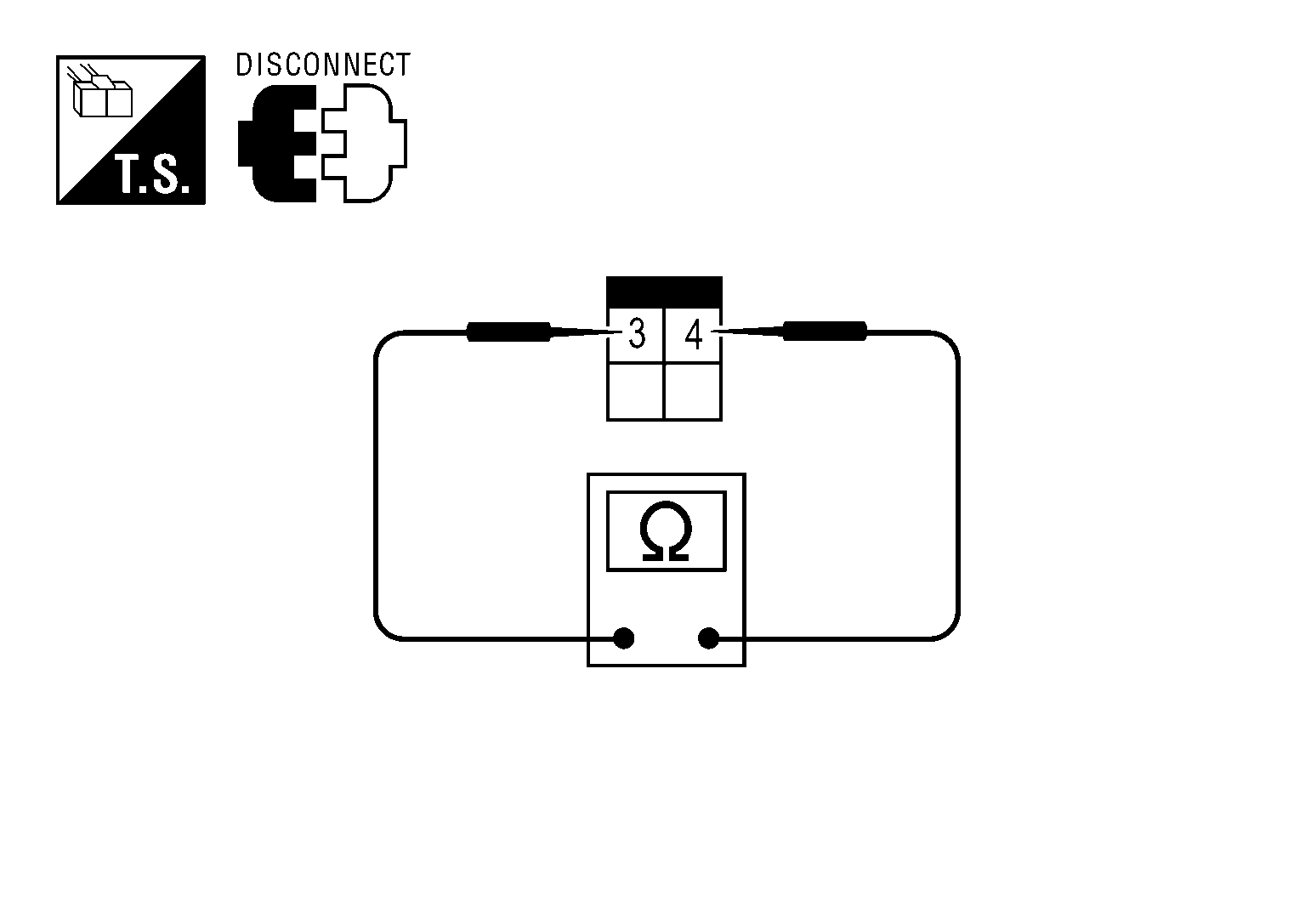

   Fig 5: Checking Stop Lamp Switch

   Courtesy of NISSAN NORTH AMERICA, INC.

   OK or NG

   OK: INSPECTION END.

   NG: Replace stop lamp switch.
