Removal and Installation: Components

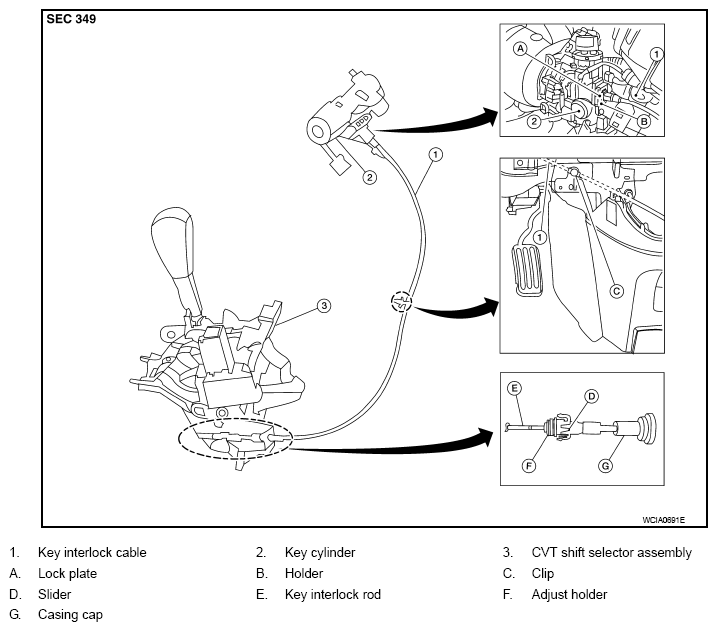

Fig 1: Identifying Key Interlock Cable Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
