Method B

  1. Remove No. 4 ignition coil (1).

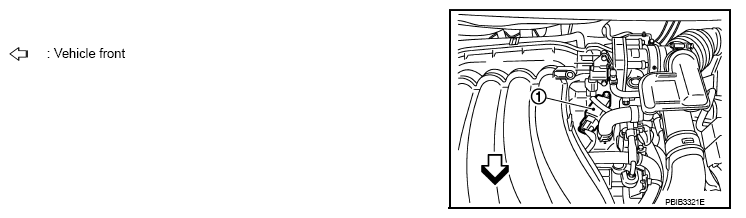

    Fig 1: Identifying No. 4 Ignition Coil
    G08186064Courtesy of NISSAN NORTH AMERICA, INC.
  2. Connect No. 4 ignition coil (1) and No. 4 spark plug with suitable high-tension wire (A) as shown in the figure, and attach timing light clamp (B) to this wire.

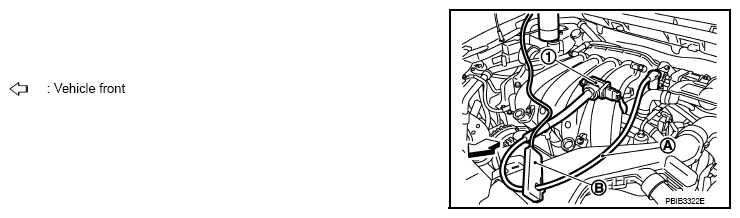

    Fig 2: Identifying Ignition Coil, High-Tension Wire And Timing Light Clamp
    G08186065Courtesy of NISSAN NORTH AMERICA, INC.
    Fig 3: Connecting No. 4 Ignition Coil And Spark Plug Using High Tension Wire
    G04925140Courtesy of NISSAN NORTH AMERICA, INC.
  3. Check ignition timing.

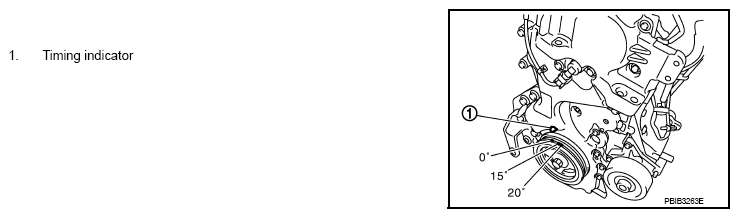

Fig 4: Checking Ignition Timing Using Timing Indicator
G08186067Courtesy of NISSAN NORTH AMERICA, INC.
