Ignition Timing: Inspection

CHECK IGNITION TIMING

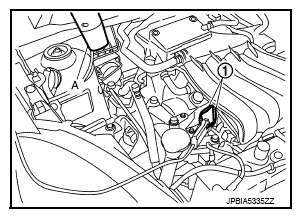

1. Attach timing light (A) to loop wire (1) as shown below.

  Fig 1: Identifying Timing Light And Loop Wire
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  : INSPECTION END

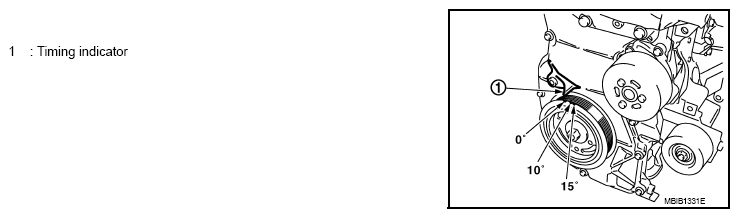

  Fig 2: Identifying Ignition Timing And Timing Indicator
  Courtesy of NISSAN NORTH AMERICA, INC.
