System - Basic Engine Control System

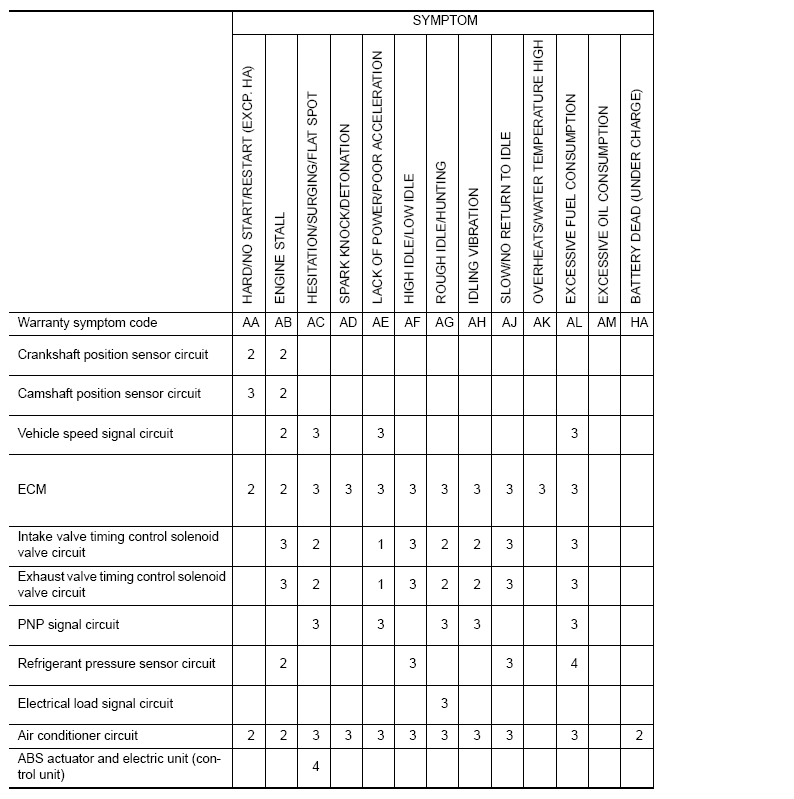

Fig 1: Basic Engine Control System Symptoms Chart (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

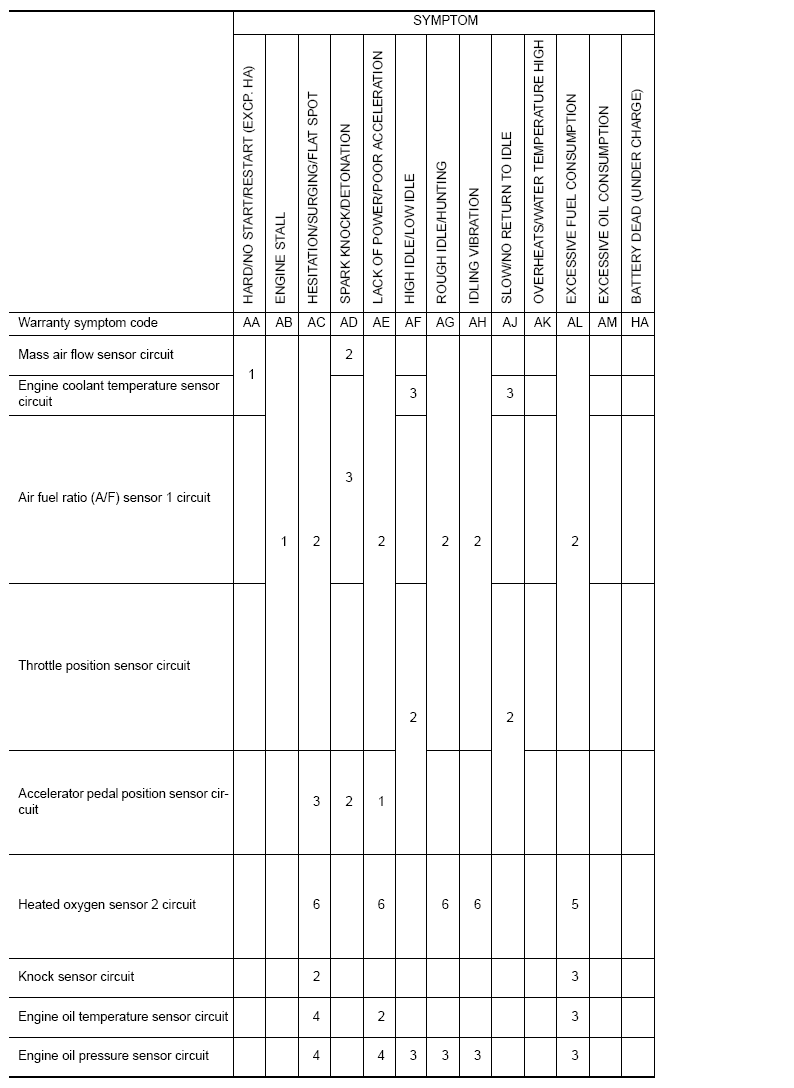

Fig 2: Basic Engine Control System Symptoms Chart (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Basic Engine Control System Symptoms Chart (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
