Exploded View: Removal

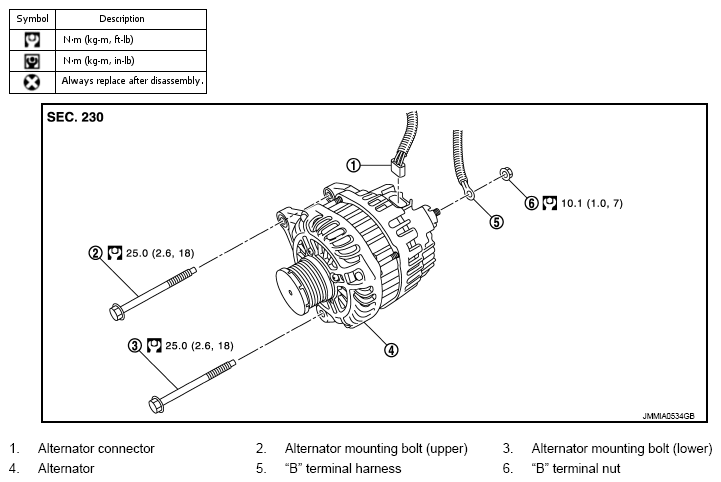

Fig 1: Exploded View Of Alternator With Torque Specifications
G08702339Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
