Component Parts Location

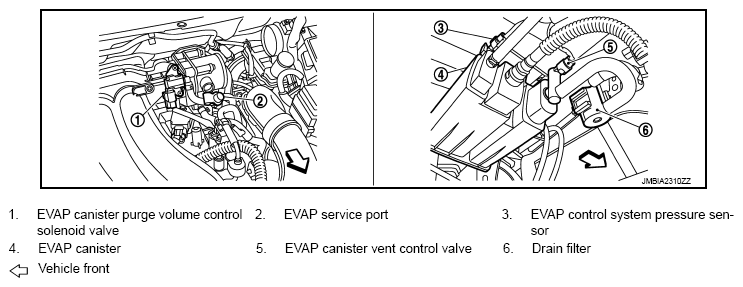

Fig 1: Identifying Engine Control System Components (1 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

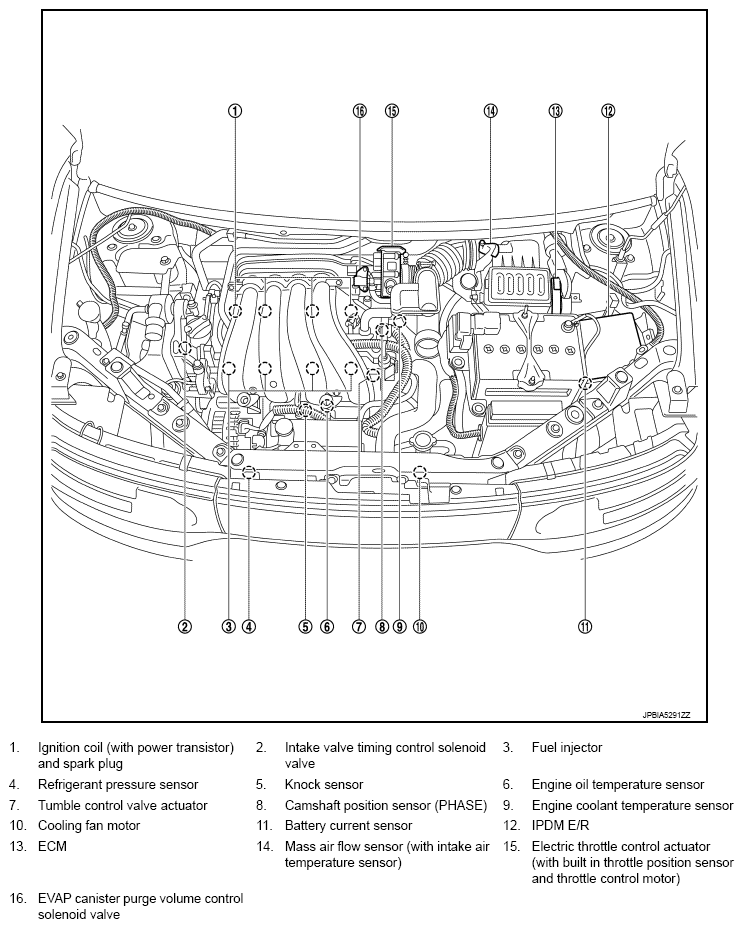

Fig 2: Identifying Engine Control System Components (2 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

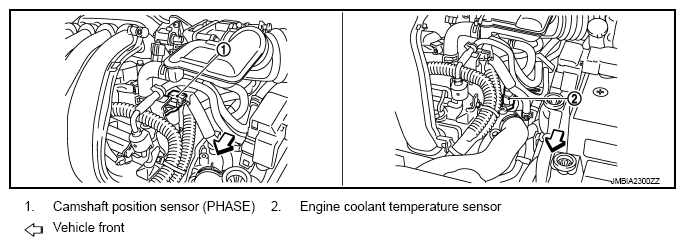

Fig 3: Identifying Engine Control System Components (3 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Engine Control System Components (4 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Engine Control System Components (5 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Engine Control System Components (6 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Engine Control System Components (7 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying Engine Control System Components (8 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Engine Control System Components (9 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Engine Control System Components (10 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Components (11 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Engine Control System Components (12 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Control System Components (13 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Components (14 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Engine Control System Components (15 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Engine Control System Components (16 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.
