Engine Control System (Introduction) (CALIFORNIA)
>>
System Description
>>
Tumble Control Valve Control
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

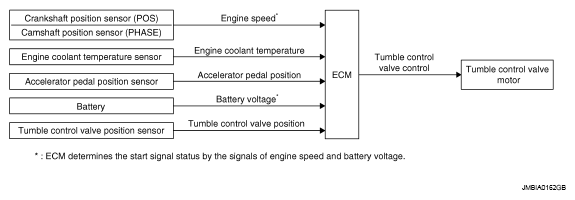

Fig 1: Tumble Control Valve Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
