Removal and Installation: Removal

  1. Using a suitable tool, release the metal clip and pawls, then lift upward the main power window/door lock switch and finisher (2) as an assembly.

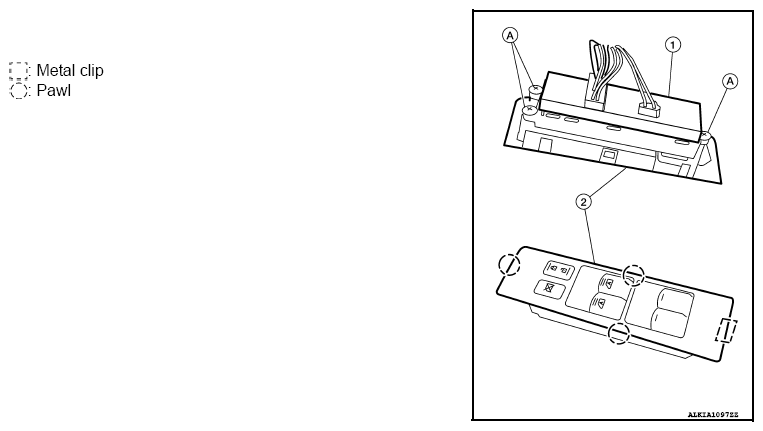

    Fig 1: Identifying Power Window Main Switch, Tab And Switch
    G08981348Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connectors.
  3. Remove the main power window/door lock switch and finisher (2) assembly from the front door finisher.
  4. Remove the three screws (A) from the main power window/door lock switch (1).
  5. Remove the main power window/door lock switch (1) from the main power window/door lock switch finisher (2).
