Connector End Views

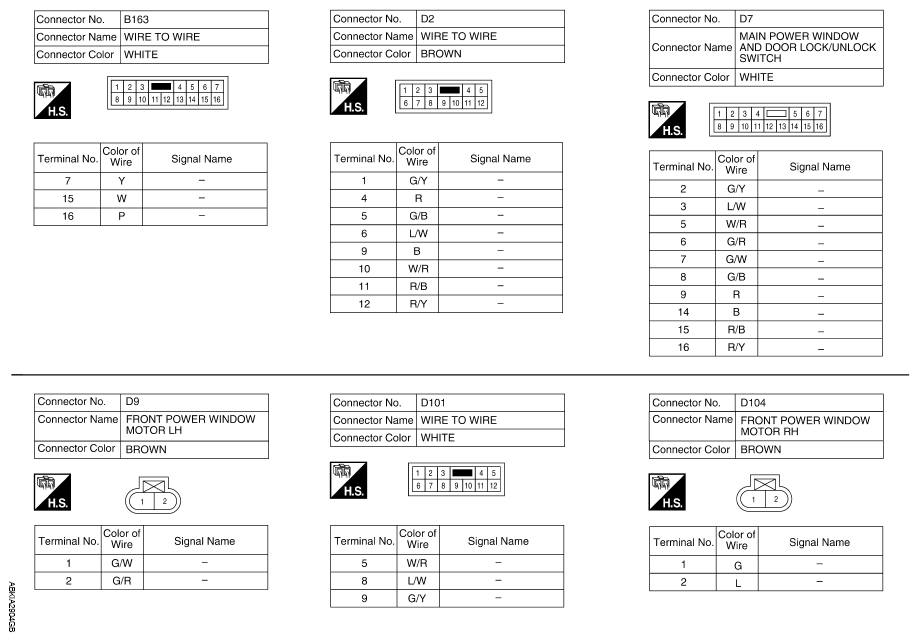

Fig 1: Power Window System Connector End Views King Cab (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Power Window System Connector End Views King Cab (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Power Window System Connector End Views King Cab (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Power Window System Connector End Views King Cab (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Power Window System Connector End Views King Cab (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Power Window System Connector End Views King Cab (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 1: Power Window System Connector End Views Crew Cab (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Power Window System Connector End Views Crew Cab (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Power Window System Connector End Views Crew Cab (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Power Window System Connector End Views Crew Cab (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Power Window System Connector End Views Crew Cab (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Power Window System Connector End Views Crew Cab (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
