Connector End Views

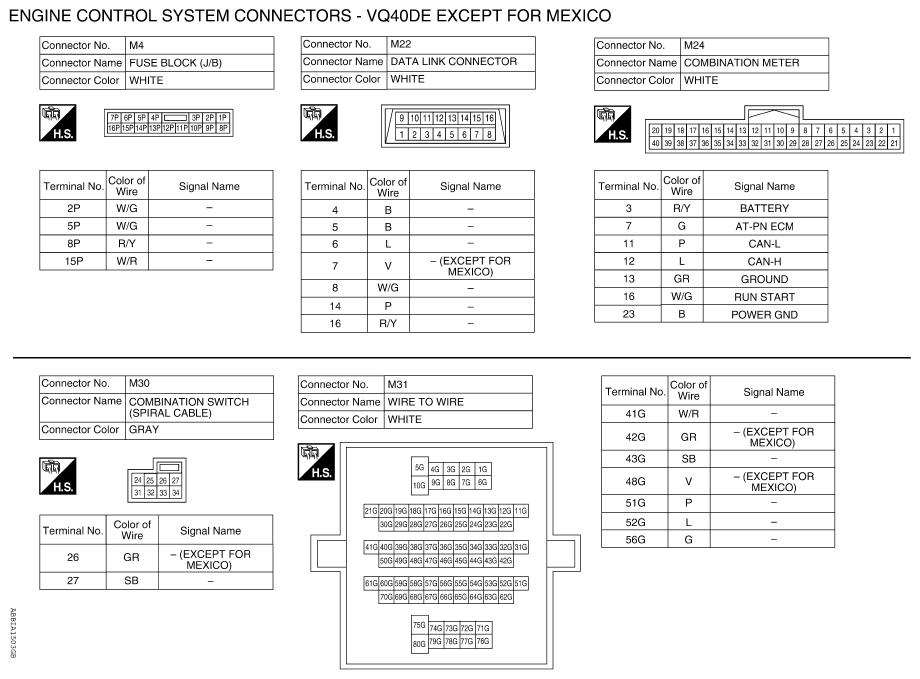

Fig 1: Engine Control System Connector End Views VQ40DE Except For Mexico (1 Of 17)
G08968817Courtesy of NISSAN NORTH AMERICA, INC.

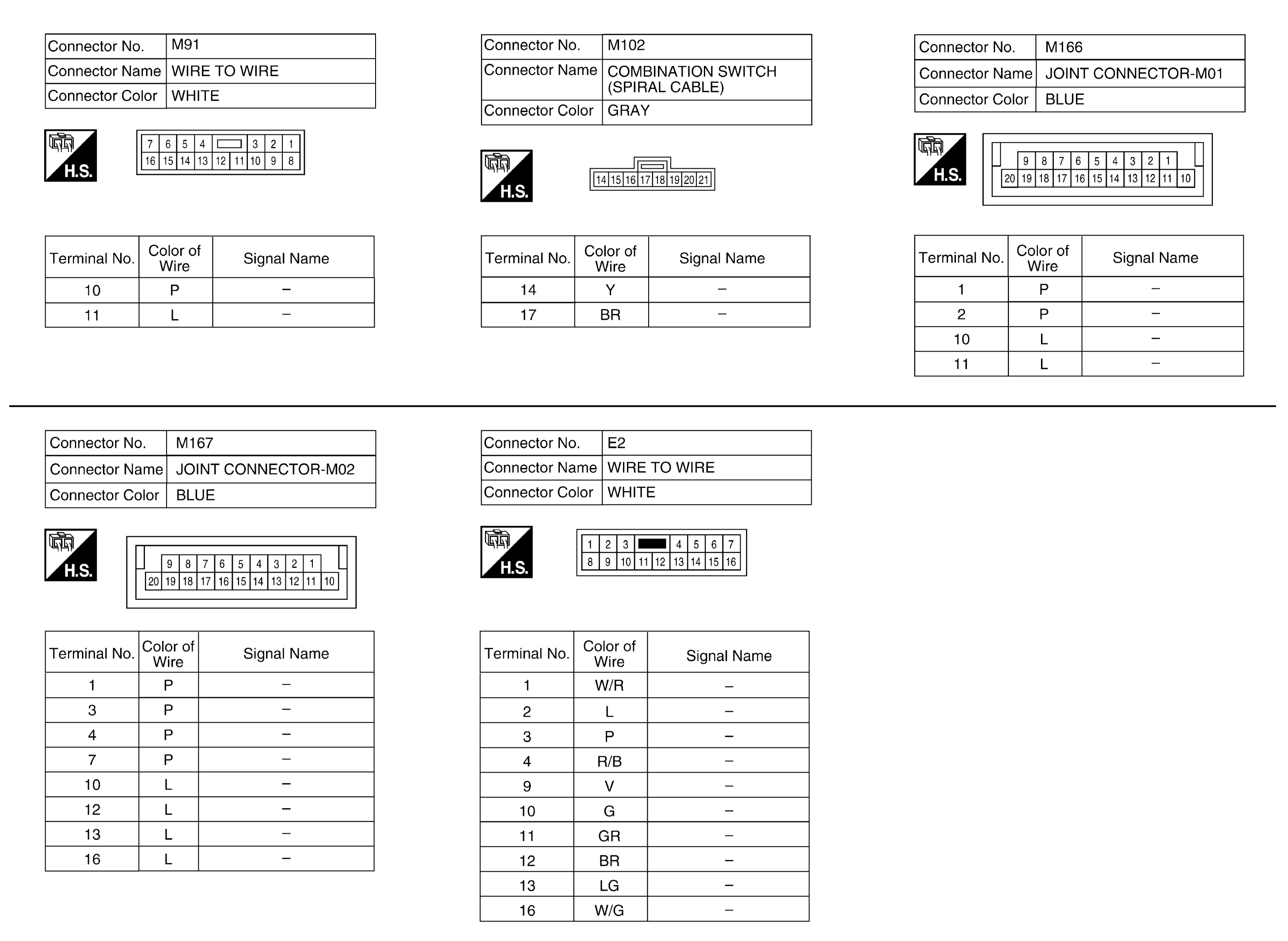

Fig 2: Engine Control System Connector End Views VQ40DE Except For Mexico (2 Of 17)
G08968818Courtesy of NISSAN NORTH AMERICA, INC.

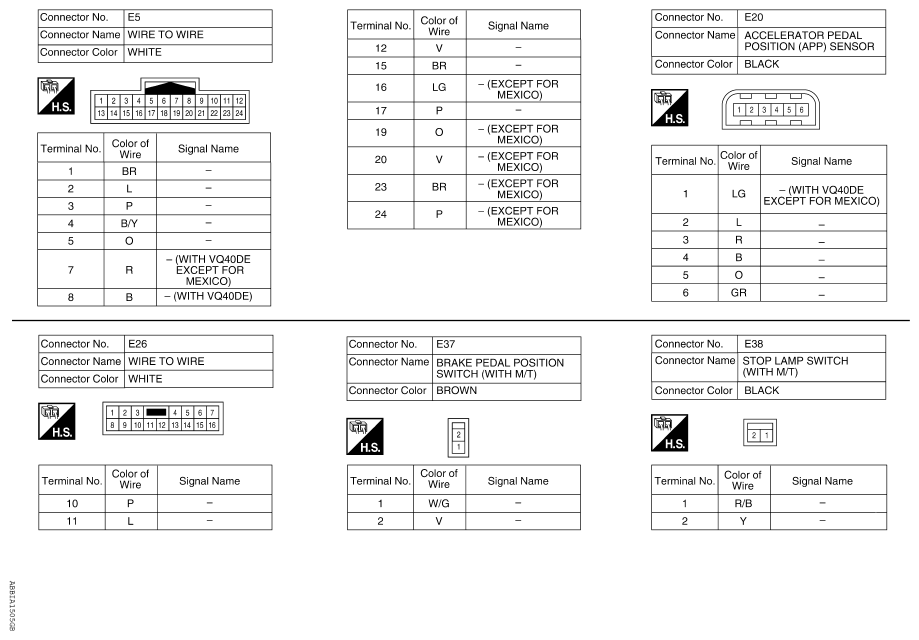

Fig 3: Engine Control System Connector End Views VQ40DE Except For Mexico (3 Of 17)
G08968819Courtesy of NISSAN NORTH AMERICA, INC.

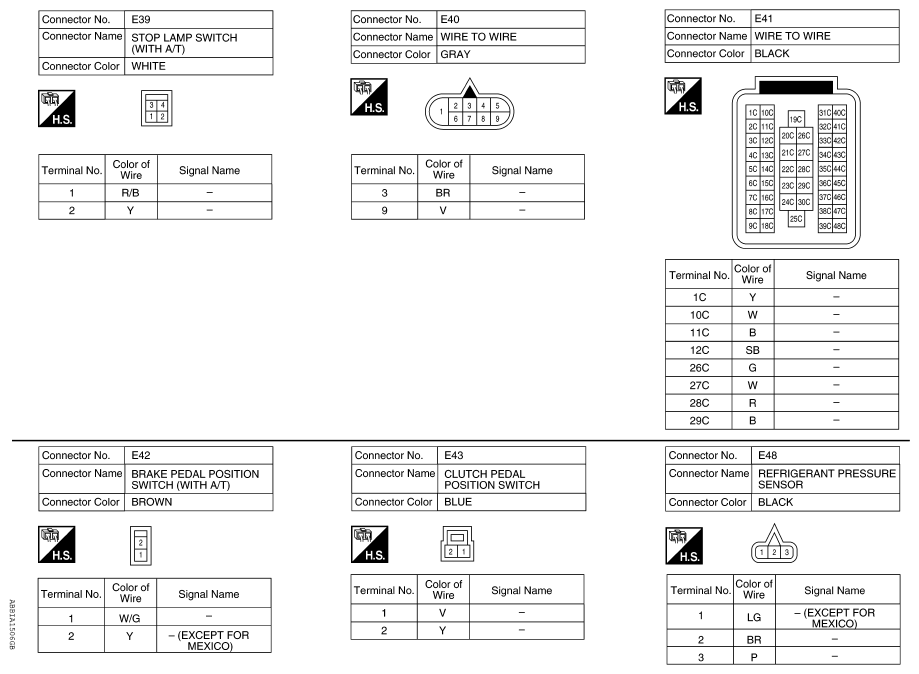

Fig 4: Engine Control System Connector End Views VQ40DE Except For Mexico (4 Of 17)
G08968820Courtesy of NISSAN NORTH AMERICA, INC.

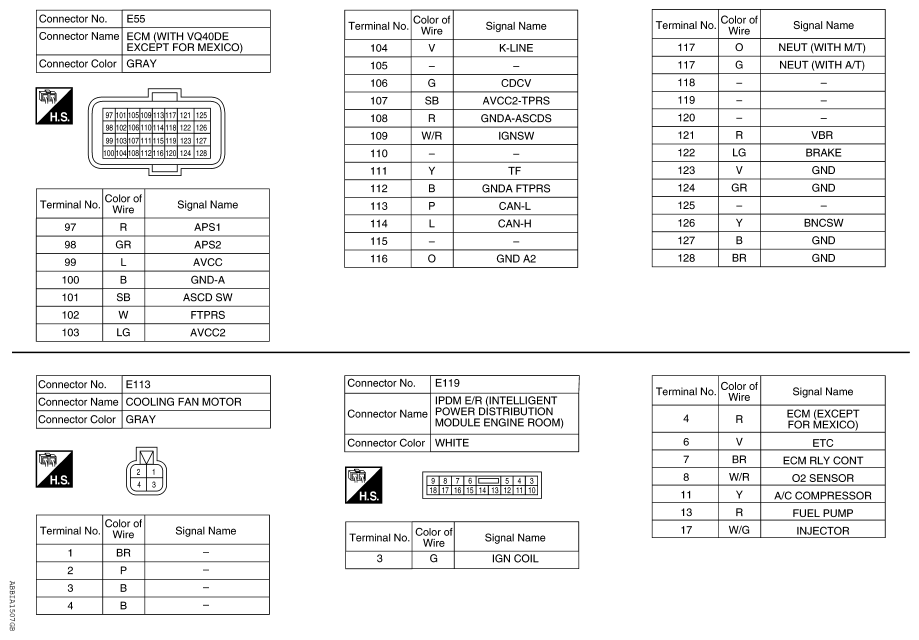

Fig 5: Engine Control System Connector End Views VQ40DE Except For Mexico (5 Of 17)
G08968821Courtesy of NISSAN NORTH AMERICA, INC.

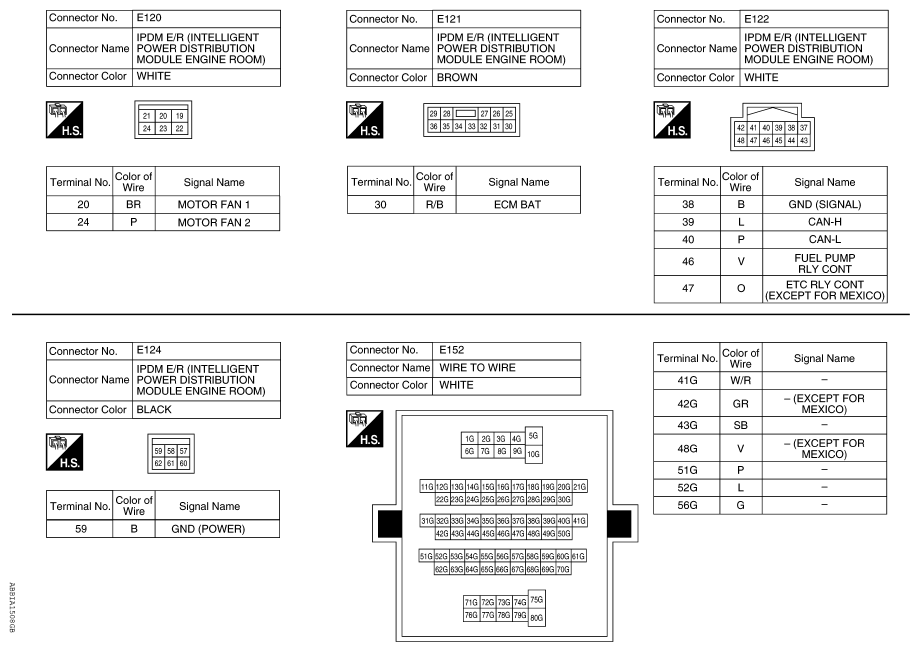

Fig 6: Engine Control System Connector End Views VQ40DE Except For Mexico (6 Of 17)
G08968822Courtesy of NISSAN NORTH AMERICA, INC.

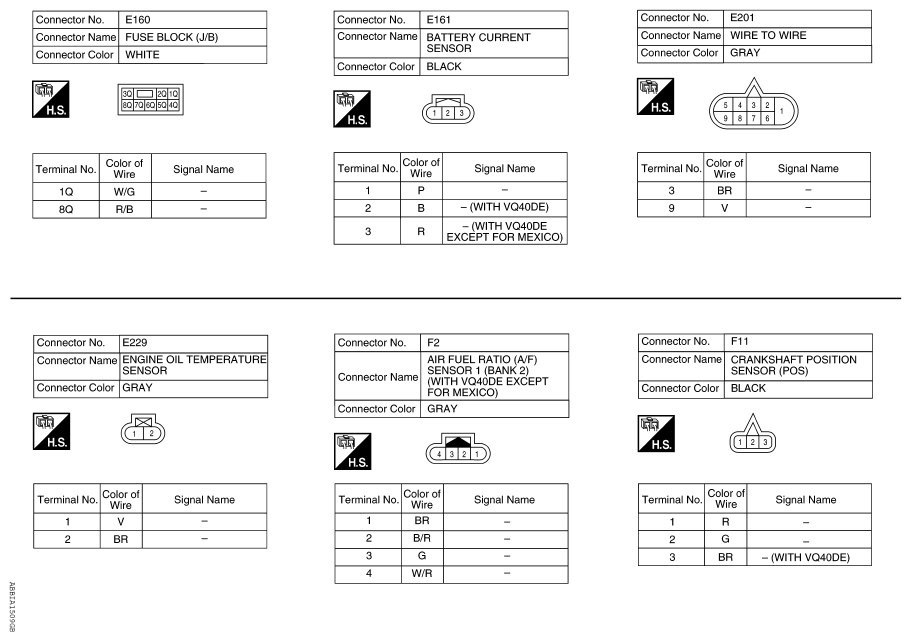

Fig 7: Engine Control System Connector End Views VQ40DE Except For Mexico (7 Of 17)
G08968823Courtesy of NISSAN NORTH AMERICA, INC.

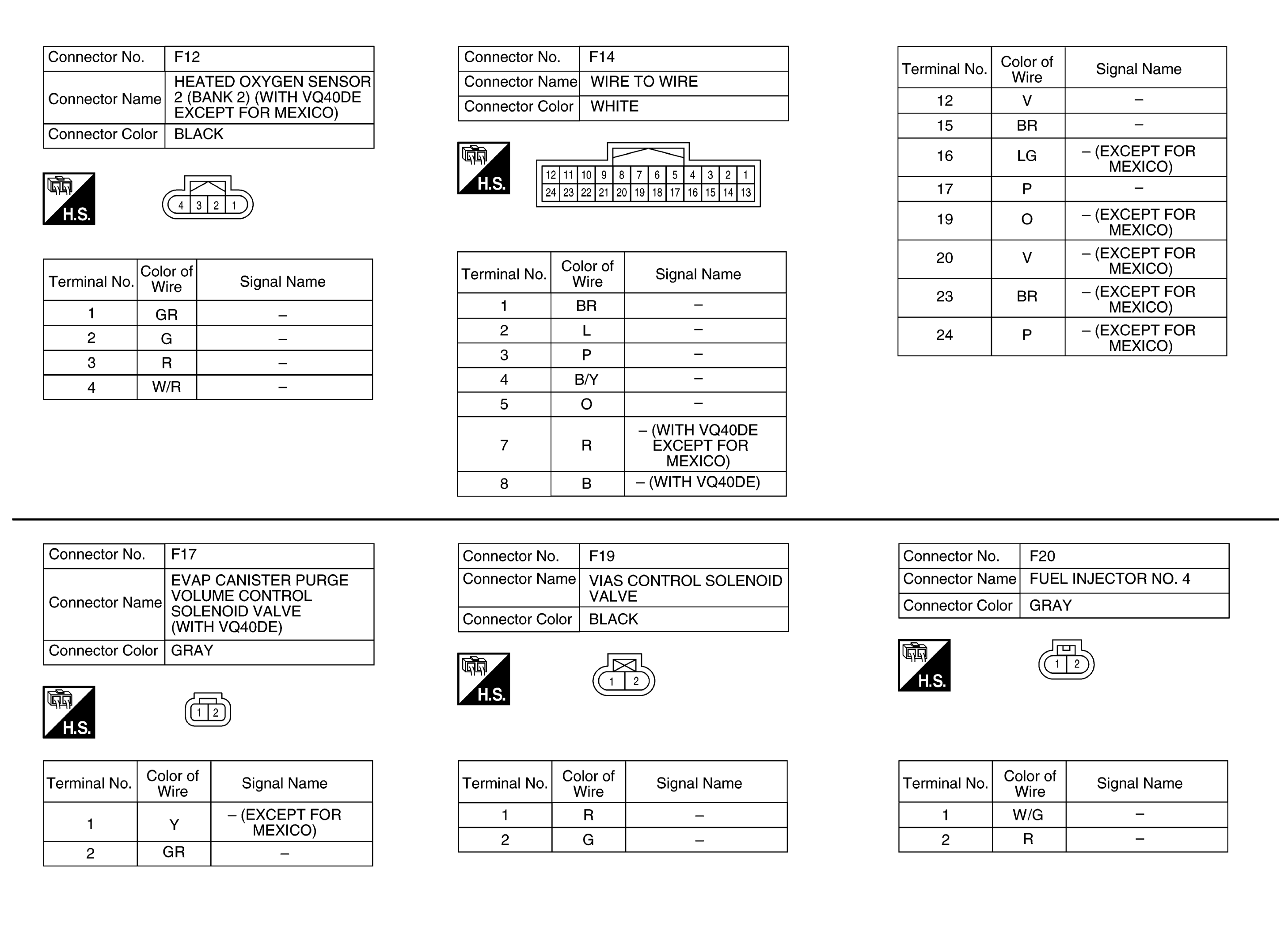

Fig 8: Engine Control System Connector End Views VQ40DE Except For Mexico (8 Of 17)
G08968824Courtesy of NISSAN NORTH AMERICA, INC.

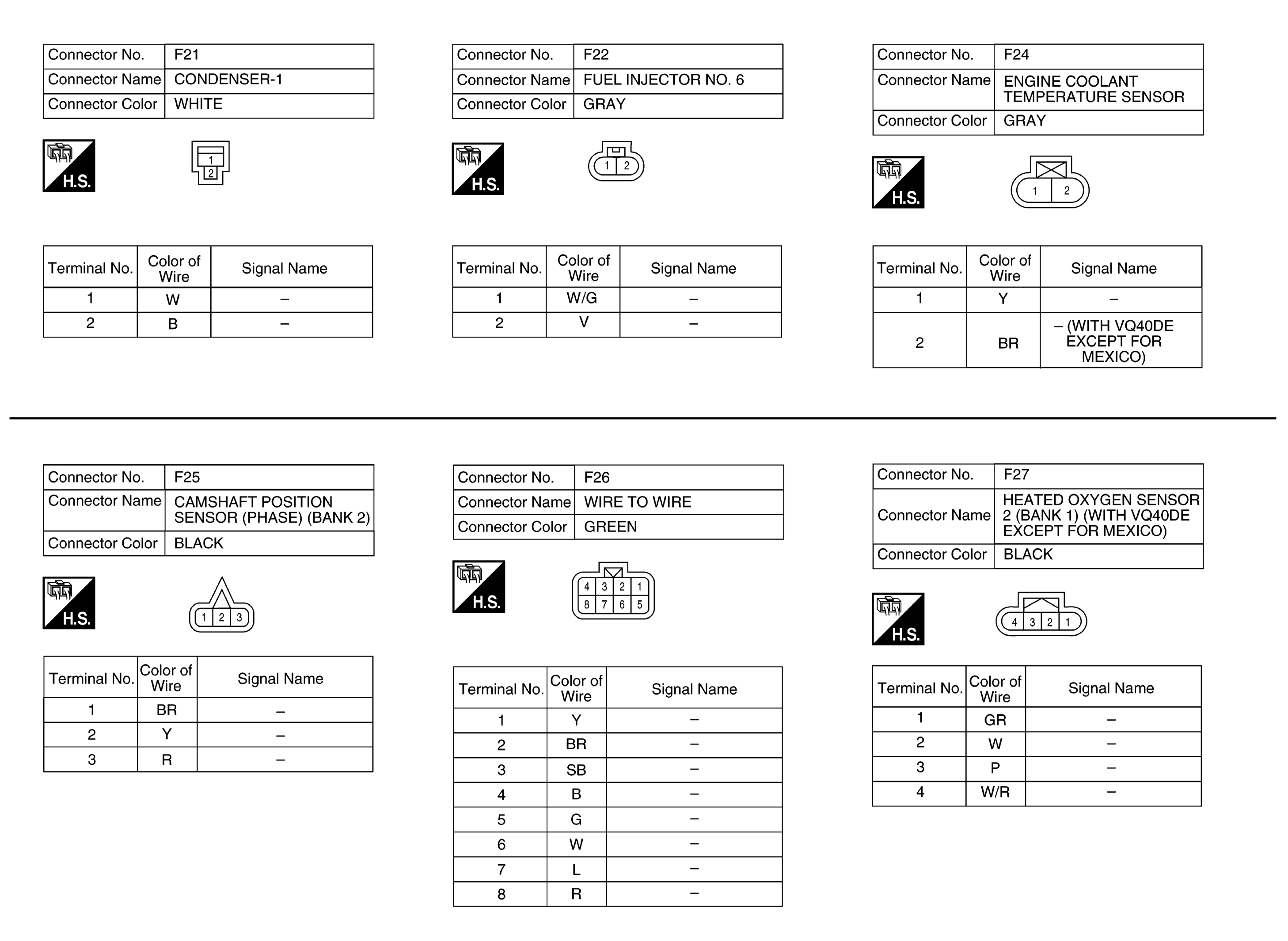

Fig 9: Engine Control System Connector End Views VQ40DE Except For Mexico (9 Of 17)
G08968825Courtesy of NISSAN NORTH AMERICA, INC.

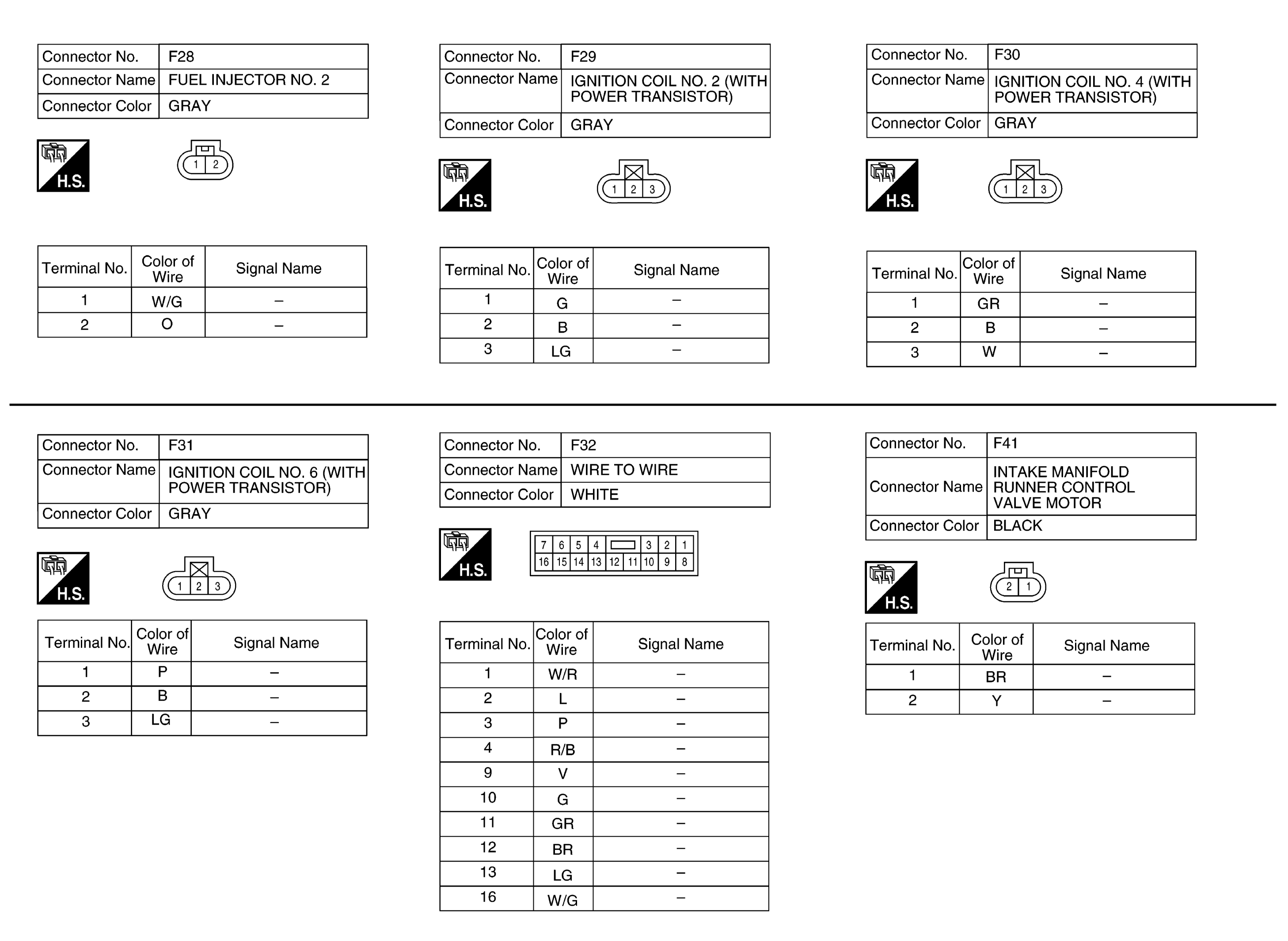

Fig 10: Engine Control System Connector End Views VQ40DE Except For Mexico (10 Of 17)
G08968826Courtesy of NISSAN NORTH AMERICA, INC.

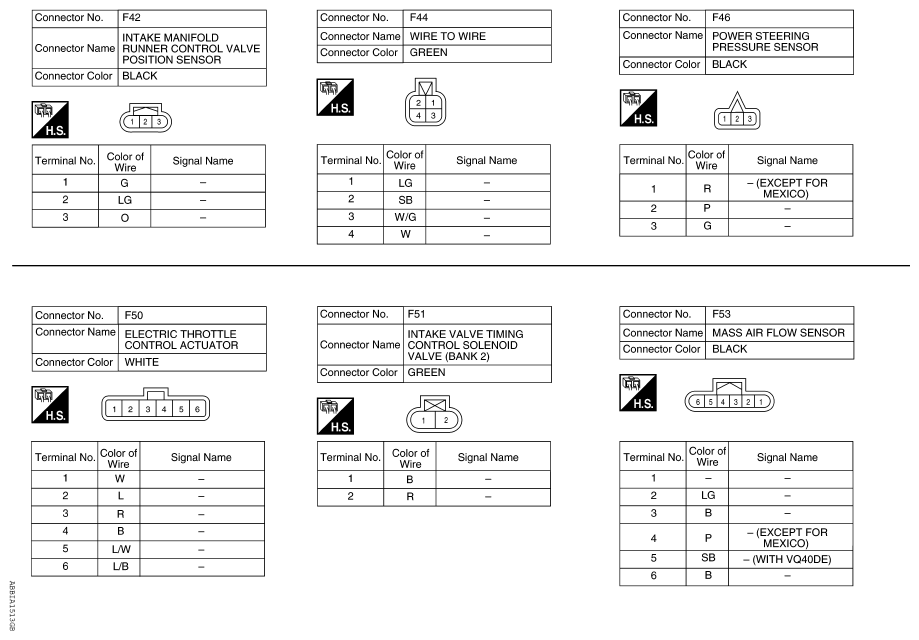

Fig 11: Engine Control System Connector End Views VQ40DE Except For Mexico (11 Of 17)
G08968827Courtesy of NISSAN NORTH AMERICA, INC.

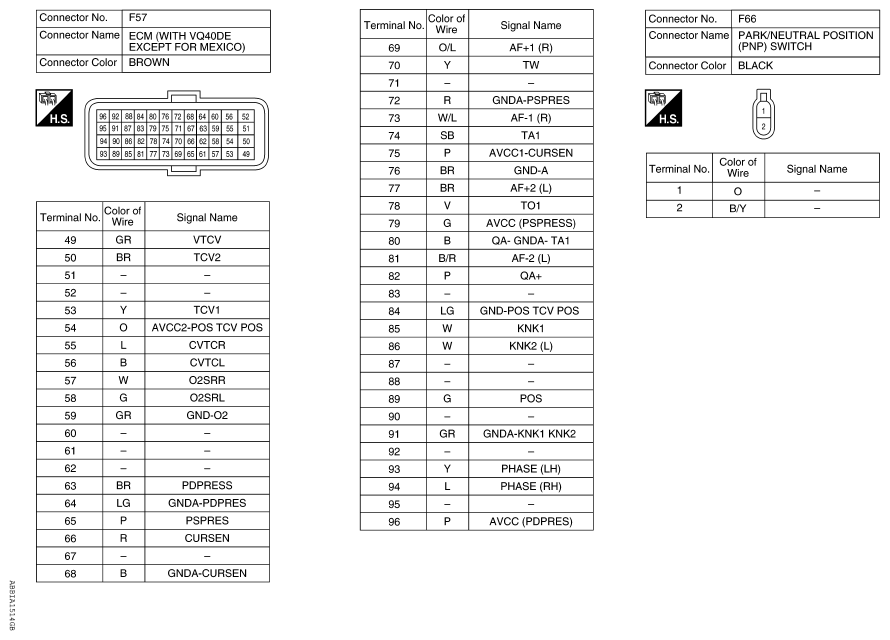

Fig 12: Engine Control System Connector End Views VQ40DE Except For Mexico (12 Of 17)
G08968828Courtesy of NISSAN NORTH AMERICA, INC.

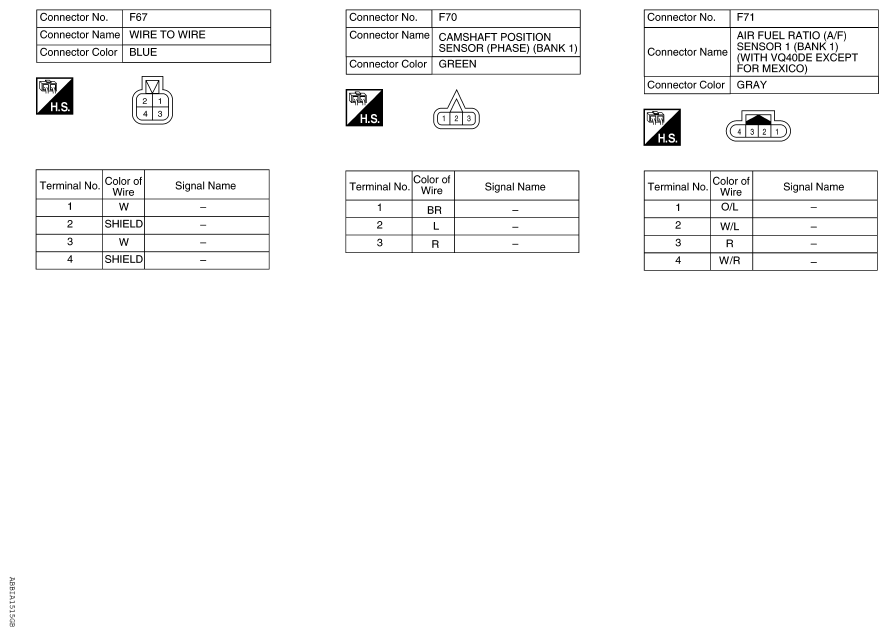

Fig 13: Engine Control System Connector End Views VQ40DE Except For Mexico (13 Of 17)
G08968829Courtesy of NISSAN NORTH AMERICA, INC.

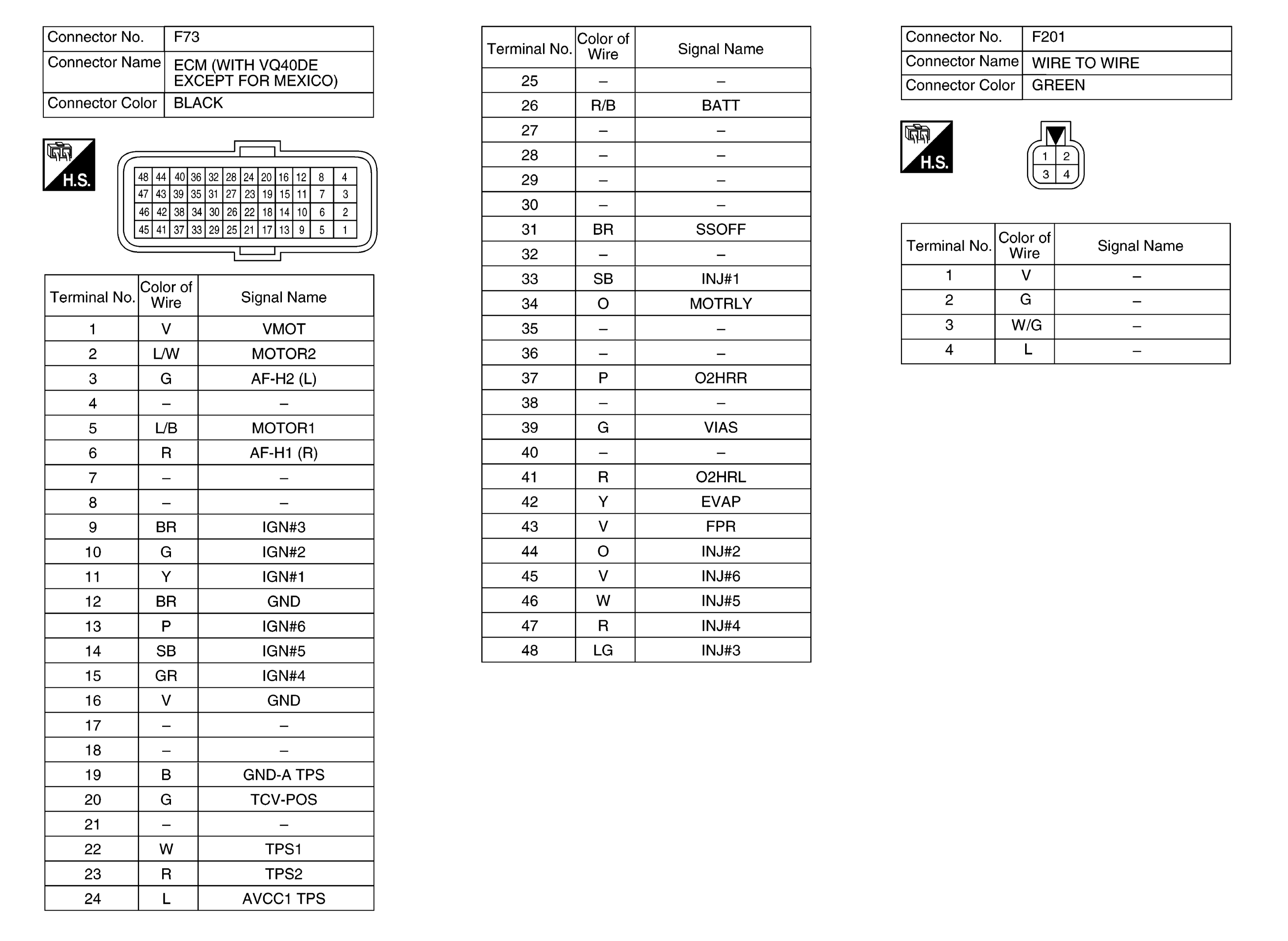

Fig 14: Engine Control System Connector End Views VQ40DE Except For Mexico (14 Of 17)
G08968830Courtesy of NISSAN NORTH AMERICA, INC.

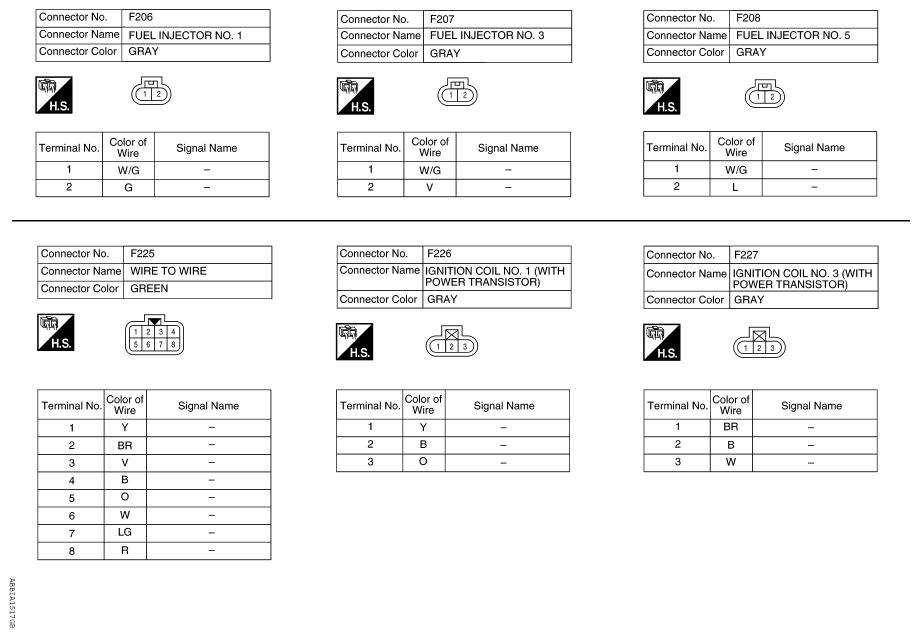

Fig 15: Engine Control System Connector End Views VQ40DE Except For Mexico (15 Of 17)
G08968831Courtesy of NISSAN NORTH AMERICA, INC.

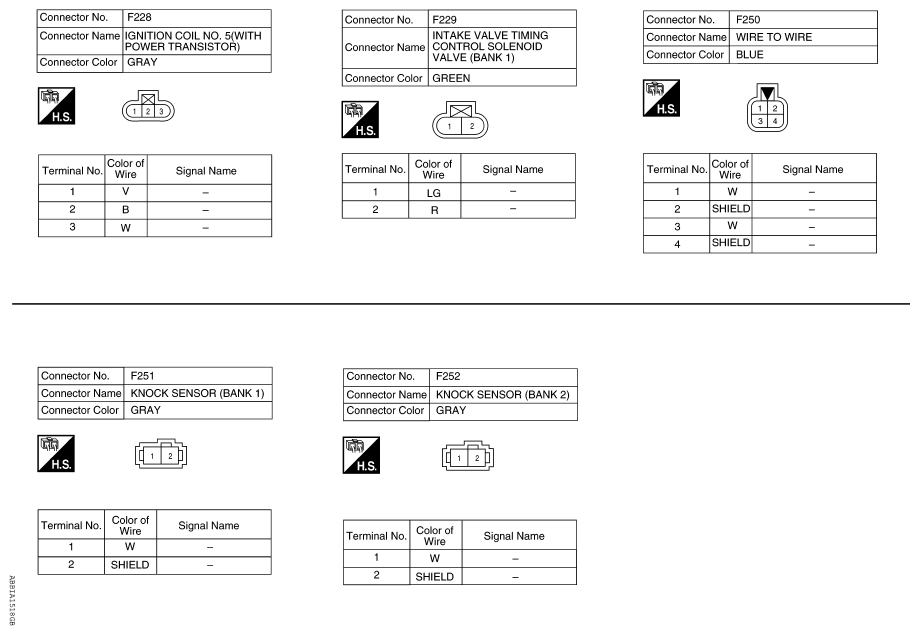

Fig 16: Engine Control System Connector End Views VQ40DE Except For Mexico (16 Of 17)
G08968832Courtesy of NISSAN NORTH AMERICA, INC.

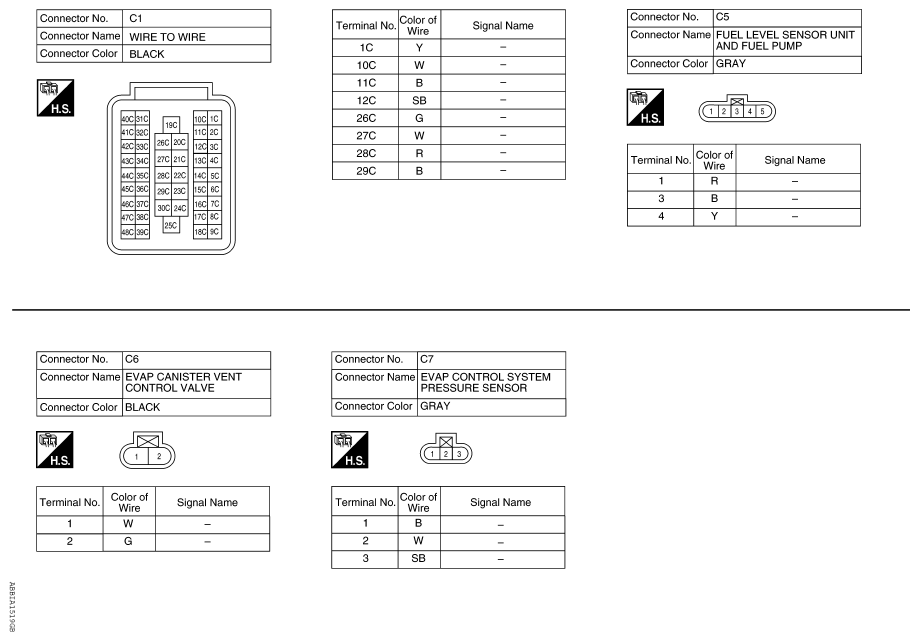

Fig 17: Engine Control System Connector End Views VQ40DE Except For Mexico (17 Of 17)
G08968833Courtesy of NISSAN NORTH AMERICA, INC.
