Exhaust Compartment

2WD

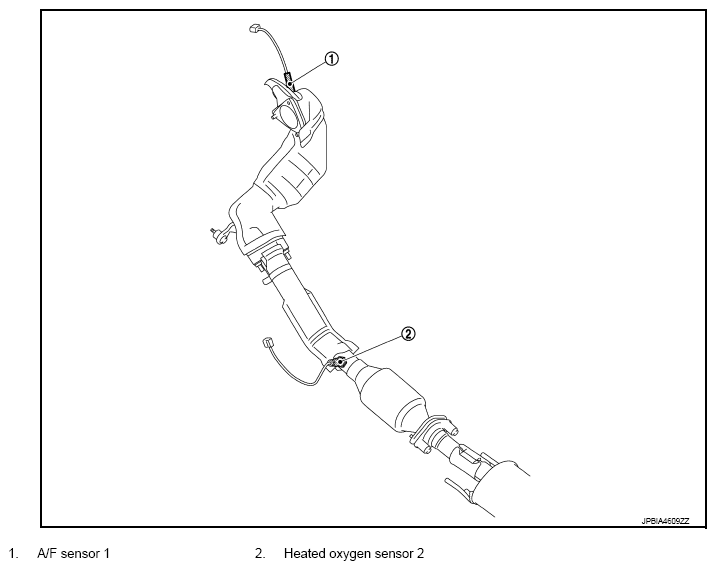

Fig 1: Identifying Exhaust Compartment Components Location (2WD)
G08690193Courtesy of NISSAN NORTH AMERICA, INC.

AWD

Fig 2: Identifying Exhaust Compartment Components Location (AWD)
G08690194Courtesy of NISSAN NORTH AMERICA, INC.
