Turbocharger Boost Control Solenoid Valve

Turbocharger boost control solenoid valve is ON/OFF duty controlled by ECM.

And it adjusts the pressure in the diaphragm of the boost control actuator. The longer the turbocharger boost control solenoid valve is ON, the higher the boost is increased.

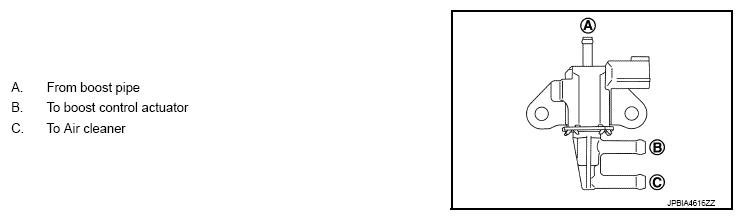

Fig 1: Identifying Turbocharger Boost Control Solenoid Valve
G08690211Courtesy of NISSAN NORTH AMERICA, INC.
