Removal and Installation: Removal

  1. Remove power window main switch finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove power window main switch (1) from power window main switch finisher (2) using flat-head screw driver (A).

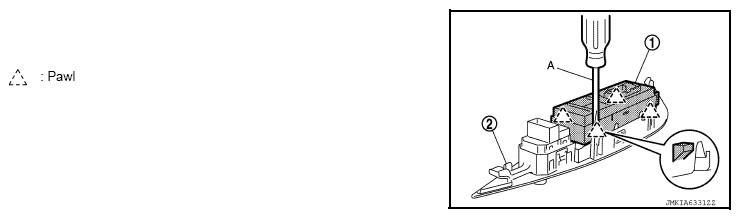

Fig 1: Removing Power Window Main Switch Using Flat-Bladed Screw Driver
G08705068Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Do not fold the pawl of power window main switch finisher.
NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).
