Steering Angle Sensor

Detects the following information and transmits steering angle signal to ABS actuator and electric unit (control unit) via CAN communication.

• Steering wheel rotation amount
• Steering wheel rotation angular velocity
• Steering wheel rotation direction

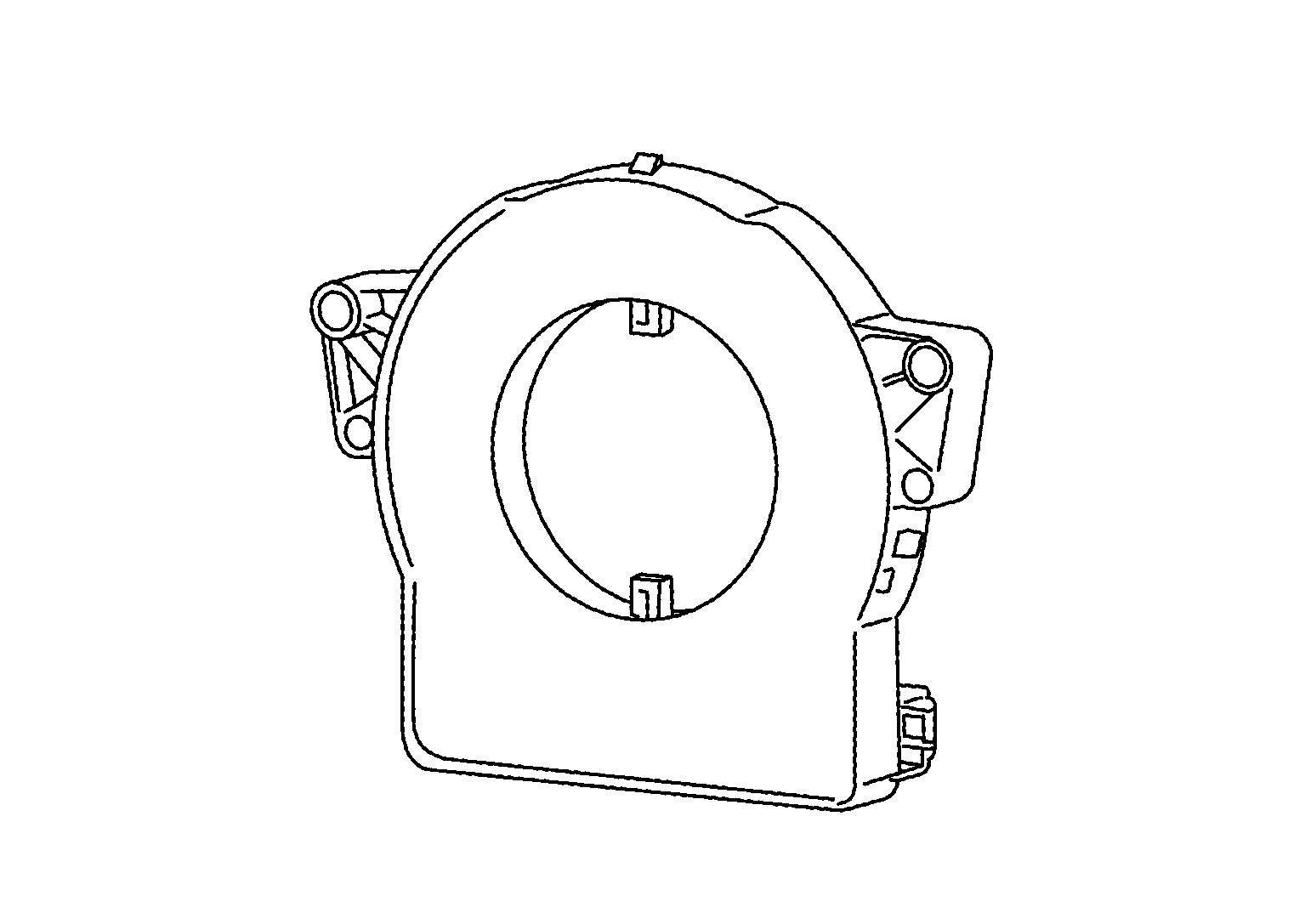

Fig 1: Identifying Steering Angle Sensor

Courtesy of NISSAN NORTH AMERICA, INC.
