Component Parts Location

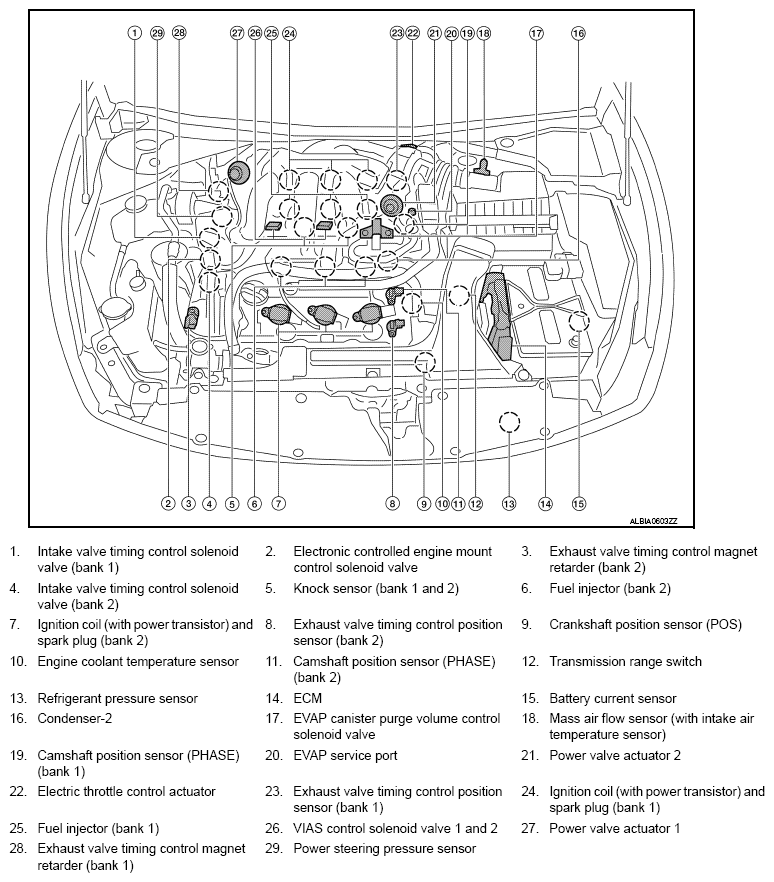

Fig 1: Automatic Speed Control Device System Components Location (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

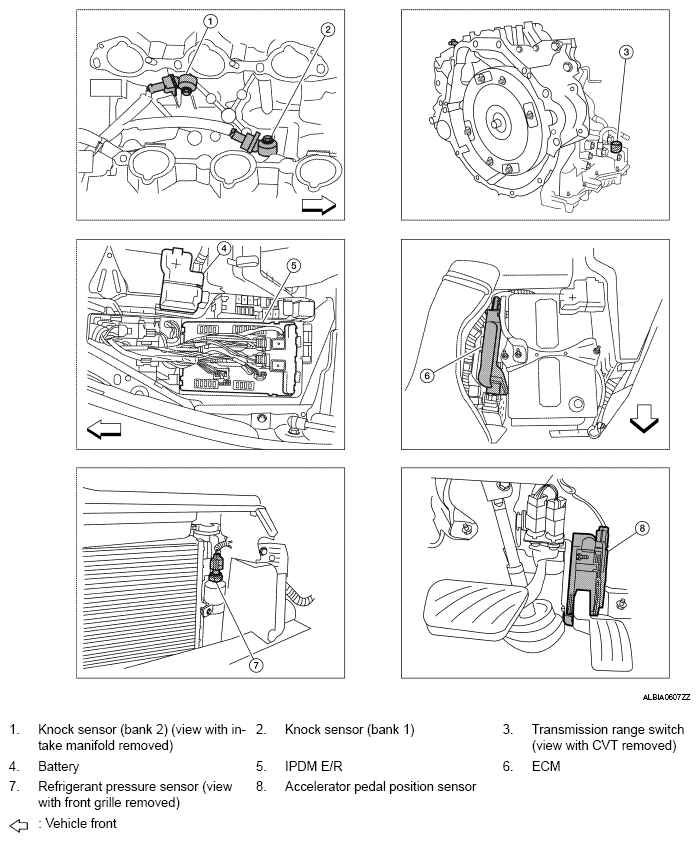

Fig 2: Automatic Speed Control Device System Components Location (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

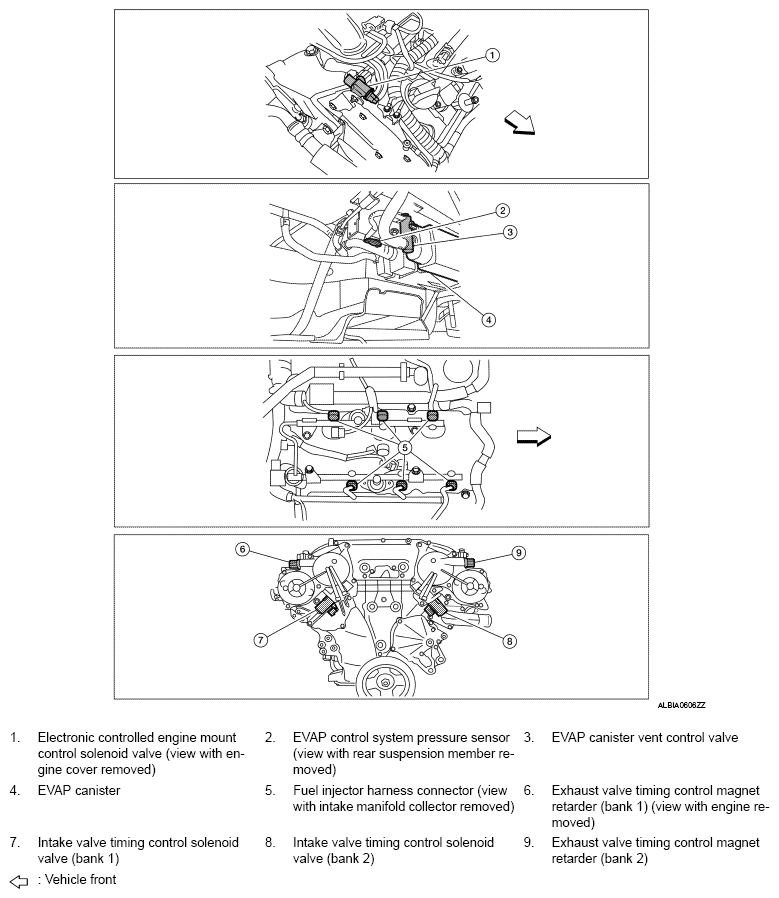

Fig 3: Automatic Speed Control Device System Components Location (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

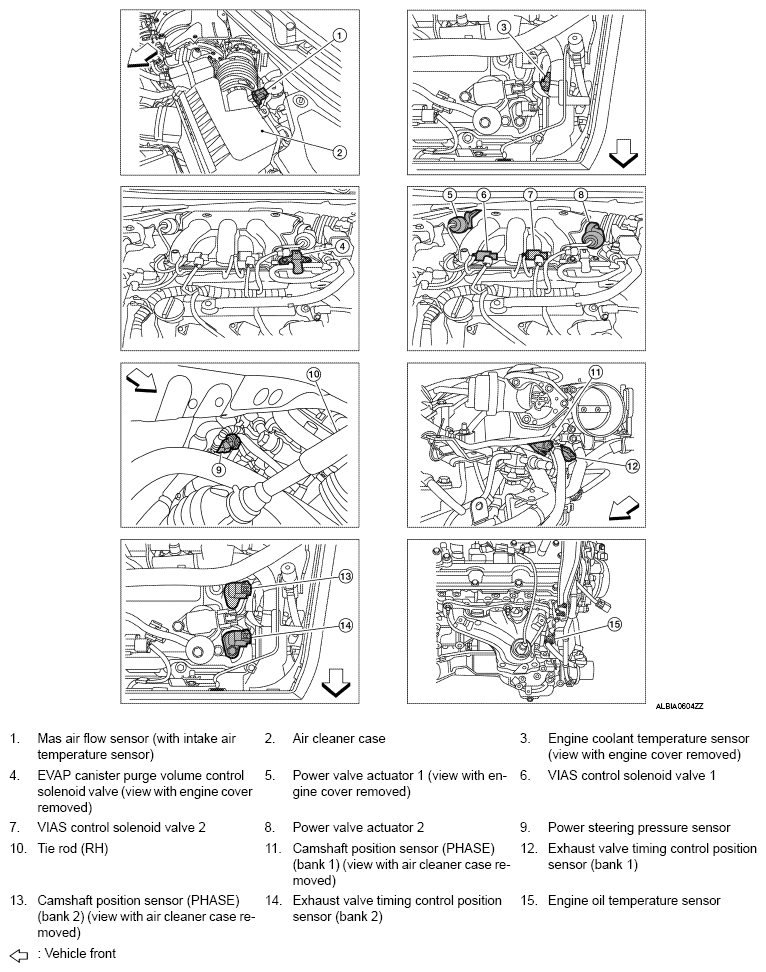

Fig 4: Automatic Speed Control Device System Components Location (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

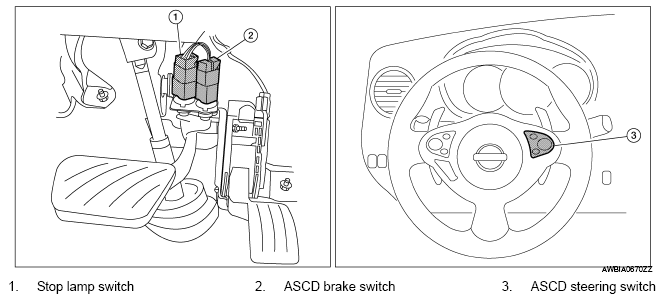

Fig 5: Automatic Speed Control Device System Components Location (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

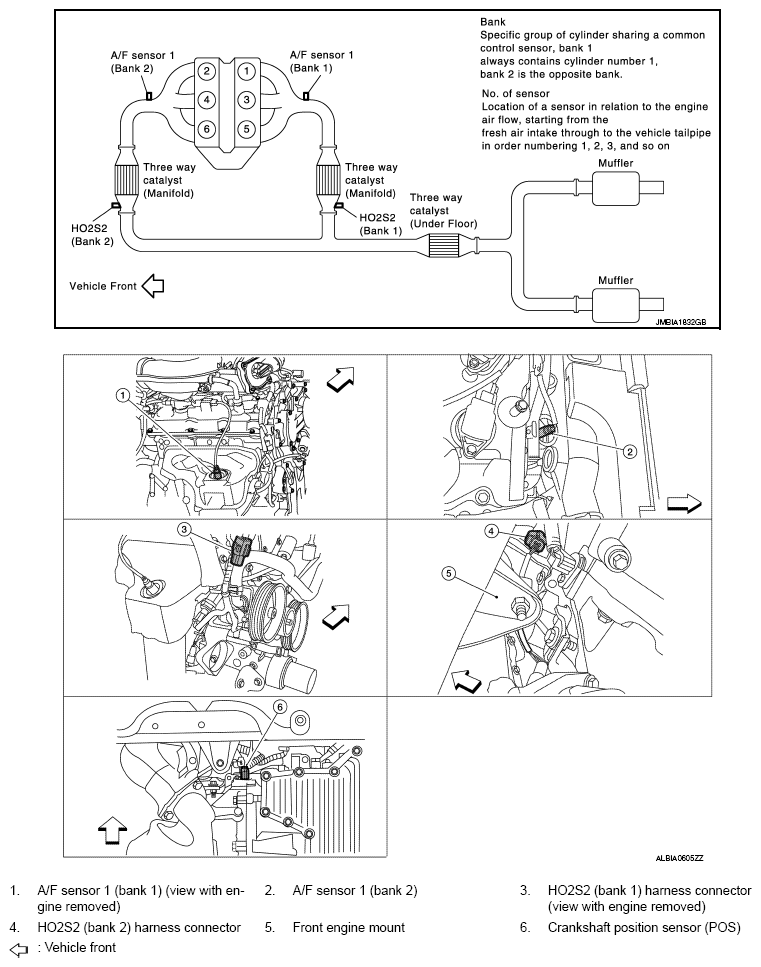

Fig 6: Automatic Speed Control Device System Components Location (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
