Component Parts Location

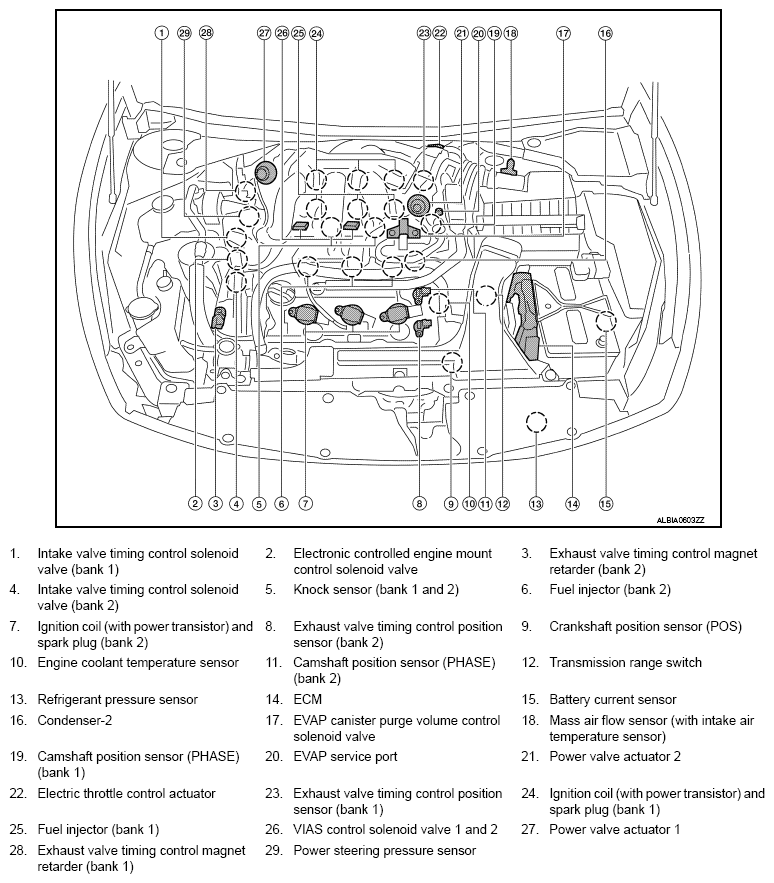

Fig 1: Electronic Controlled Engine Mount System Components Location (1 Of 6)
G08908717Courtesy of NISSAN NORTH AMERICA, INC.

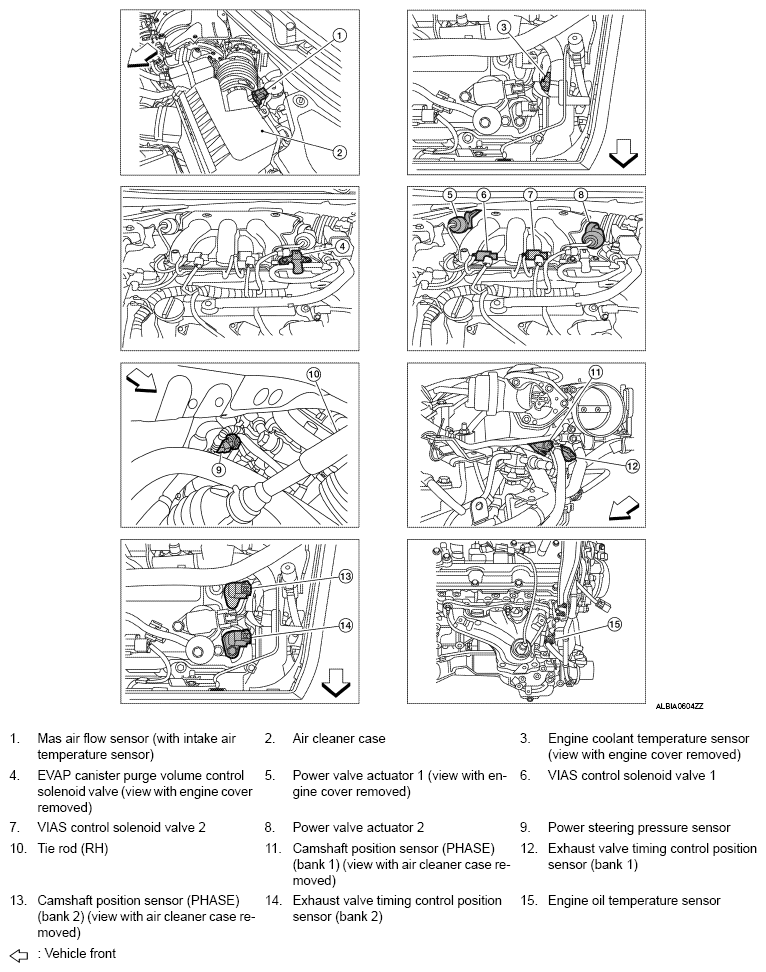

Fig 2: Electronic Controlled Engine Mount System Components Location (2 Of 6)
G08908718Courtesy of NISSAN NORTH AMERICA, INC.

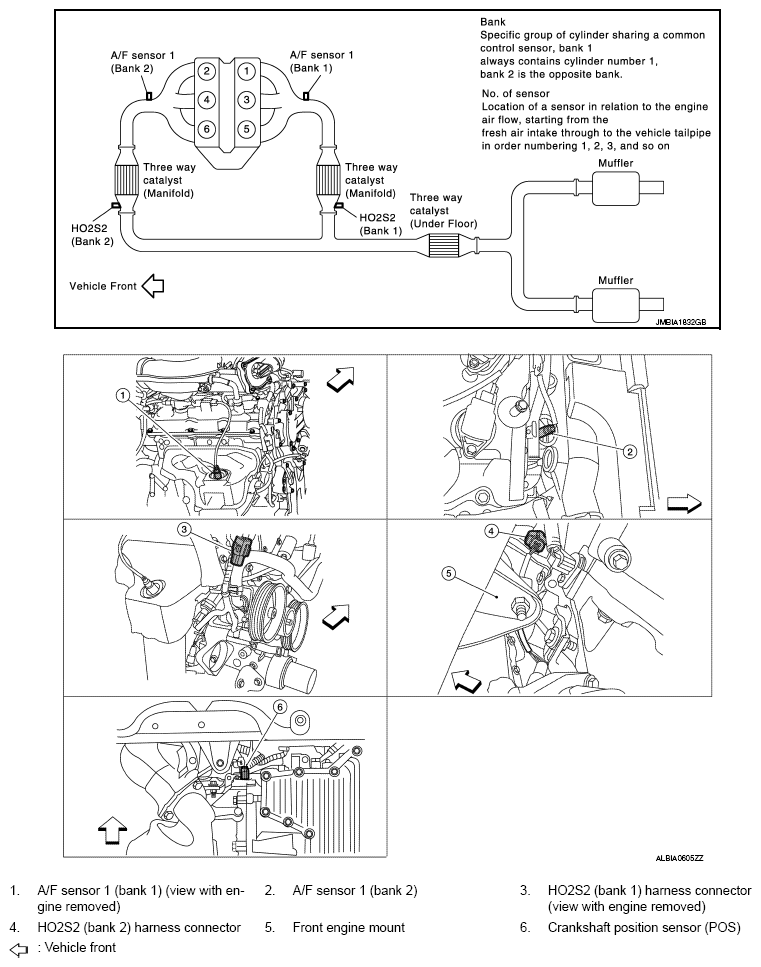

Fig 3: Electronic Controlled Engine Mount System Components Location (3 Of 6)
G08908719Courtesy of NISSAN NORTH AMERICA, INC.

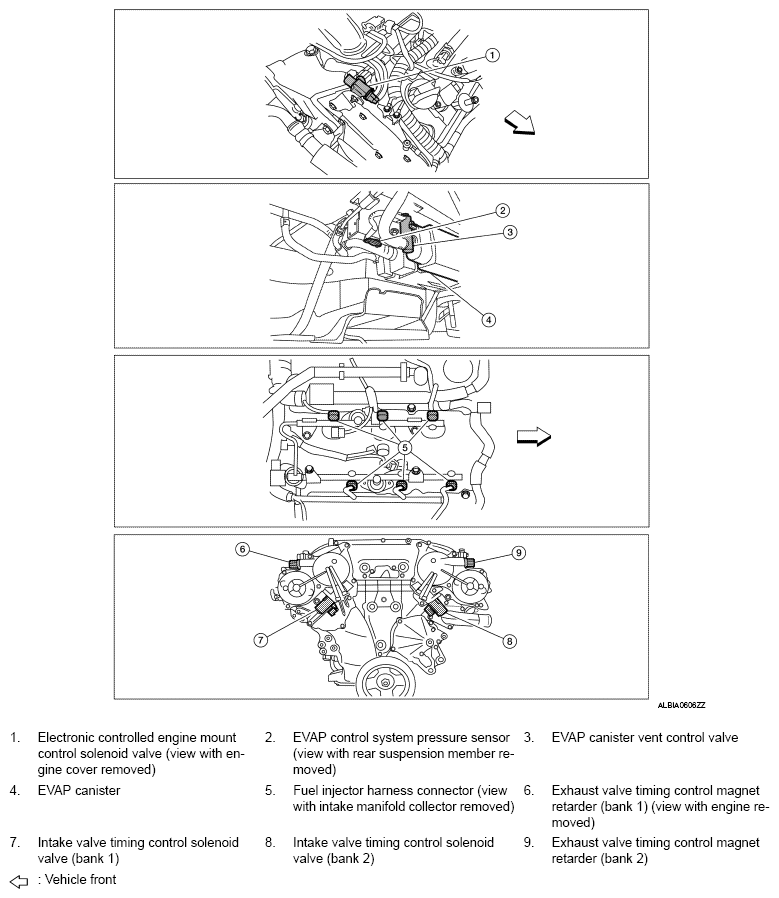

Fig 4: Electronic Controlled Engine Mount System Components Location (4 Of 6)
G08908720Courtesy of NISSAN NORTH AMERICA, INC.

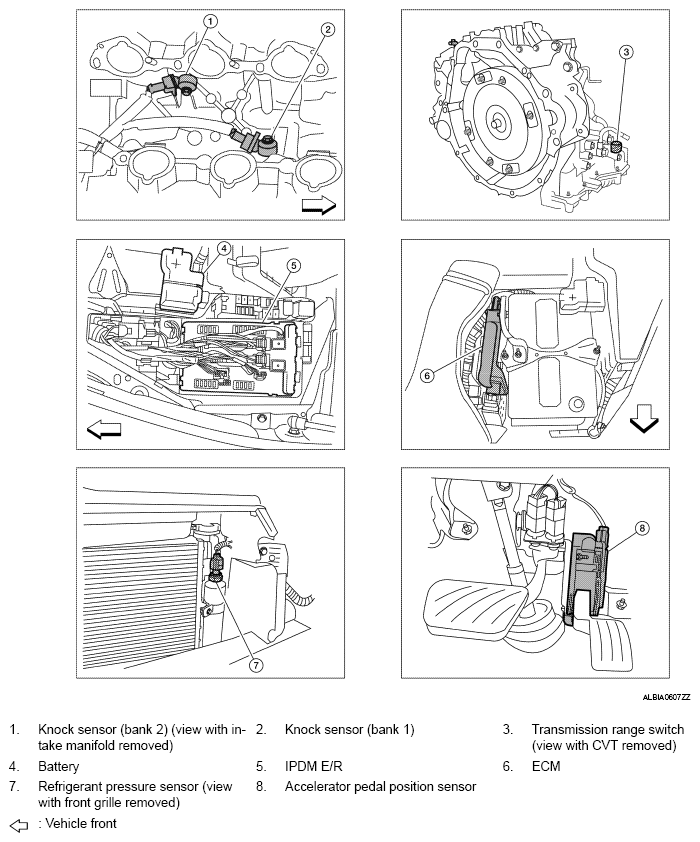

Fig 5: Electronic Controlled Engine Mount System Components Location (5 Of 6)
G08908721Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Electronic Controlled Engine Mount System Components Location (6 Of 6)
G08908722Courtesy of NISSAN NORTH AMERICA, INC.
