Component Function Check

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".

1. INSPECTION START

   Turn ignition switch OFF, and restart engine.

   Does the engine start?

   YES-1: With CONSULT: GO TO 2.

   YES-2: Without CONSULT: GO TO  3.

   NO: Go to "DIAGNOSIS PROCEDURE ".

2. CHECK IGNITION SIGNAL FUNCTION

   With CONSULT

   1. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
   2. Check that each circuit produces a momentary engine speed drop.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Go to "DIAGNOSIS PROCEDURE ".

3. CHECK IGNITION SIGNAL FUNCTION

   Without CONSULT

   1. Let engine idle.
   2. Read the voltage signal between ECM harness connectors.

      ECM				Voltage signal
      +		-
      Connector	Terminal	Connector	Terminal
      F14	9	E10	112	Courtesy of NISSAN NORTH AMERICA, INC.
      	10
      	11
      	18
      	19
      	21

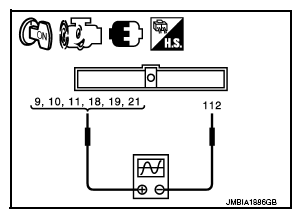

      Fig 1: Reading Voltage Signal Between ECM Connector Terminals

      Courtesy of NISSAN NORTH AMERICA, INC.
      NOTE: The pulse cycle changes depending on RPM at idle.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Go to "DIAGNOSIS PROCEDURE ".
