Connector End Views

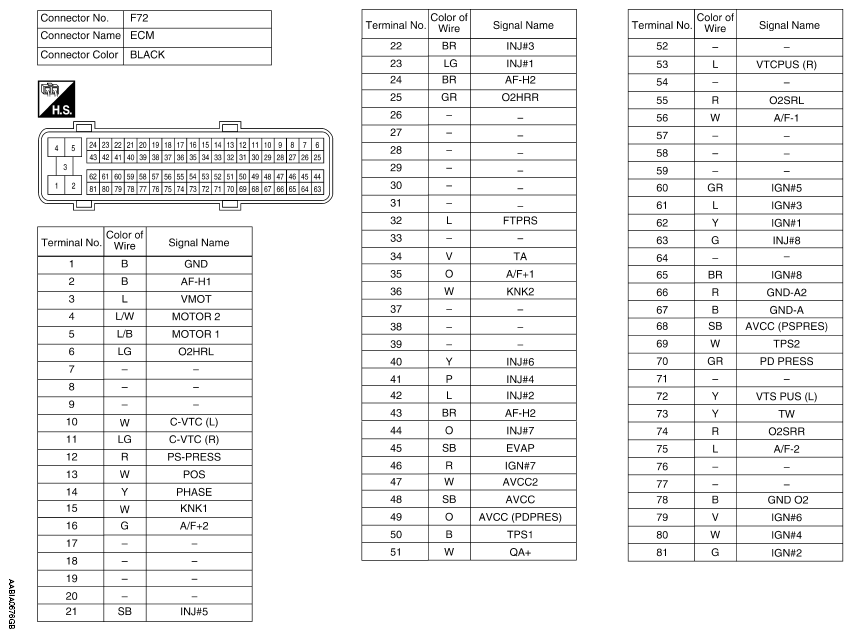

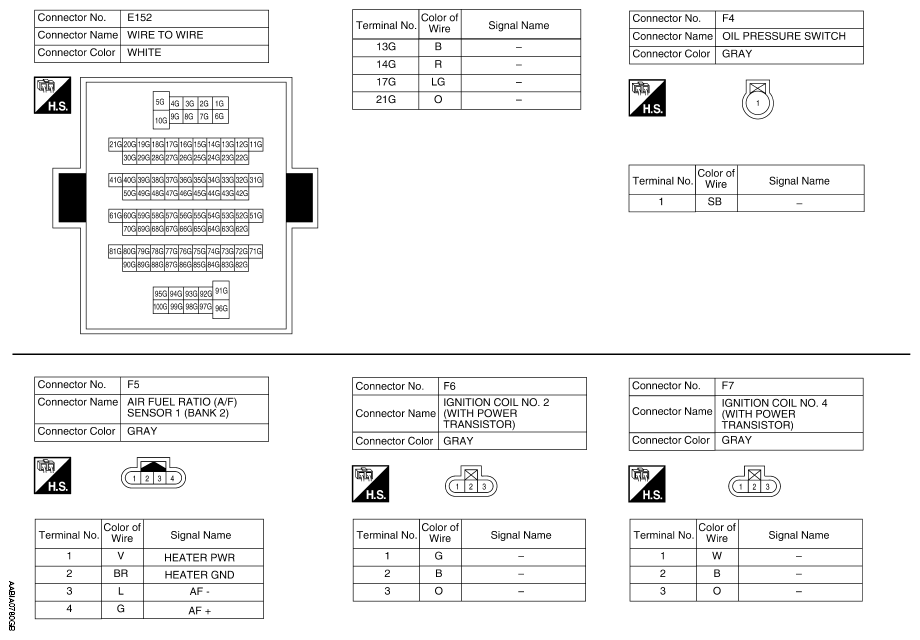

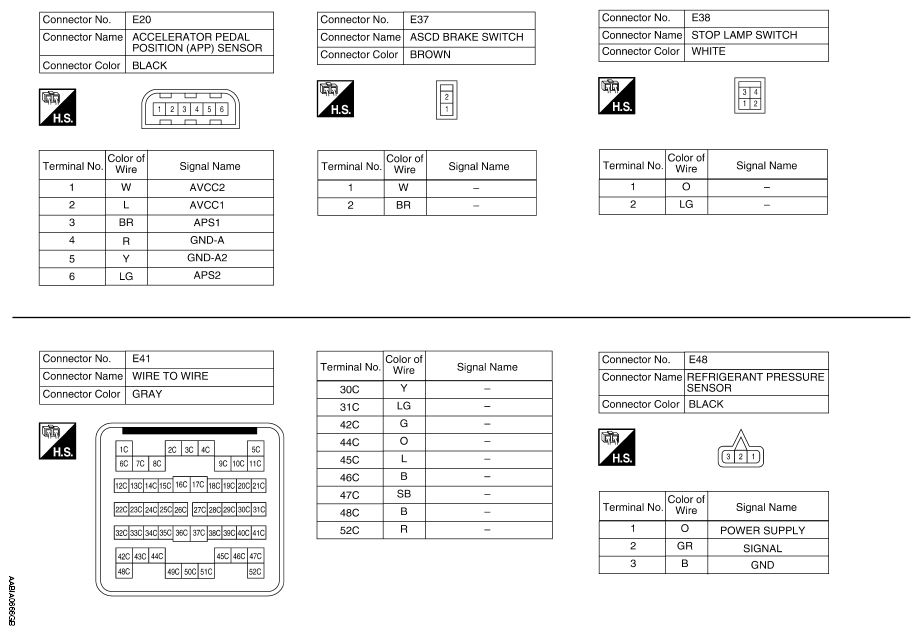

Fig 1: Engine Control System (VK56DE) Connector End Views (1 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

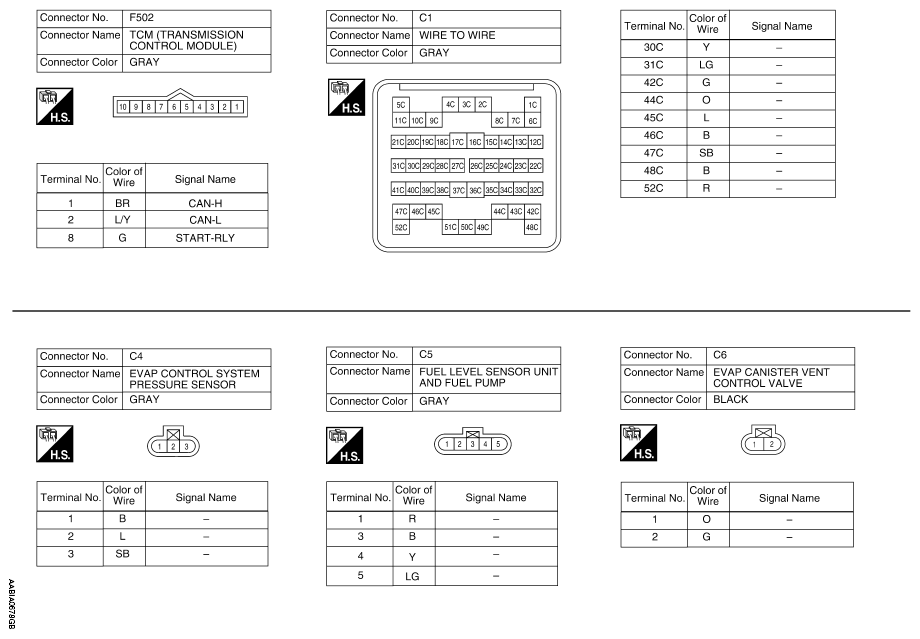

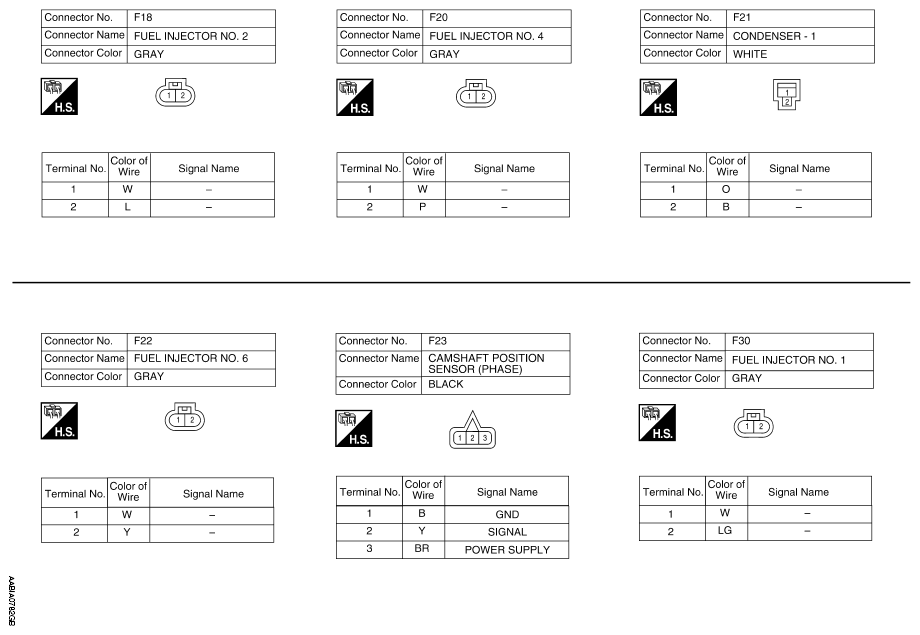

Fig 2: Engine Control System (VK56DE) Connector End Views (2 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

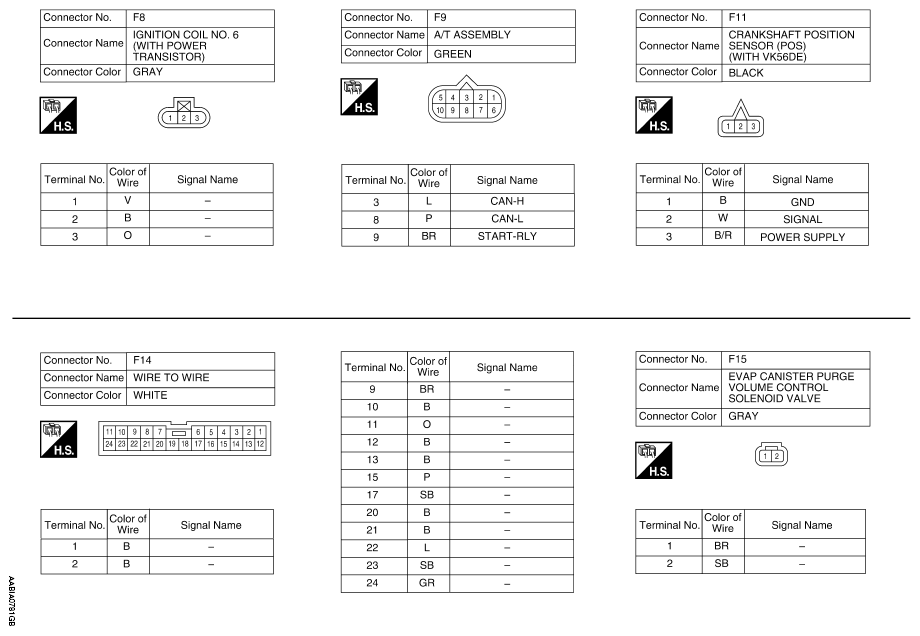

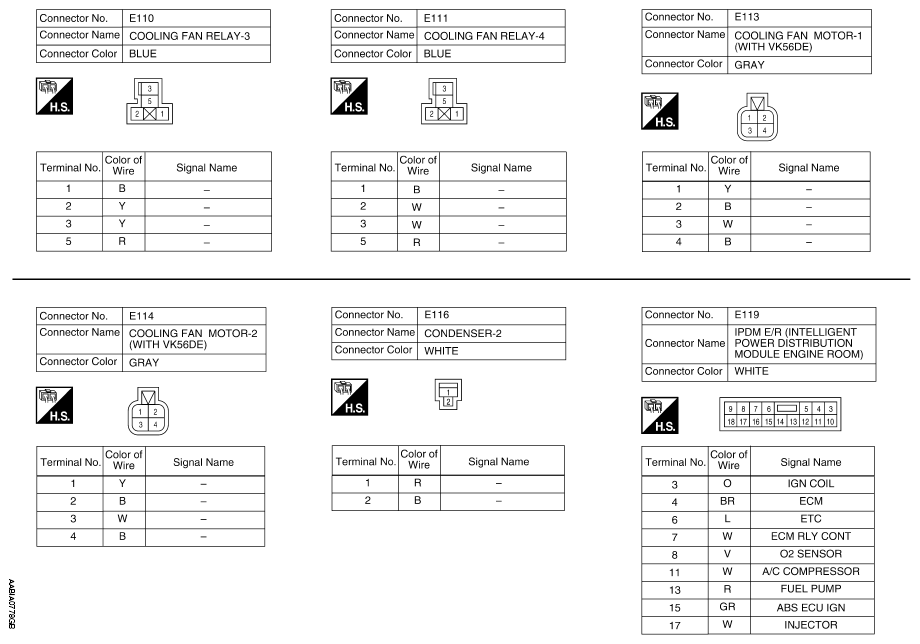

Fig 3: Engine Control System (VK56DE) Connector End Views (3 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

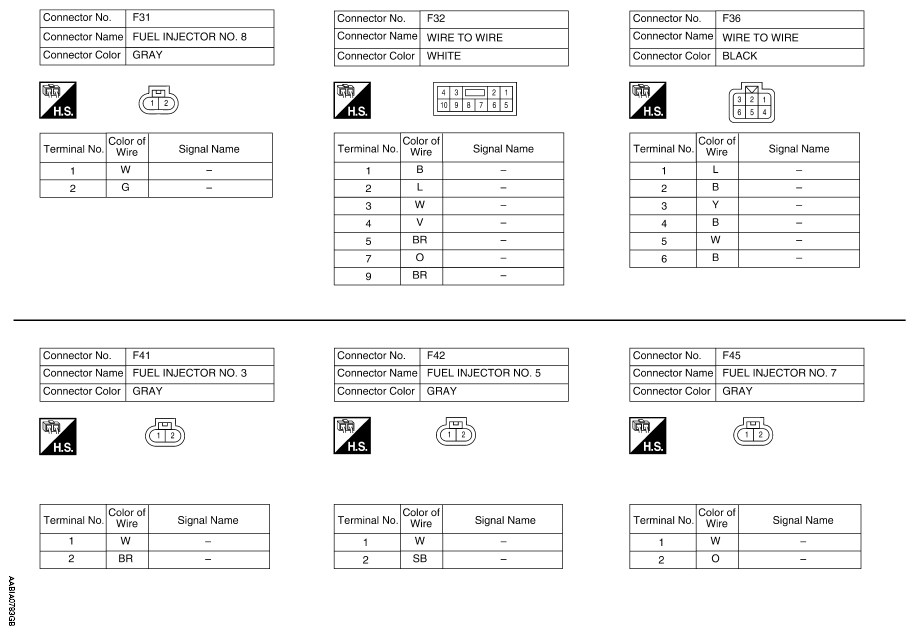

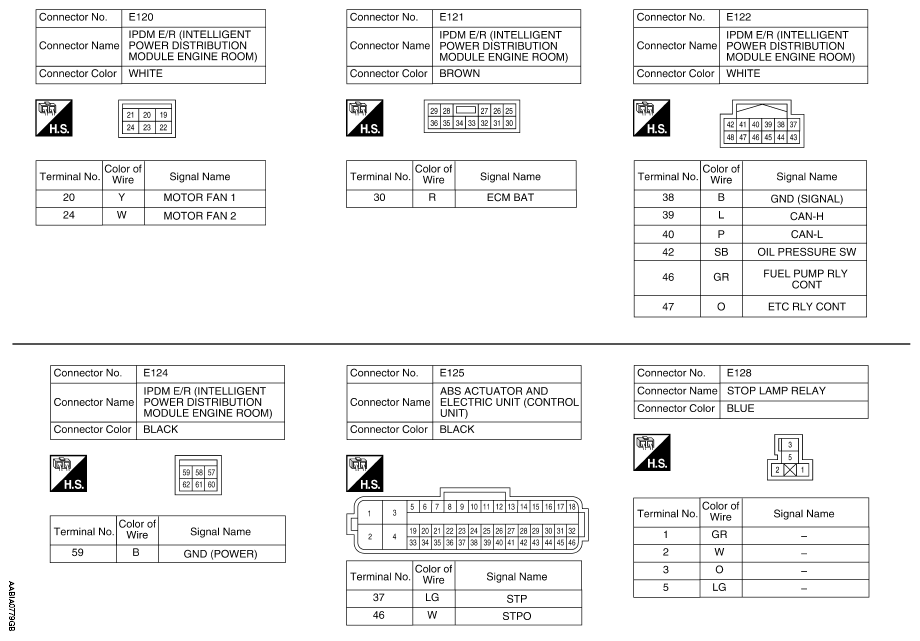

Fig 4: Engine Control System (VK56DE) Connector End Views (4 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

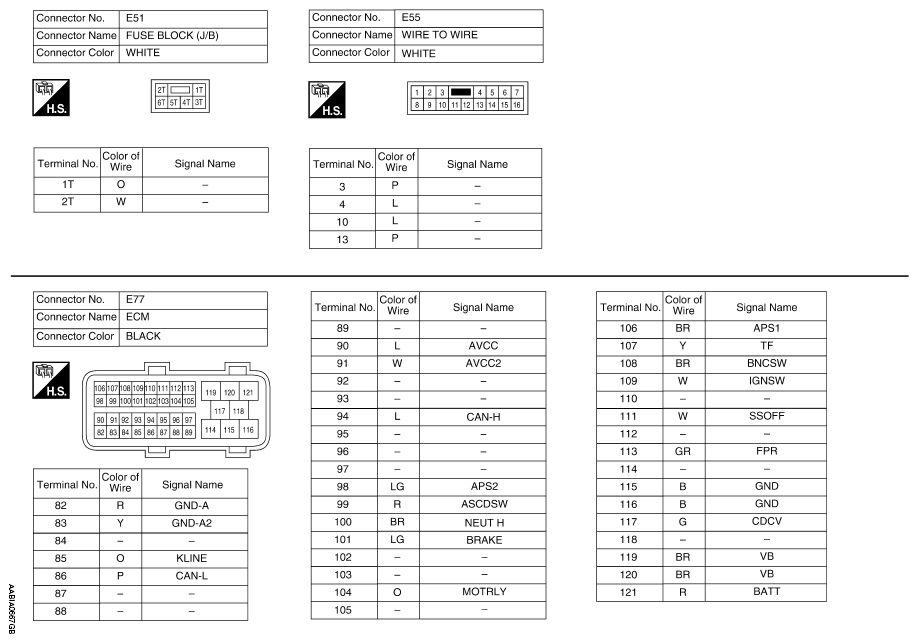

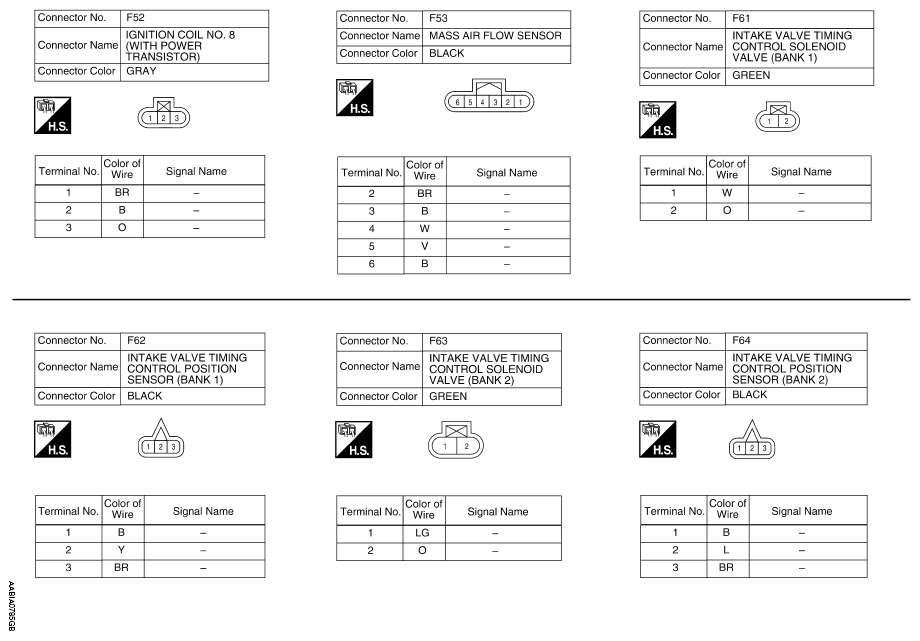

Fig 5: Engine Control System (VK56DE) Connector End Views (5 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

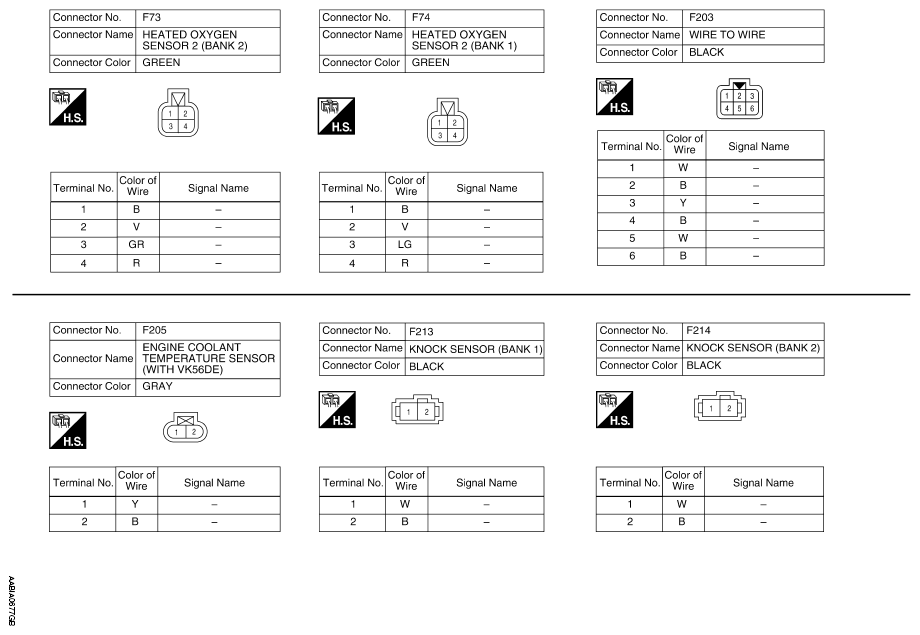

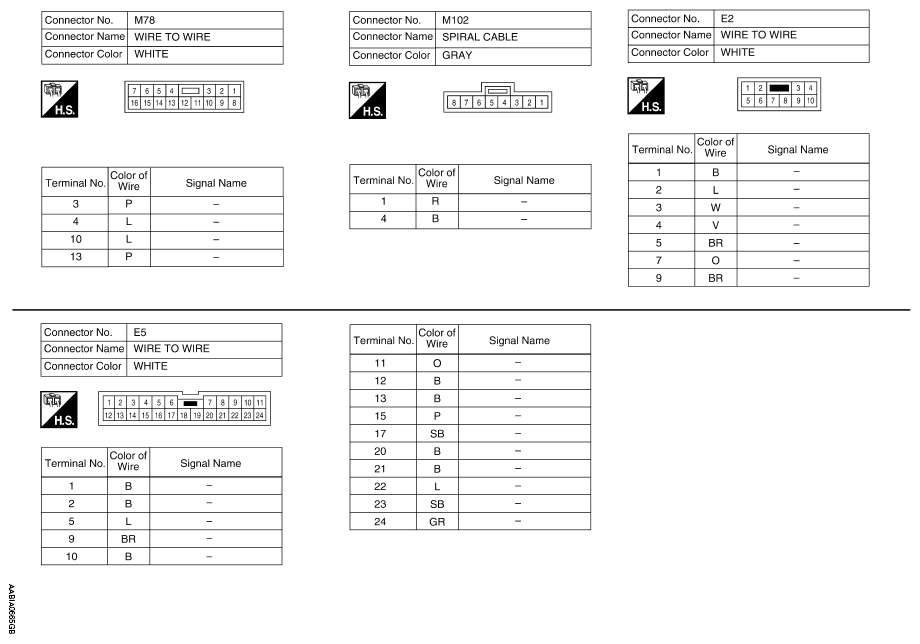

Fig 6: Engine Control System (VK56DE) Connector End Views (6 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

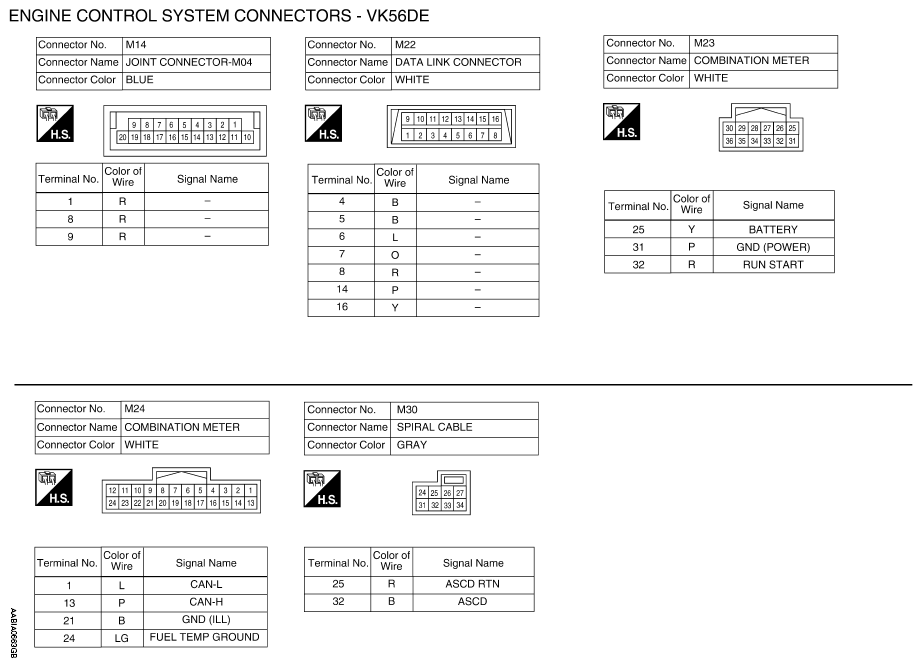

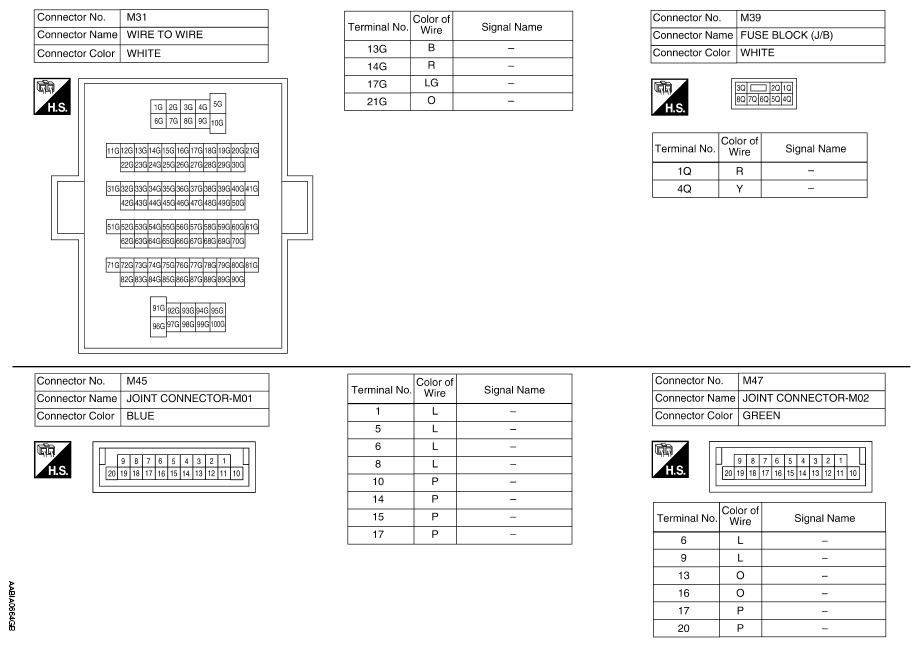

Fig 7: Engine Control System (VK56DE) Connector End Views (7 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

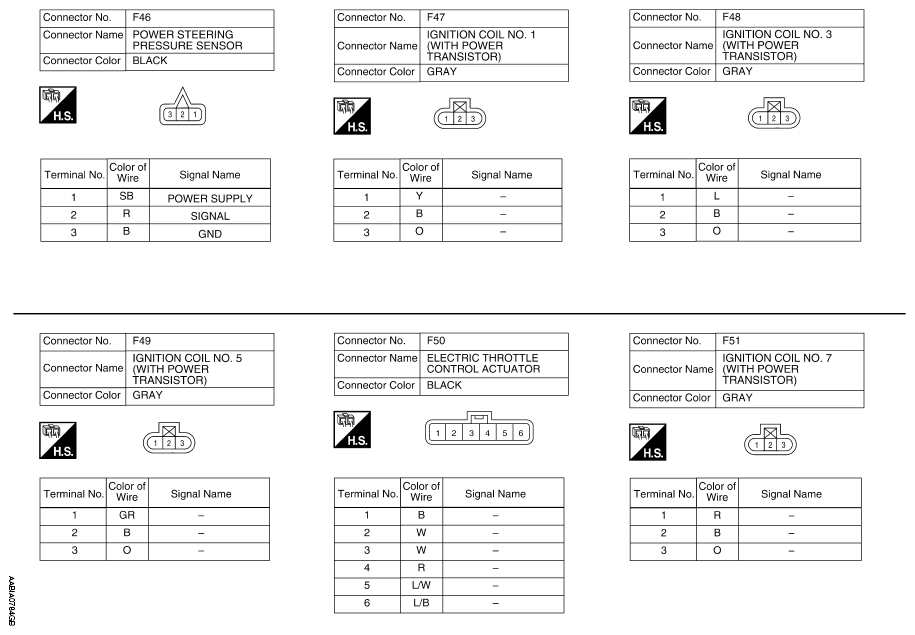

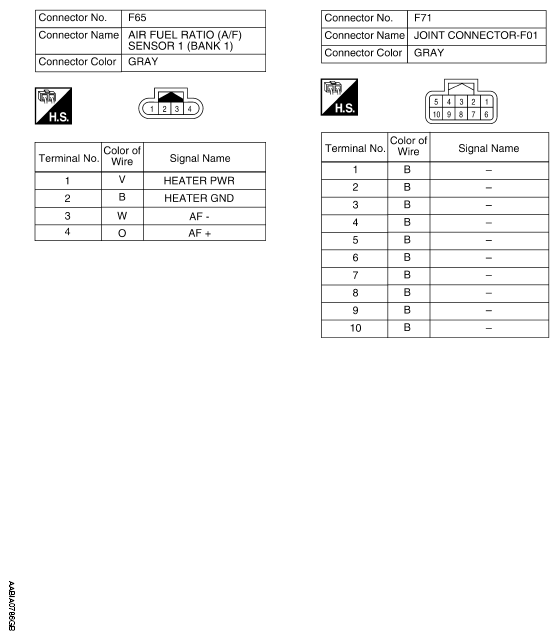

Fig 8: Engine Control System (VK56DE) Connector End Views (8 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System (VK56DE) Connector End Views (9 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Control System (VK56DE) Connector End Views (10 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Engine Control System (VK56DE) Connector End Views (11 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Engine Control System (VK56DE) Connector End Views (12 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System (VK56DE) Connector End Views (13 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System (VK56DE) Connector End Views (14 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Engine Control System (VK56DE) Connector End Views (15 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System (VK56DE) Connector End Views (16 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Engine Control System (VK56DE) Connector End Views (17 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.
