Nissan-Datsun
>>
2013
>>
Pathfinder SL, FWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Unit Removal And Installation
>>
Steering Angle Sensor
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

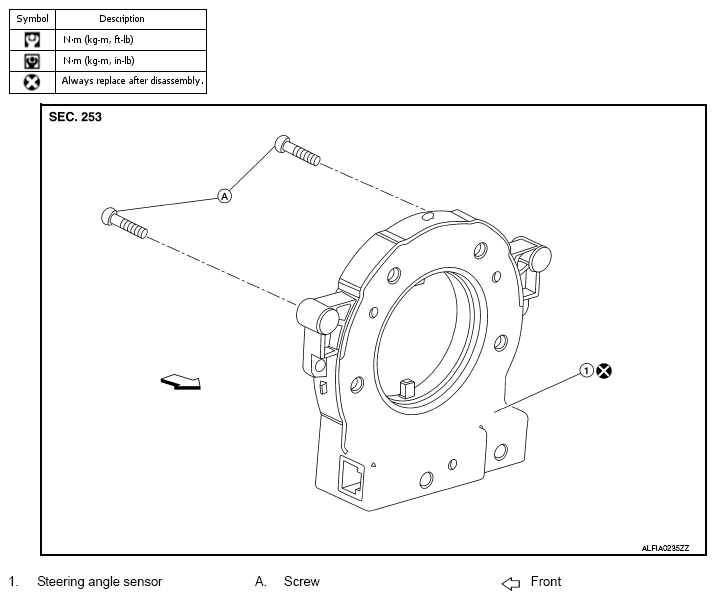

Fig 1: Identifying Steering Angle Sensor And Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
