Exploded View - Front Wheel Sensor

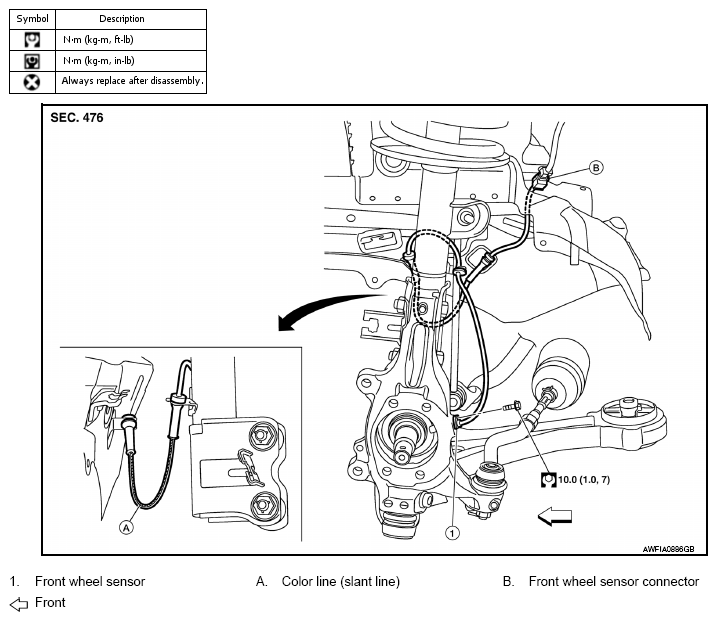

Fig 1: Front Wheel Sensor, Connector And Color Line With Torque Specification
G08945488Courtesy of NISSAN NORTH AMERICA, INC.
