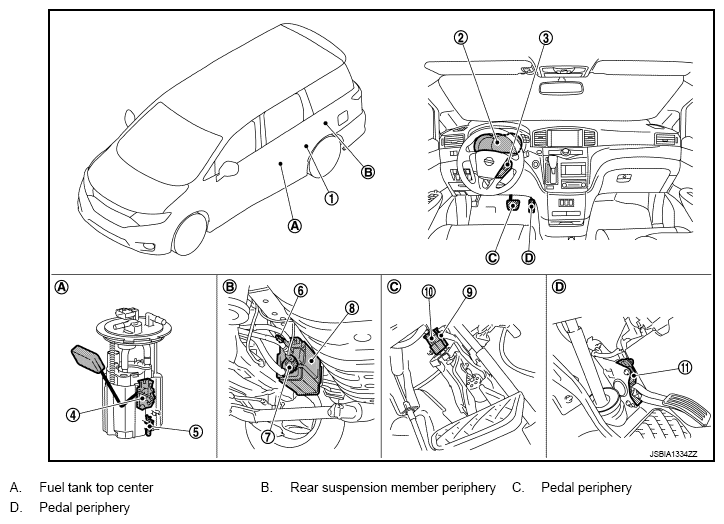

ENGINE CONTROL SYSTEM: Component Parts Location: Body
| No. | Component | Function | |
|---|---|---|---|
| 1. | Fuel pump control module (FPCM) | "FUEL PUMP CONTROL MODULE (FPCM) " | |
| 2. | Combination meter | Malfunction indicator lamp (MIL) | "MALFUNCTION INDICATOR LAMP (MIL) " |
| Information display | The operation mode of the ASCD is indicated on the information display in the combination meter. ECM transmits the status signal to the combination meter via CAN communication according to ASCD operation. |
||
| 3. | ASCD steering switch | "ASCD STEERING SWITCH " | |
| 4. | Fuel level sensor unit and fuel pump | "FUEL LEVEL SENSOR UNIT AND FUEL PUMP " Refer to "EXPLODED VIEW " for detailed installation location. |
|
| 5. | Fuel tank temperature sensor | "FUEL TANK TEMPERATURE SENSOR " | |
| 6. | EVAP canister vent control valve | "EVAP CANISTER VENT CONTROL VALVE " | |
| 7. | EVAP control system pressure sensor | "EVAP CONTROL SYSTEM PRESSURE SENSOR " | |
| 8. | EVAP canister | "EVAP CANISTER VENT CONTROL VALVE " | |
| 9. | Stop lamp switch | "STOP LAMP SWITCH & ASCD BRAKE SWITCH " | |
| 10. | ASCD brake switch | ||
| 11. | Accelerator pedal position sensor | "ACCELERATOR PEDAL POSITION SENSOR " | |
