Valve Operation (Abs Function And EBD Function): Notes

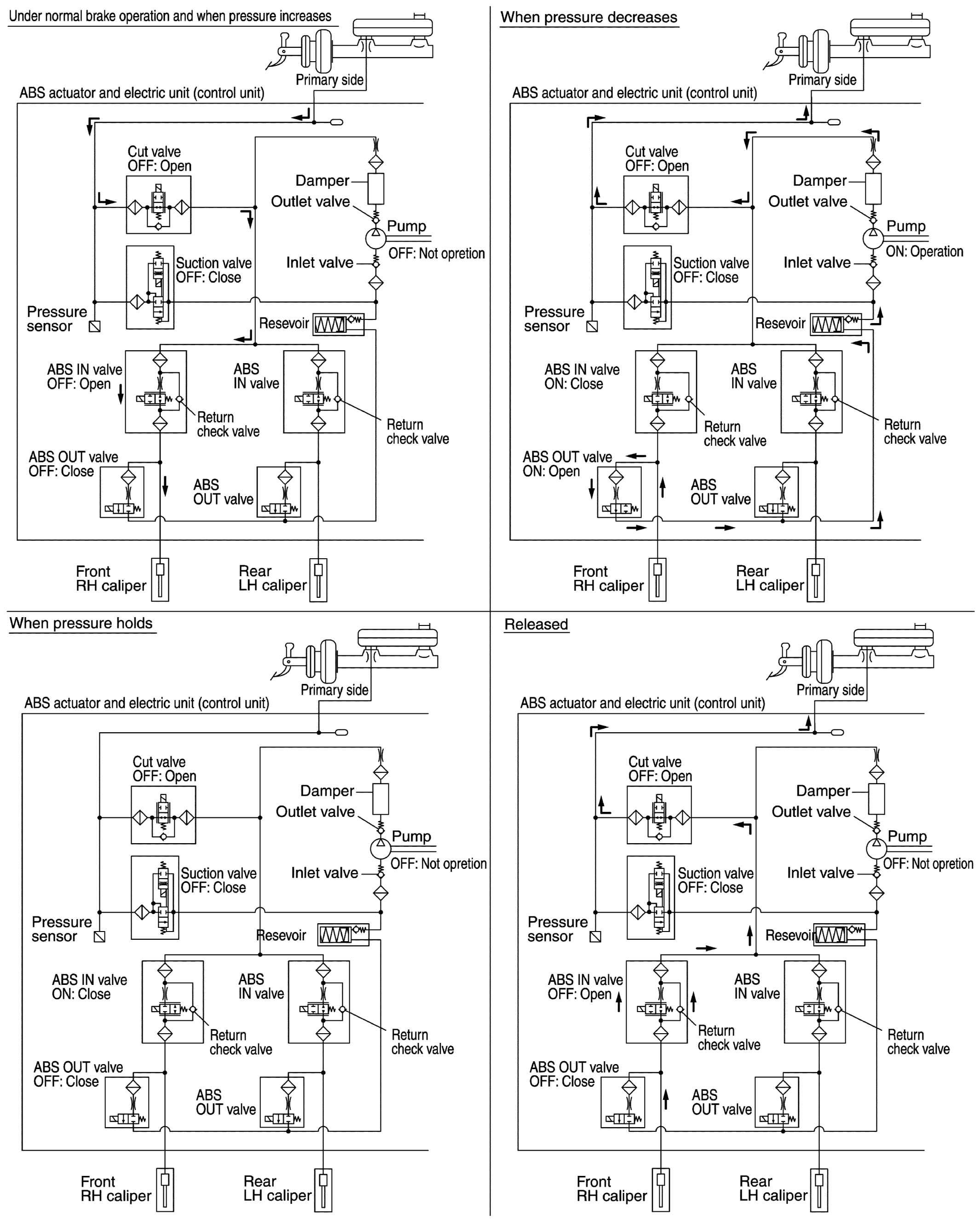

Fig 1: Valve Operation Diagram (ABS And EBD Function)

Courtesy of NISSAN NORTH AMERICA, INC.

The following descriptions explains the control of front brake right side, as an example.
