Rogue S, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (Introduction)
>>
System Description
>>
Evaporative Emission System
>>
System Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram: Notes

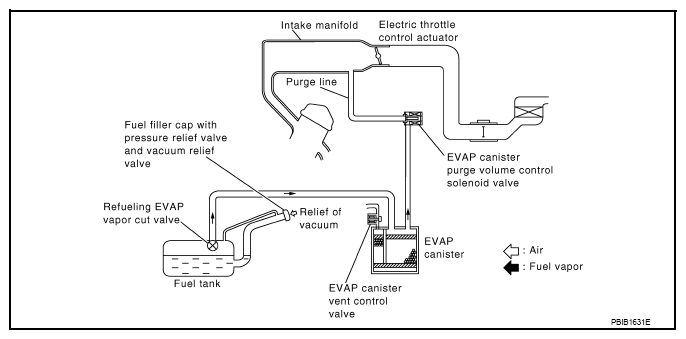

Fig 1: Evaporative Emission System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
