Component Parts Location

Fig 1: Intake Valve Timing Control Components Location (1 Of 12)
G08986795Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intake Valve Timing Control Components Location (2 Of 12)
G08986796Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intake Valve Timing Control Components Location (3 Of 12)
G08986797Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Intake Valve Timing Control Components Location (4 Of 12)
G08986798Courtesy of NISSAN NORTH AMERICA, INC.

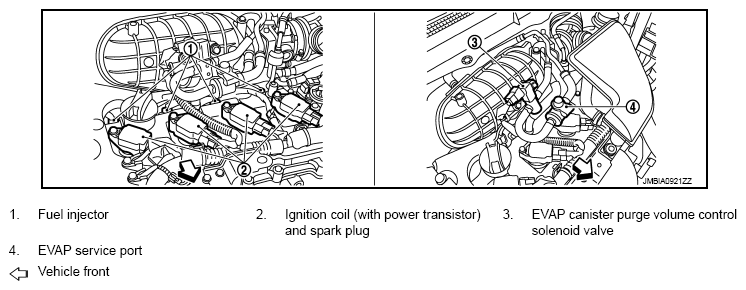

Fig 5: Intake Valve Timing Control Components Location (5 Of 12)
G08986799Courtesy of NISSAN NORTH AMERICA, INC.

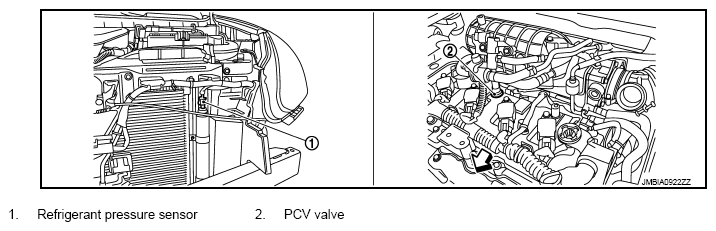

Fig 6: Intake Valve Timing Control Components Location (6 Of 12)
G08986800Courtesy of NISSAN NORTH AMERICA, INC.

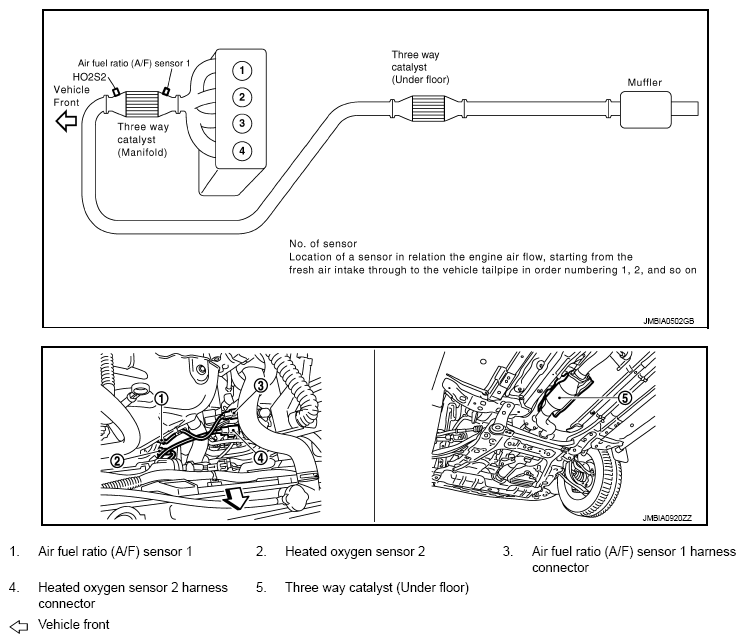

Fig 7: Intake Valve Timing Control Components Location (7 Of 12)
G08986801Courtesy of NISSAN NORTH AMERICA, INC.

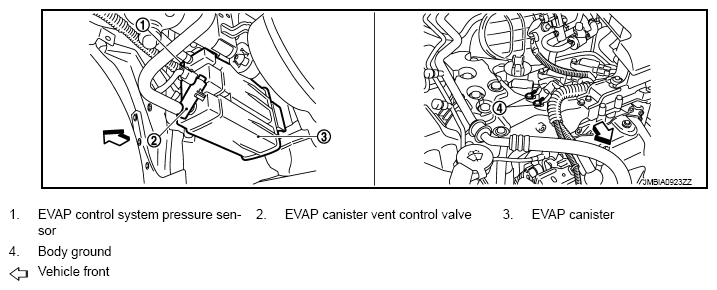

Fig 8: Intake Valve Timing Control Components Location (8 Of 12)
G08986802Courtesy of NISSAN NORTH AMERICA, INC.

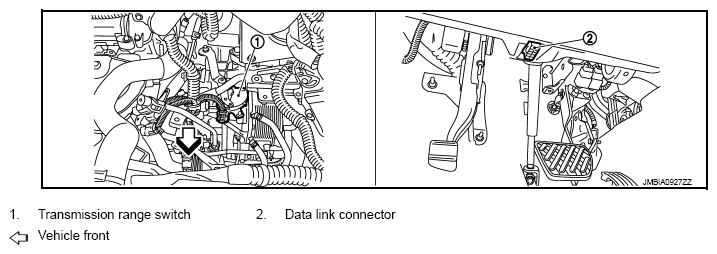

Fig 9: Intake Valve Timing Control Components Location (9 Of 12)
G08986803Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Intake Valve Timing Control Components Location (10 Of 12)
G08986804Courtesy of NISSAN NORTH AMERICA, INC.

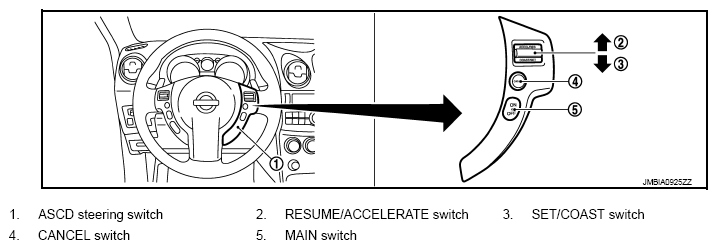

Fig 11: Intake Valve Timing Control Components Location (11 Of 12)
G08986805Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Intake Valve Timing Control Components Location (12 Of 12)
G08986806Courtesy of NISSAN NORTH AMERICA, INC.
